Installation Guide
Elise3
2

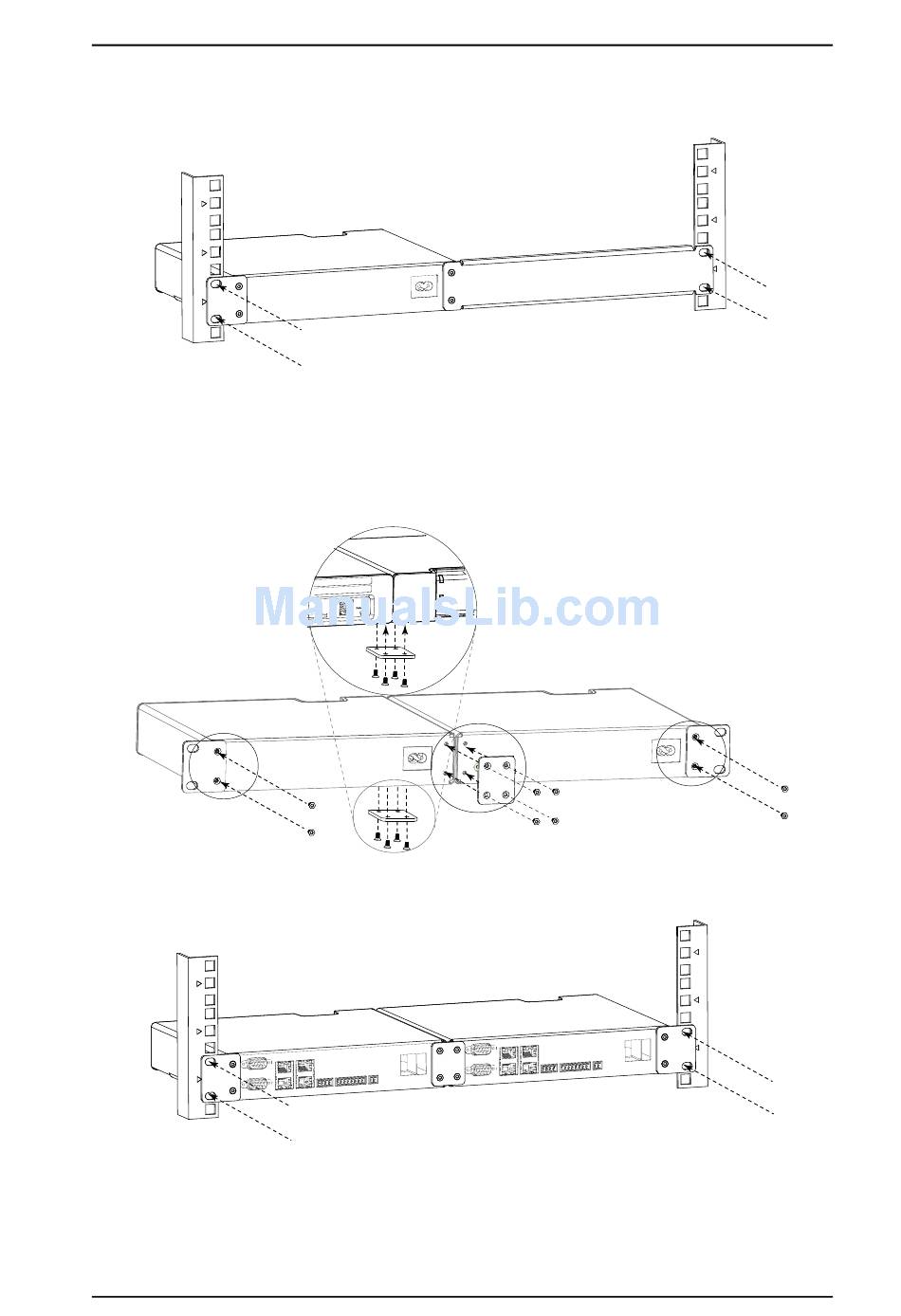

Fasten the assembly brackets in the rack as shown in the figure below (screws not
included).
Rear mounted double
Rear mounting of double Elise3 require the reverse 19" rack kit.
1
Use the supplied assembly brackets and mount the two Elise3 together, both on the
rear side and on the bottom side as shown in figure below.
2
Use the two small reverse assembly brackets and fasten one on the right rear side
and the other on the left rear side.
22 November 2013 / Ver. G
4. Installation and Configuration
TD 92679EN
14
