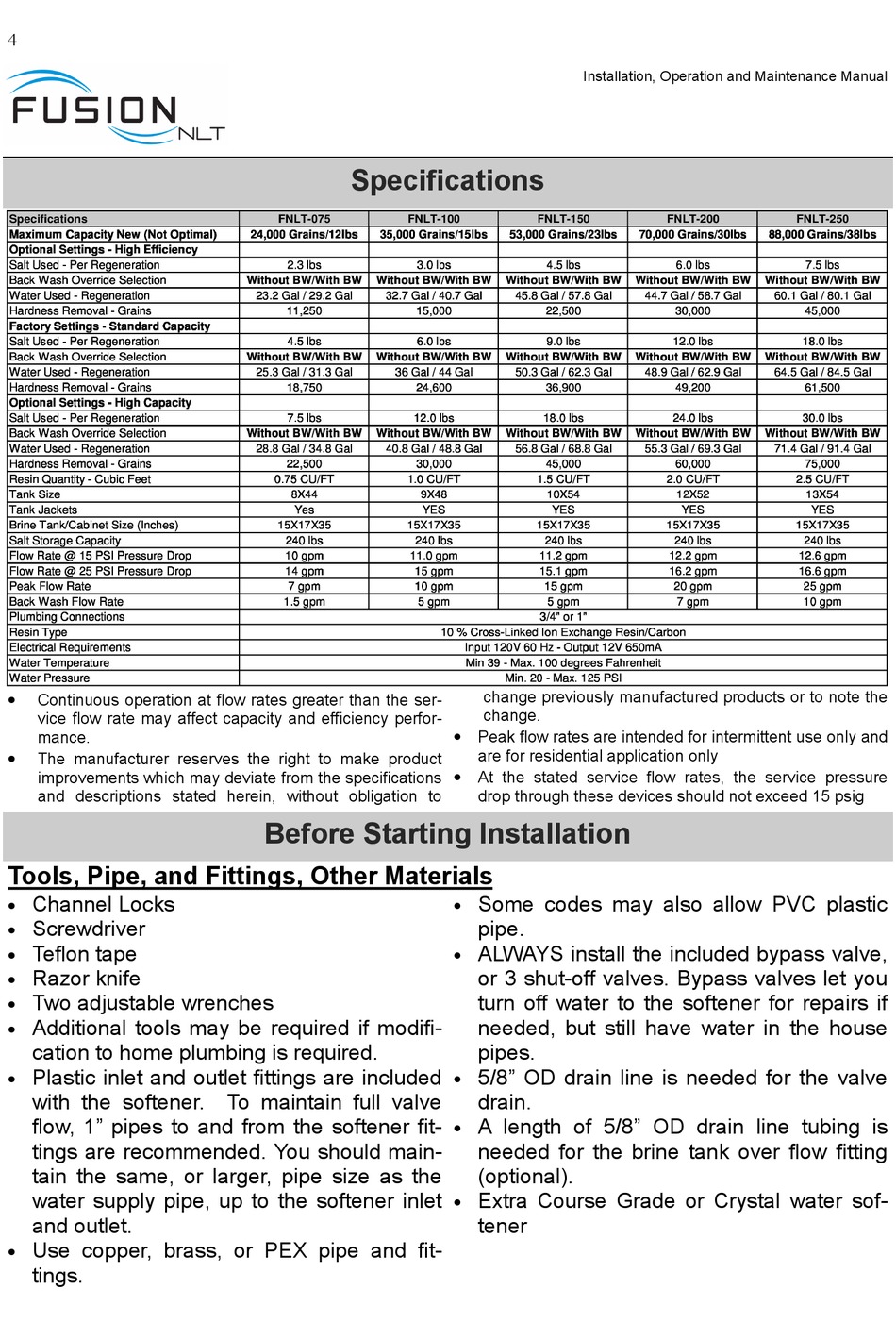

Specifications; Before Starting Installation - US Water Systems Fusion Owner's Manual

4

Continuous operation at flow rates greater than the ser-
vice flow rate may affect capacity and efficiency perfor-
mance.

The manufacturer reserves the right to make product
improvements which may deviate from the specifications
and descriptions stated herein, without obligation to
Tools, Pipe, and Fittings, Other Materials
Channel Locks

Screwdriver

Teflon tape

Razor knife

Two adjustable wrenches

Additional tools may be required if modifi-

cation to home plumbing is required.
Plastic inlet and outlet fittings are included

with the softener. To maintain full valve
flow, 1" pipes to and from the softener fit-
tings are recommended. You should main-
tain the same, or larger, pipe size as the
water supply pipe, up to the softener inlet
and outlet.
Use copper, brass, or PEX pipe and fit-

tings.

Specifications

Before Starting Installation

Installation, Operation and Maintenance Manual
change previously manufactured products or to note the
change.

Peak flow rates are intended for intermittent use only and
are for residential application only

At the stated service flow rates, the service pressure
drop through these devices should not exceed 15 psig
Some codes may also allow PVC plastic

pipe.
ALWAYS install the included bypass valve,

or 3 shut-off valves. Bypass valves let you
turn off water to the softener for repairs if
needed, but still have water in the house
pipes.
5/8" OD drain line is needed for the valve

drain.
A length of 5/8" OD drain line tubing is

needed for the brine tank over flow fitting
(optional).
Extra Course Grade or Crystal water sof-

tener
