Installation, Operation and Maintenance Manual

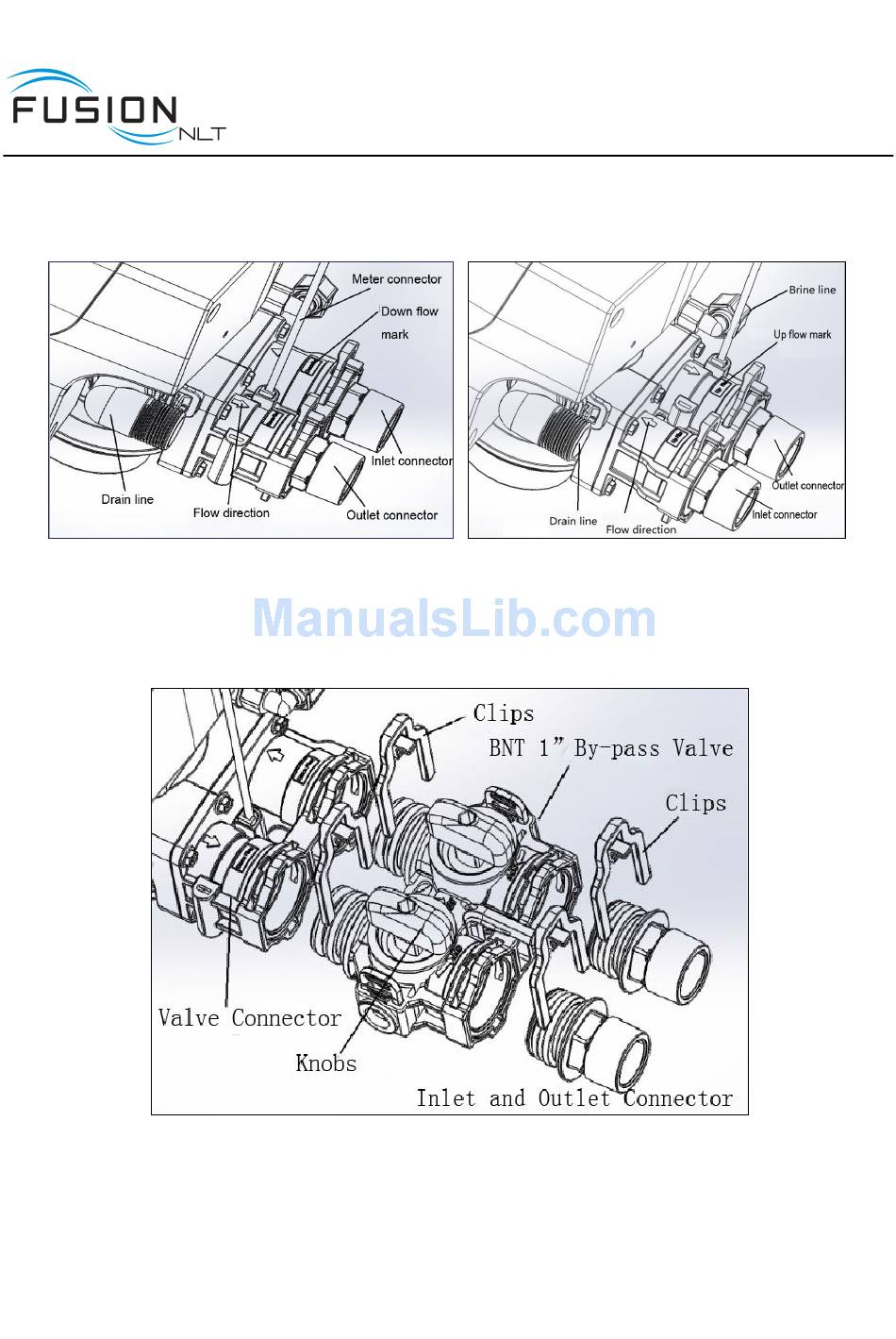

Note: As the picture shows, connect the inlet and outlet according to
the arrow direction which can be seen from the top view of the control
valve.
The installation of 1" integrated bypass valve：
If the 1" integrated bypass is used instead of a three manual valve, the instal-
lation method is shown in the picture below.
