Visit us online at
www.uswatersystems.com

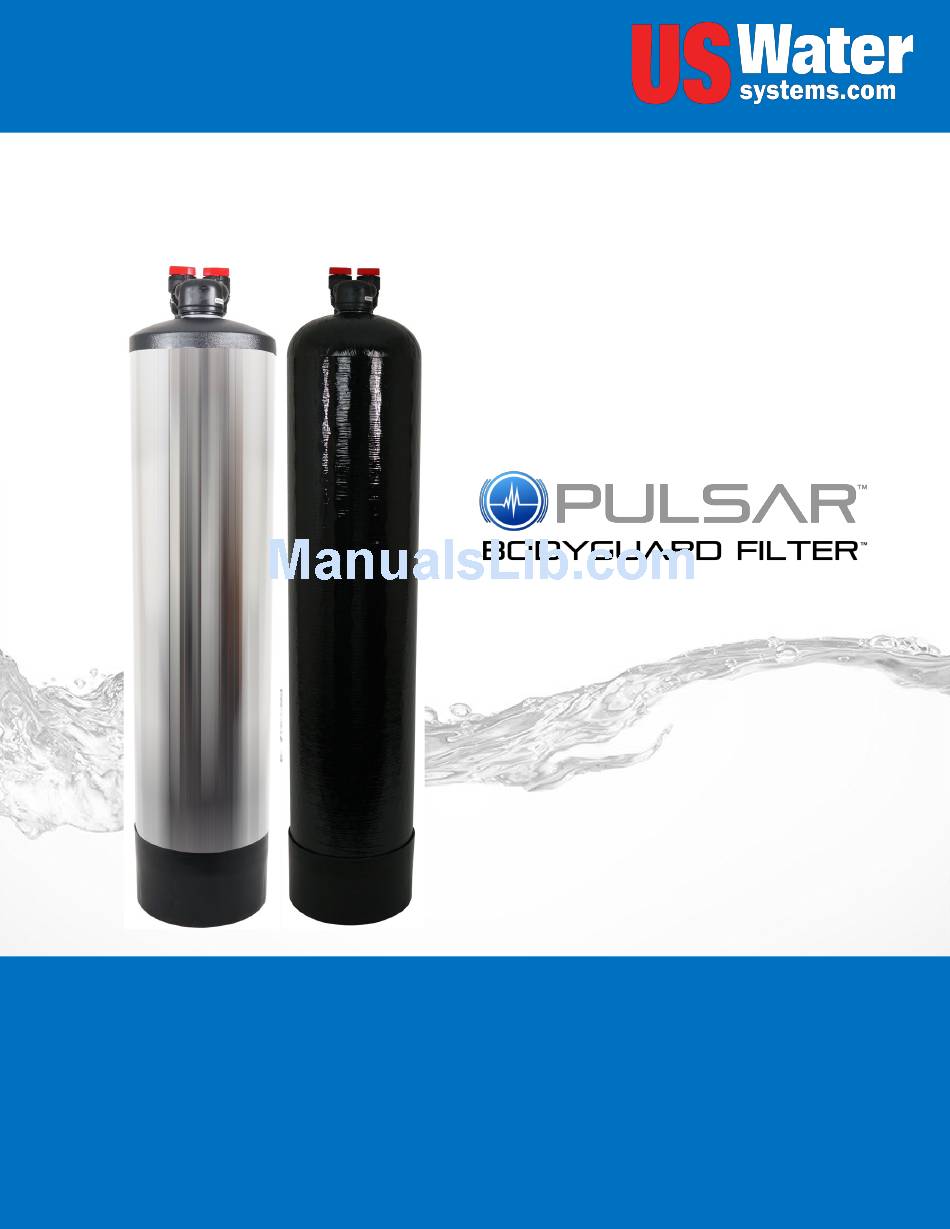

Pulsar Bodyguard Whole House Chemical
Owners Manual
Models:
117-PBG -12, 117-PBG -25
Visit us online at www.USWaterSystems.com
REVISION #
1.2
REVISION DATE
August 26, 2017
US Water Pulsar Bodyguard
Removal Filter
Give us a call at: 1-800-608-8792
US Water Systems Corporate Office
1209 Country Club Road
Indianapolis, IN 46234
Advertisement
Table of Contents
Related Manuals for US Water Systems Pulsar Bodyguard 117-PBG-12
Summary of Contents for US Water Systems Pulsar Bodyguard 117-PBG-12
- Page 1 Pulsar Bodyguard Whole House Chemical Removal Filter Owners Manual Models: 117-PBG -12, 117-PBG -25 Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792 US Water Systems Corporate Office 1209 Country Club Road Indianapolis, IN 46234 REVISION # REVISION DATE August 26, 2017...
-
Page 2: Unpacking Inspection
Be sure to check the entire system for any shipping damage or parts loss. Also note damage to the shipping cartons. Contact US Water Systems at 1-800-608-8792 or visit www.uswatersystems.com/returns to report any shipping damage within 24 hours of deliv- ery. -
Page 3: Equipment Introduction

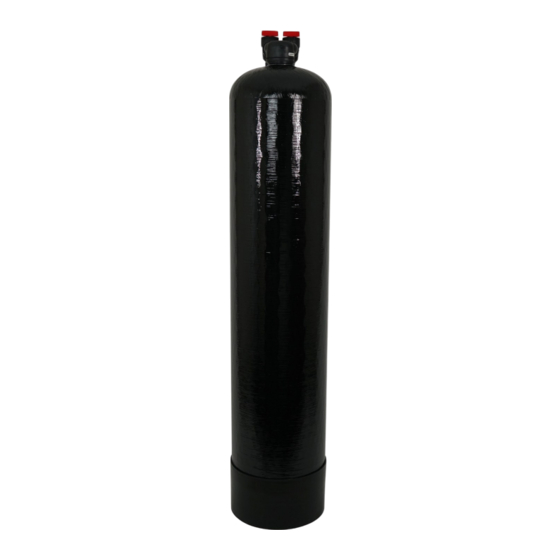

US Water Pulsar Bodyguard Equipment Introduction Pulsar Bodyguard™ Premium Whole House Chemical Removal Filter The Pulsar BodyGuard is a non-electric carbon filter that removes chlorine, chloramines, chemicals, pesticides and a multitude of other contaminants through Prolonged Contact to de- liver the way nature intended it, using all NSF & WQA Certified Components. The BodyGuard delivers clean, great-tasting water from every tap in your home by removing chlorine, chloramines and other chemicals in your tap water. -
Page 4: Equipment Specifications
US Water Pulsar Bodyguard Equipment Specifications Pulsar Bodyguard systems are complete, self-contained, loaded with media and ready to use. A simple inlet and outlet connection is all that is required for installation. Please review operating pressures, temperatures and water chemistry limitations to ensure compatibility. Specifications Inlet/Outlet Connection 1”... -
Page 5: System Overview
US Water Pulsar Bodyguard System Overview Tank Head Pulsar Bodyguard The Carbon Tank will be Carbon about 75-90% full of car- bon. Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792... - Page 6 US Water Pulsar Bodyguard System Overview (Configuration) Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792...
- Page 7 US Water Pulsar Bodyguard Carbon Tank Installation 1. Make sure that the distributor tube (shipped inside the tank) is centered in the indent in the bottom of the tank (use a flashlight if necessary). 2. The distributor tube should be even with the top of the tank. There is an o-ring inside the tank head that seals around the distributor.
- Page 8 US Water Pulsar Bodyguard Carbon Tank Installation The tank should now be filled approximately 70-80%. US Water does not send extra media. 8. Be sure to remove the tape and wipe the top of the tank and distributor tube with a clean cloth. 9.
- Page 9 US Water Pulsar Bodyguard Carbon Tank Installation 13. Assemble the tank connectors using the locking clip and the O-ring. 14. Make sure the O-ring isn’t twisted then lubricate it with silicone grease or corn oil. Hand tighten the nuts on the bypass. NOTE: It is normal for the bypass and connectors to move/float when the nuts are tightened.
- Page 10 US Water Pulsar Bodyguard Pulsar Bodyguard Tank Installation 1. Place the Pulsar Bodyguard tanks in the desired location on a flat level surface. 2. Make sure the tank head is tightened securely by hand tightening—Do Not Use a Wrench. Hand-tight is recommended. 3.
- Page 11 US Water Pulsar Bodyguard Start Up WARNING: FLUSH THE BODY GUARD TANK BEFORE INSTALLING ANY DOWNSTREAM FILTER CARTRIDGE IN THE SYSTEM. 1. Slowly open the supply valve (user supplied) to the Pulsar Bodyguard Carbon Tank or slowly open the Carbon Tank Bypass valves. Allow the tank to fill with water until all the air is purged. Then, flush the carbon tank for 15-20 minutes or until water runs clear.
-
Page 12: Warranty
GENERAL PROVISIONS residential place of installation of this Pulsar Water This warranty does not apply to any commercial or Conditioning System, US WATER SYSTEMS, INC. industrial installations or to any part of the water warrants the following: conditioner which has been subjected to misuse, neglect, alteration or accident;...
