US Water Systems Fusion Owner's Manual

Us water systems 1” fusion nlt water softener

Hide thumbs Also See for Fusion:

Service manual (34 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the Fusion and is the answer not in the manual?

Questions and answers

Jeff Schuetz

January 25, 2025

There is standing water in the brine tank which I have never noticed before. Is this normal?

1 comments:

Mr. Anderson

February 10, 2025

Yes, it is normal to have some standing water in the brine tank of a US Water Systems Fusion. However, excessive water in the brine tank could indicate an issue, such as an improper salt setting or a plugged brine line flow control. If excessive water is present, troubleshooting steps like checking the salt setting and cleaning the brine tank may be necessary.

This answer is automatically generated

Ned Brasher

March 5, 2025

Does power cord go to a 12 volt AC for Fusion NLT

Summary of Contents for US Water Systems Fusion

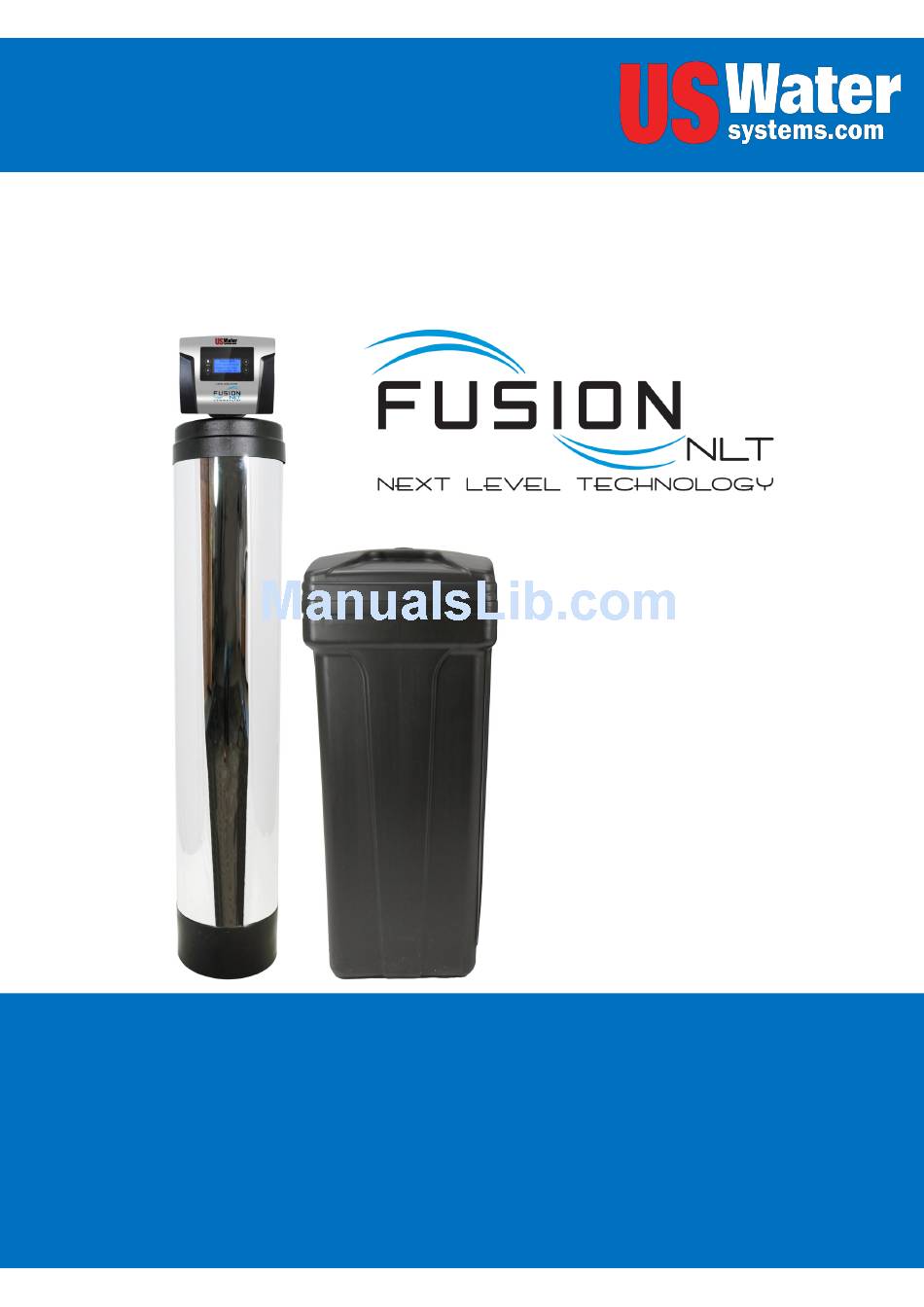

Page 1 Visit us online at www.uswatersystems.com US Water Systems 1” Fusion NLT Water Softener Owners Manual US Water Systems Corporate Office 1209 Country Club Road REVISION # Indianapolis, IN 46234 REVISION DATE June 27, 2017 info@uswatersystems.com www.uswatersystems.com 1-800-608-8792...
Page 2: Table Of Contents
Be sure to check the entire unit for any shipping damage or missing parts. Also note damage to the shipping cartons. Contact US Water Systems at 1-800-608-8792 for all damage and loss claims. A damage claim must be made within 24 hours of receipt of the unit or the claim may not be honored.
Page 3: Proper Installation
Properly ground to conform with all gov- er system with a chlorine reducing media.  erning codes and ordinances. Contact US Water Systems for Chlorine Use only lead-free solder and flux for all and Chloramine removal equipment.  sweat-solder connections, as required by WARNING: Discard all unused parts ...
Page 4: Specifications
Installation, Operation and Maintenance Manual Specifications  change previously manufactured products or to note the Continuous operation at flow rates greater than the ser- change. vice flow rate may affect capacity and efficiency perfor-  mance. Peak flow rates are intended for intermittent use only and ...
Page 5 Installation, Operation and Maintenance Manual How the Softener Works The principle behind water softening is simple chemistry. A water softener contains resin beads which hold electrically charged ions. When hard water passes through the softener, calcium and magnesium ions are attracted to the charged resin beads. The result is remov- al of calcium and magnesium ions which produces soft water.
Page 6: Tank Preparation
EXISTING PLUMBING: Condition of existing plumbing should be free from lime and iron buildup. Pip- ing that is built up heavily with lime and/or iron should be replaced. LOCATION OF FUSION TANK AND DRAIN: The Fusion tank should be located close to a drain to pre- vent air breaks and back flow.
Page 7 It is recommended that a dust mask and safety goggles be worn to prevent possi- ble injury. A shop vacuum can be held in the area to help control the dust created by the filling process. Pour all the resin that was shipped in the tank. US Water Systems DOES NOT ship extra resin.
Page 8 Installation, Operation and Maintenance Manual 6. Lubricate the distributor O-ring and the tank O-ring on the bottom of the control valve. Then install the upper basket on the bottom of the valve by lining up the tabs then turning the basket clockwise to lock it in place. Place the upper basket over the distributor tube and push the valve on the tank.
Page 9 Installation, Operation and Maintenance Manual 7. Lubricate the O-rings on the bypass valve and 1” threaded connectors. Remove the red clips and install the bypass on the control valve. Re-install the red clips once the bypass is in place. Put the bypass valves in the bypass position (picture shows “Service Posi- tion”, see page 18 for valve position) 8.
Page 10 Installation, Operation and Maintenance Manual Note: As the picture shows, connect the inlet and outlet according to the arrow direction which can be seen from the top view of the control valve. The installation of 1“ integrated bypass valve： If the 1” integrated bypass is used instead of a three manual valve, the instal- lation method is shown in the picture below.
Page 11 Installation, Operation and Maintenance Manual 9. Install the Fusion system close to the water source. BE SURE to install the Fusion sys- tem directly after the well pressure tank. It is a good practice to add a sediment filter pri- or to the Fusion system between the pressure tank and the Fusion tank.
Page 12 Installation, Operation and Maintenance Manual 11. Install the drain line on the 3/4” threaded elbow. This can be a 3/4” solid pipe conveyed to a floor drain, sink drain or stand pipe or the hose barb fitting can be used to install 1/2” drain tubing.
Page 13: Installation Instructions
Installation, Operation and Maintenance Manual Installation Instructions 13. Connect the brine line to the control valve by removing the nut on the brine elbow on the control valve and sliding it on the brine line. Then install the line stiffener in the brine line.
Page 14 Installation, Operation and Maintenance Manual Installation Instructions 15. Connect the brine line to the control valve by pushing it over the hose barb and in- stalling a clamp to hold it in place. 16. Now connect the brine line to the brine tank safety float assembly. Remove the brine tank lid and the brine well cap.
Page 15 Installation, Operation and Maintenance Manual Installation Instructions 17. Slide the nut and sleeves over the brine line. Be sure to install the sleeves properly (see pictures below).
Page 16 Installation, Operation and Maintenance Manual Installation Instructions...
Page 17 Installation, Operation and Maintenance Manual Installation Instructions 18. Be sure brass stiffener is in the brine tubing, then push the tubing in the elbow. Now tighten the nut by hand. Be sure not to cross thread it. Now tighten it an additional full turn with pliers or channel locks.
Page 18 The main display page shows the Date, Time Of Day and Days To Remaining and Total Capacity. The display will alternate between the main page and the dealer information page. Flow Rate: 00.00GPM US Water Systems 20-Dec-2015 12:12AM Indianapolis, IN...
Page 19: Programming
Installation, Operation and Maintenance Manual Programming Press MENU key. Press + or - to change menu option. Press SET to enter. Press + or - to change value. Press SET to accept. Main Menu To get to the “Main Menu”, press the Menu button to get to the “User Menu”. ...
Page 20 Installation, Operation and Maintenance Manual Programming Use the “UP or DOWN” to change the “Mode”. The system is factory set on =====Salt Mode===== “Economy Mode”. This is the mode that is used for city/municipal water  sources. If there is high hardness levels or if the softener is used to remove iron Economy Mode ...
Page 21: Manual Regeneration
Installation, Operation and Maintenance Manual Manual Regeneration Manual Regeneration If the screen is locked, press the “Menu” button for 5 seconds to unlock it.  Date & Time Setting Now press the “Menu” button again to get to the “User Setting”. ...
Page 22: Startup Procedure
Installation, Operation and Maintenance Manual Startup Procedure Be sure the bypass valves are in the “bypass” position (see page 18). Turn on the main water supply and check for leaks in the plumbing. Open a faucet down stream and flush any air from the plumbing. If there are no leaks, move to the next step.
Page 23: Maintenance
Installation, Operation and Maintenance Manual Maintenance Maintenance of the water softener requires very little time or effort but it is essential. Regular maintenance will ensure many years of efficient and trouble-free operation. 1. Periodically make sure the supply pump is performing satisfactorily to ensure sufficient water is available for regeneration.
Page 24 Installation, Operation and Maintenance Manual ： Parts list of Standard connection assembly Part description Part description Big O-ring of Adaptor cou- 89 secure clip pling Adaptor coupling of 89 con- 89 valve connector trol valve Small O-ring of adaptor Connector O-ring coupling...
Page 25 Installation, Operation and Maintenance Manual ： Parts list of control valve body Part description 89 valve body 95 secure clip DLFC assembly：optional 1S、2S、3S、4S、 1#、3#、4#、5#、6# Drain elbow O-ring Drain elbow： 1/2”、3/4” Brine valve injector stem assembly Spacer and seal assembly Three options of piston Down flow piston Up flow piston Filter piston...
Page 26 Installation, Operation and Maintenance Manual Three options of piston Down flow piston Up flow piston Filter piston Piston retainer End plug Piston pin Piston rod End plug retainer End plug retainer screws Brine line adaptor assembly：optional BLFC： 0.7gpm BLFC：0.95gpm Injector assembly：optional grey、purple、red、white、blue、yellow Injector cover O-ring Injector cover...
Page 27 Installation, Operation and Maintenance Manual Three options of piston Down flow piston Up flow piston Filter piston Piston retainer End plug Piston pin Piston rod End plug retainer End plug retainer screws Brine line adaptor assembly：optional BLFC：0.7gpm BLFC：0.95gpm Injector assembly：optional grey、purple、red、white、blue、yellow Injector cover O-ring Injector cover...
Page 28: Limited Lifetime Warranty
Limited Lifetime Warranty For the lifetime of the original purchaser, at the original residential place of installation of this Fusion NLT Water GENERAL PROVISIONS Softening System, US WATER SYSTEMS, INC. warrants the following: This warranty does not apply to any commercial or...
