Visit us online at
www.uswatersystems.com

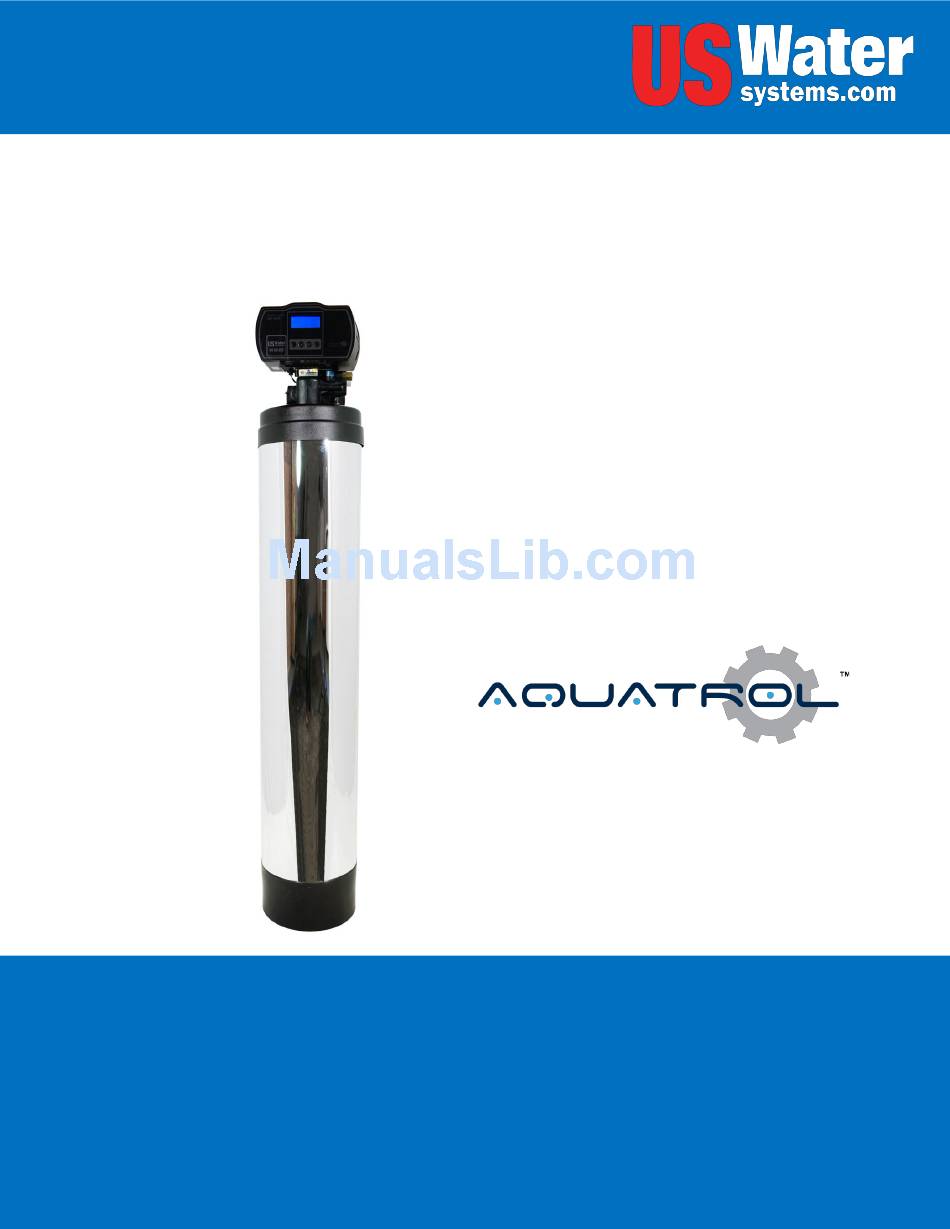

Aquatrol Backwashing
Catalytic Carbon Filter
Owners Manual
Models:
075-AQF-CX
REVISION #
1.0
REVISION DATE
October 11, 2017
US Water Systems, Inc.
1209 Country Club Road
Indianapolis, IN 46234
info@uswatersystems.com
www.uswatersystems.com
US Water Systems Corporate Office
REVISION 1.5, 10-31-14
1209 Country Club Road
Indianapolis, IN 46234
info@uswatersystems.com
www.uswatersystems.com
1-800-608-8792
1-800-608-8792
Advertisement
Table of Contents
Related Manuals for US Water Systems Aquatrol 075-AQF-CX
Summary of Contents for US Water Systems Aquatrol 075-AQF-CX
- Page 1 US Water Systems, Inc. 1209 Country Club Road Indianapolis, IN 46234 Models: 1-800-608-8792 info@uswatersystems.com 075-AQF-CX www.uswatersystems.com US Water Systems Corporate Office REVISION 1.5, 10-31-14 1209 Country Club Road REVISION # Indianapolis, IN 46234 REVISION DATE October 11, 2017 info@uswatersystems.com www.uswatersystems.com...
-
Page 2: Table Of Contents
Be sure to check the entire system for any shipping damage or parts loss. Also note damage to the shipping cartons. Contact US Water Systems at 1-800-608-8792 to report any shipping damage within 24 hours of de- livery. Claims made after 24 hours may not be honored. -
Page 3: Proper Installation
Installation, Operation and Maintenance Manual AQF-CX-100 & AQF-CX-200 Proper Installation This water filtering system must be properly installed and located in accordance with the Installation Instructions before it is used or the warranty will be void. Do not install or store where the system Maximum allowable inlet water pressure is ... -
Page 4: Aquatrol Installation Instructions And Specifications
Installation, Operation and Maintenance Manual AQF-CX-100 & AQF-CX-200 Aquatrol Installation Instructions and Specifications WATER PRESSURE: A minimum of 20 pounds of water pressure is required for re- generation valve to operate effectively. ELECTRICAL FACILITIES: An uninterrupted alternating current (A/C) supply is required. - Page 5 Installation, Operation and Maintenance Manual AQF-CX-100 & AQF-CX-200 Aquatrol Tank and Control Valve Preparation 2) Lubricate the distributor O-ring and the tank O-ring. Then install the upper basket (may look different than the pictures below) on the bottom of the valve by lining up the tabs then turning the basket to lock it in place.
-
Page 6: Aquatrol Carbon Tank Installation Instructions
Installation, Operation and Maintenance Manual AQF-CX-100 & AQF-CX-200 Aquatrol Carbon Tank Installation Instructions Any solder joints being soldered near the valve must be done before connecting any piping to the valves. Always leave at least 6" (152 mm) between the control valve and joints being soldered when soldering pipes that are connected to the valves. - Page 7 Installation, Operation and Maintenance Manual AQF-CX-100 & AQF-CX-200 Aquatrol Carbon Tank Installation Instructions 2. Install the drain line on the control valve. Be sure to use a hose clamp to secure the drain line to the barbed fitting on the control valve.
-
Page 8: Control Valve Keypad Functions
Installation, Operation and Maintenance Manual AQF-CX-100 & AQF-CX-200 Key Pad Configuration This function is to enter the programing mode “Settings” required at the time of installation. This button serves as the “Save” button. (Curved Arrow) This function is to initiate a regeneration. This “Cycle”... -
Page 9: Control Valve Programming
Installation, Operation and Maintenance Manual AQF-CX-100 & AQF-CX-200 Aquatrol Control Valve Programming Instructions First Step-Setting Time of Day Press Simultaneously 1 1 : 3 0 Default setting 12:00 (24 hours) S E T - Press Setting Button and Up Button simultaneously to enter into Programing Mode. - Page 10 Aquatrol Control Valve Programming Instructions Second Step - Setting the Regeneration Mode 1 1 : 3 0 S E T - 2 T Y P E Default setting is “Timer” Flashing Choose Between Time, Meter Immediate or Meter Delayed 1 1 : 3 0 Timer This mode will Not show water...
- Page 11 Aquatrol Control Valve Programming Instructions Third Step - Regeneration Time and Hours Override 1 1 : 3 0 S e t - 4 t - h Flashing Meter Delay Modes Default: 2:00 a.m. - OFF Hours Override range: Every 24 hours (Set to 168 or to the interval dis- cussed with your Certified Water Specialist)
- Page 12 Aquatrol Control Valve Programming Instructions Fourth Step - Setting the Back Wash Time 1 1 : 3 0 S e t - 5 - b w - Flashing Set the Time Default setting is 015 1 1 : 3 0 0 1 5 - b w Use UP or DOWN...
- Page 13 Aquatrol Control Valve Programming Instructions Fifth Step - Setting the Brine Time 1 1 : 3 0 S e t - 6 - b d - Flashing Set the Time Default setting is 060 1 1 : 3 0 0 6 0 - b d Use UP or DOWN Buttons to change...
- Page 14 Aquatrol Control Valve Programming Instructions Seventh Step - Setting the Rapid Rinse Time 1 1 : 3 0 S e t - 7 - r r - Flashing Set the Time Default setting is 010 1 1 : 3 0 0 1 0 - r r Use UP or DOWN...
- Page 15 Aquatrol Control Valve Programming Instructions Eighth Step - Setting the Brine Fill Time 1 1 : 3 0 S e t - 8 - b f - Flashing Set the Time Default setting is 012 1 1 : 3 0 0 1 2 - b f Use UP or DOWN...
-
Page 16: System Start-Up Instructions
Installation, Operation and Maintenance Manual AQF-CX-100 & AQF-CX-200 System Start-up Instructions 1. Once all the plumbing has been connected, open the main water shutoff valve. 2. Plug the Aquatrol valve into an approved power source that is constantly energized. 3. Once the valve has settled on the time of day, start an Immediate Manual Regeneration (See page 8). -
Page 17: Limited Lifetime Warranty
GENERAL PROVISIONS residential place of installation of this Aquatrol Water This warranty does not apply to any commercial or Conditioning System, US WATER SYSTEMS, INC. industrial installations or to any part of the water warrants the following: conditioner which has been subjected to misuse, neglect, alteration or accident;...
