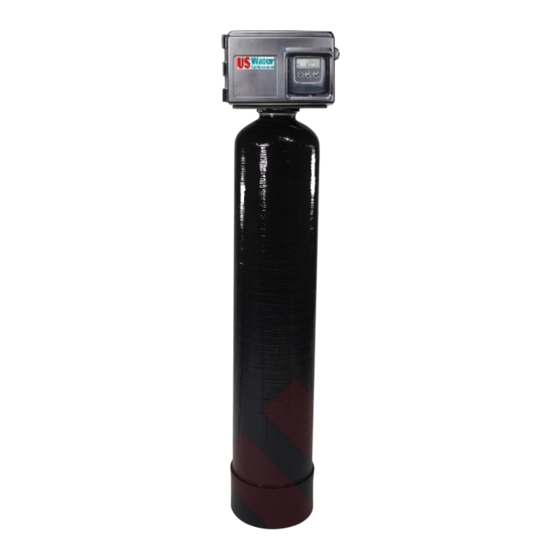

Infusion Residential Iron, Manganese &
Sulfur Removal Systems
Chemical Free, Iron, Manganese & Sulfur Removal
Owners Manual
Models:
169-ISF-1, 169-ISF-2, 169-ISF-3, 169-ISF-4
REVISION #
1.5
REVISION DATE: June 13, 2016
US Water Systems Corporate Office
1209 Country Club Road
Indianapolis, IN 46234
1-800-608-8792
Advertisement
Table of Contents
Related Manuals for US Water Systems 169-ISF-1
Summary of Contents for US Water Systems 169-ISF-1
- Page 1 Infusion Residential Iron, Manganese & Sulfur Removal Systems Chemical Free, Iron, Manganese & Sulfur Removal Owners Manual Models: 169-ISF-1, 169-ISF-2, 169-ISF-3, 169-ISF-4 US Water Systems Corporate Office 1209 Country Club Road Indianapolis, IN 46234 REVISION # 1-800-608-8792 REVISION DATE: June 13, 2016...
-
Page 2: Unpacking Inspection
Be sure to check the entire system for any shipping damage or parts loss. Also note damage to the shipping cartons. Contact US Water Systems at 1-800-608-8792 to report any ship- ping damage within 24 hours of delivery. Claims made after 24 hours may not be honored. -
Page 3: Proper Installation
Proper Installation This water conditioning system must be properly installed and located in accordance with the Installation Instructions before it is used or the warranty will be void. Do not install or store where it will be ex- posed to temperatures below freezing or ex- 32°... - Page 4 US Water inFusion Water Conditioner | 169-ISF US Water inFusion Systems Dimensions inFusion Iron Removal Systems Model Tank Size 169-ISF-1 10” X 54” 63 1/2” 54 1/2” 10” 169-ISF-2 12” X 52” 61 3/4” 52 3/4” 12” 169-ISF-3 13” X 54”...
-
Page 5: Specifications
Specifications US Water inFusion Water Conditioning Systems Specifications 169-ISF-1 169-ISF-2 169-ISF-3 169-ISF-4 Carbon Capacity Tank Size 10X54 12X52 13X54 16X65 Service Flow Rates Normal 6 GPM 8 GPM 12 GPM 15 GPM Peak 8 GPM 10 GPM 15 GPM 20 GPM Backwash Flow Rate 5.0 GPM... - Page 6 US Water inFusion Water Conditioner | 169-ISF How The Water Conditioner Works The Infusion system provides iron, sulfur and manganese removal throughout the home. The Infusion system should be installed at the point of entry to treat your entire home, both hot and cold water.
-
Page 7: System Overview
System Overview... -
Page 8: System Preparation
US Water inFusion Water Conditioner | 169-ISF System Preparation WATER PRESSURE: A minimum of 20 pounds of water pressure is required for the backwashing valve to operate effectively. ELECTRICAL FACILITIES: An uninterrupted alternating current (A/C) supply is required. Please make sure the voltage supply is compatible with the unit before installation. - Page 9 System Preparation Place a piece of duct tape over the riser tube so no resin enters the riser while filling. Use the Blue Funnel provided, to pour the media into the tank. Each unit is shipped with gravel. Pour the GRAVEL in FIRST. Pour it evenly around the hole to ensure it is well distributed in the tank and pour slow enough, to keep from plugging the hole.
- Page 10 US Water inFusion Water Conditioner | 169-ISF System Preparation 6) Lubricate both O-rings on the bottom of the control valve (center and outer). Install the upper basket (appearance can vary) on the bottom of the valve by lining up the tabs then turning the basket clockwise to lock it in place.
-
Page 11: Installation Instructions
Installation Instructions 1. If the hot water tank is electric, turn off the power to it to avoid damage to the element in the tank. 2. Turn the power off to the well pump and then shut off the main water shut off valve. Go to the faucet, (preferably on the lowest floor of the house) turn on the cold water until all pressure is relieved and the flow of water stops. - Page 12 US Water inFusion Water Conditioner | 169-ISF Installation Instructions 5. Teflon tape is the only sealant to be used on the drain fitting. Attach the drain line to the unit and to the drain for the home following all local plumbing codes. Larger systems with brass drain line connections are 3/4”...
-
Page 13: Start-Up Instructions
Installation Instructions Slowly place the by-pass in service position in 1/8 turn increments and let water flow into the mineral tank. When water flow stops, slowly open a cold water tap nearby and let run until the air is purged from the unit. Once the air is purged and the water is clear, fully open the bypass to the service position. -
Page 14: Timer Features
US Water inFusion Water Conditioner | 169-ISF Timer Features Parameter Data Display Display Indicator Error/ Information Icon Flow Indicator S e r v i c e I c o n x1000 Indicator P r o g r a m m i n g I c o n Extra Cycle D o w n... - Page 15 Programming Set the clock to 12:01PM. This can be done by pressing and holding either the “up” or “down” button until the time begins to change. Once the time of day is at 12:01 PM, press the “extra cycle” button to hold the time. Now press and hold the “up” and “down”...
-
Page 16: Initial Regeneration
US Water inFusion Water Conditioner | 169-ISF Programming The next parameter to appear will be “brine draw” (BD). This should be set to 40 minutes. The “up “ and “down” arrows can be used to change this value. Once the value is set, press the “extra cycle”... -
Page 17: Limited Warranty
F.O.B. nearest factory, at no cost, excluding freight and local labor charges, if any. US Water Systems, Inc. shall not be liable for freight, handling or labor charges, or conse- quential damages that occur during transit. -
Page 18: Warranty
General Provisions US Water Systems assumes no responsibility for consequential damage, labor or expense incurred as a result of a defect or for failure to meet the terms of these guarantees because of circumstances beyond our control. In- stallation workmanship failure is not covered under warranty.
