3. Back Panel

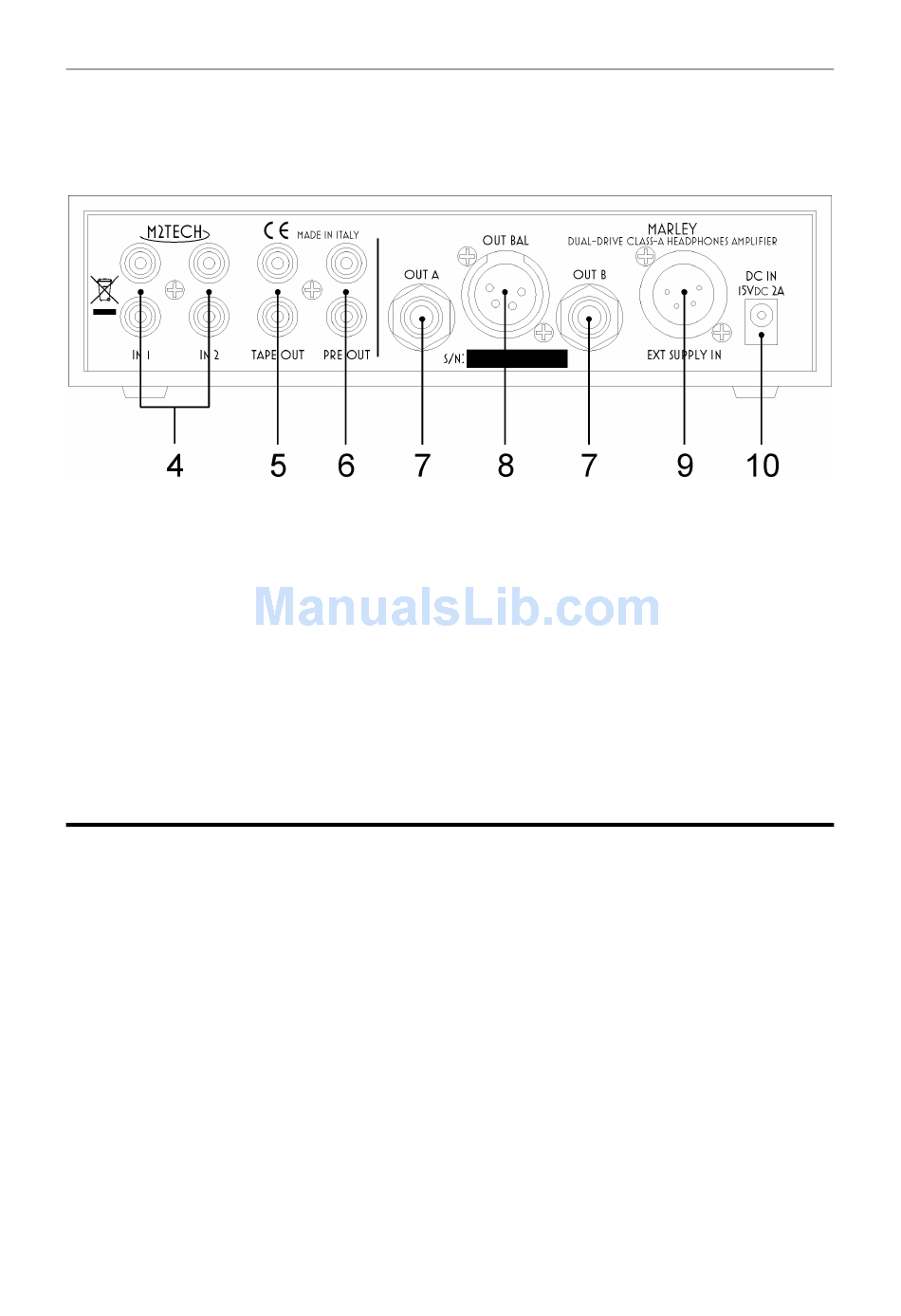

Figure 2
4) Inputs. Connect stereo music sources to these two inputs. Gold-flashed RCA
sockets. Black indicates left channel, red indicates right channel.
5) Tape output. Connect the input of a tape recorder to this output to record the
selected source. Gold-flashed RCA sockets. Black indicates left channel, red
indicates right channel.
6) Preamplifier output. If needed, connect a power amplifier to this output, to use
the MARLEY as a preamplifier. Gold-flashed RCA sockets. Black indicates left channel,
red indicates right channel.
