To confirm the selected balance setting, push the encoder: the balance setting will be
stored and the unit will revert to "idle" status.
On the other hand, if the user changes her/his minds and goes for keeping the
balance previously set, she/he only needs to push the button to the left of the front
panel (Figure 1, 1) or avoid doing any other action on the unit: after a few seconds,
the MARLEY automatically reverts to its "idle" status without changing the balance
setting.

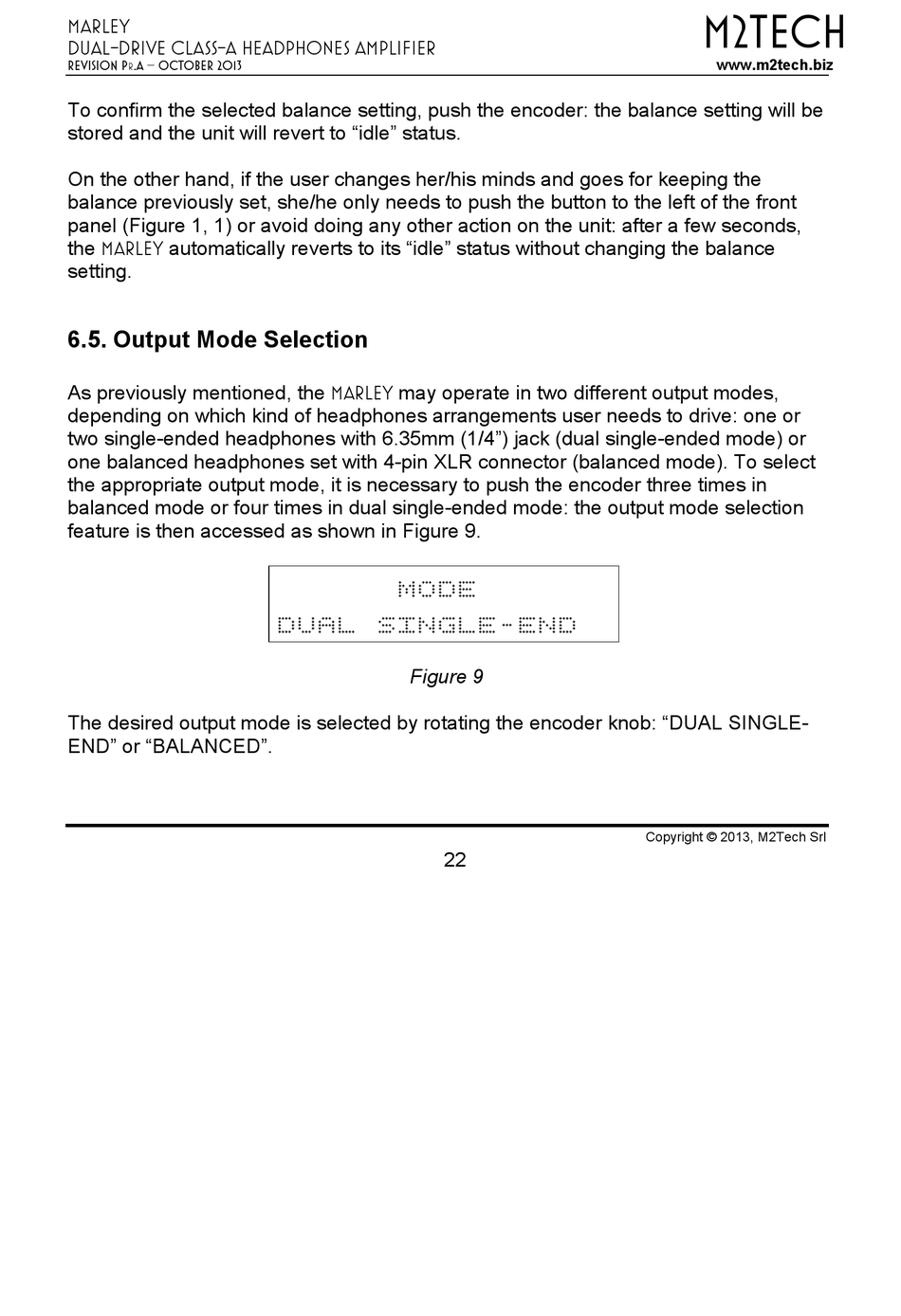

6.5. Output Mode Selection

As previously mentioned, the MARLEY may operate in two different output modes,
depending on which kind of headphones arrangements user needs to drive: one or
two single-ended headphones with 6.35mm (1/4") jack (dual single-ended mode) or
one balanced headphones set with 4-pin XLR connector (balanced mode). To select
the appropriate output mode, it is necessary to push the encoder three times in
balanced mode or four times in dual single-ended mode: the output mode selection
feature is then accessed as shown in Figure 9.
MODE
DUAL SINGLE-END
Figure 9
The desired output mode is selected by rotating the encoder knob: "DUAL SINGLE-
END" or "BALANCED".
