5.5.6

Manual remote control RT PWS 1

5.5.7

Foot-operated remote control RTF 1

ActivArc welding is not possible in combination with the RTF 1 foot-operated remote control.
I
Symbol Meaning
Actuate foot-operated remote control (start welding process)
Operate foot-operated remote control (set welding current according to application)
Release foot-operated remote control (end welding process)
FFr RTF ramp function
on
off
The RTF ramp function can be switched on and off in the machine control sub-menu (see
"Advanced settings > ramp function RTF" chapter).
Item No.: 099-000108-EWM01
Functions
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current at the welding machine
• Pole reversing switch, suitable for machines with PWS function
Functions
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
• Start/stop welding operation
FFr > off
FFr > on
I
start
Welding current runs in a ramp function at the specified main current
Welding current goes immediately to the specified main current
Functional characteristics

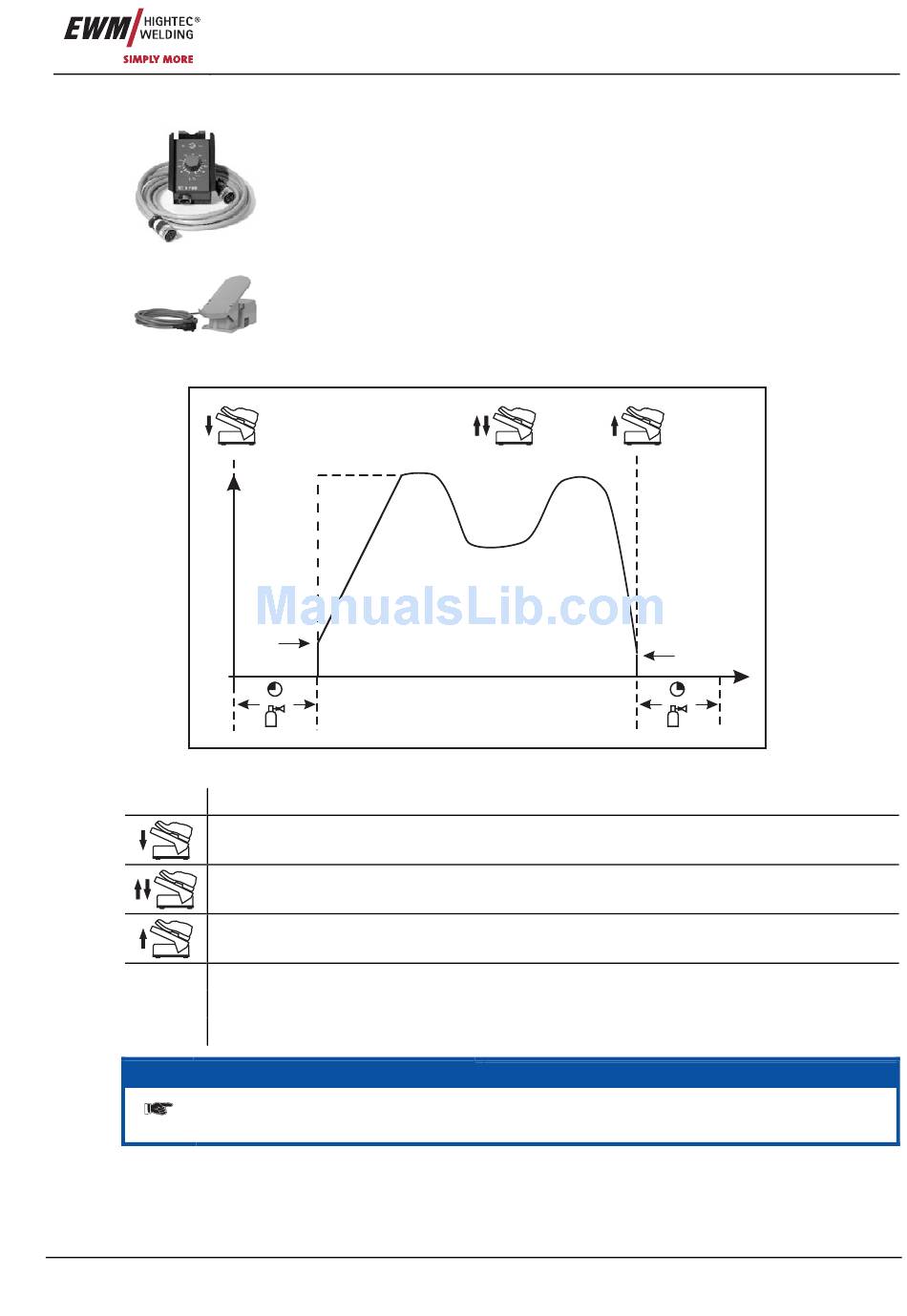

Figure 5-15
NOTE
Remote control
I
end
t
57
