Commissioning
MMA welding
6.9.1
Connecting the electrode holder and workpiece lead
Item
Symbol Description
1
2
3
•
Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
•
Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Polarity depends on the instructions from the electrode manufacturer given on the
electrode packaging.
78
0
G¼" connecting nipple, "-" welding current
Shielding gas connection (with yellow insulating cap) for TIG welding torch
Connection socket, "-" welding current
Electrode holder connection
Connection socket, "+" welding current
Connection for workpiece lead

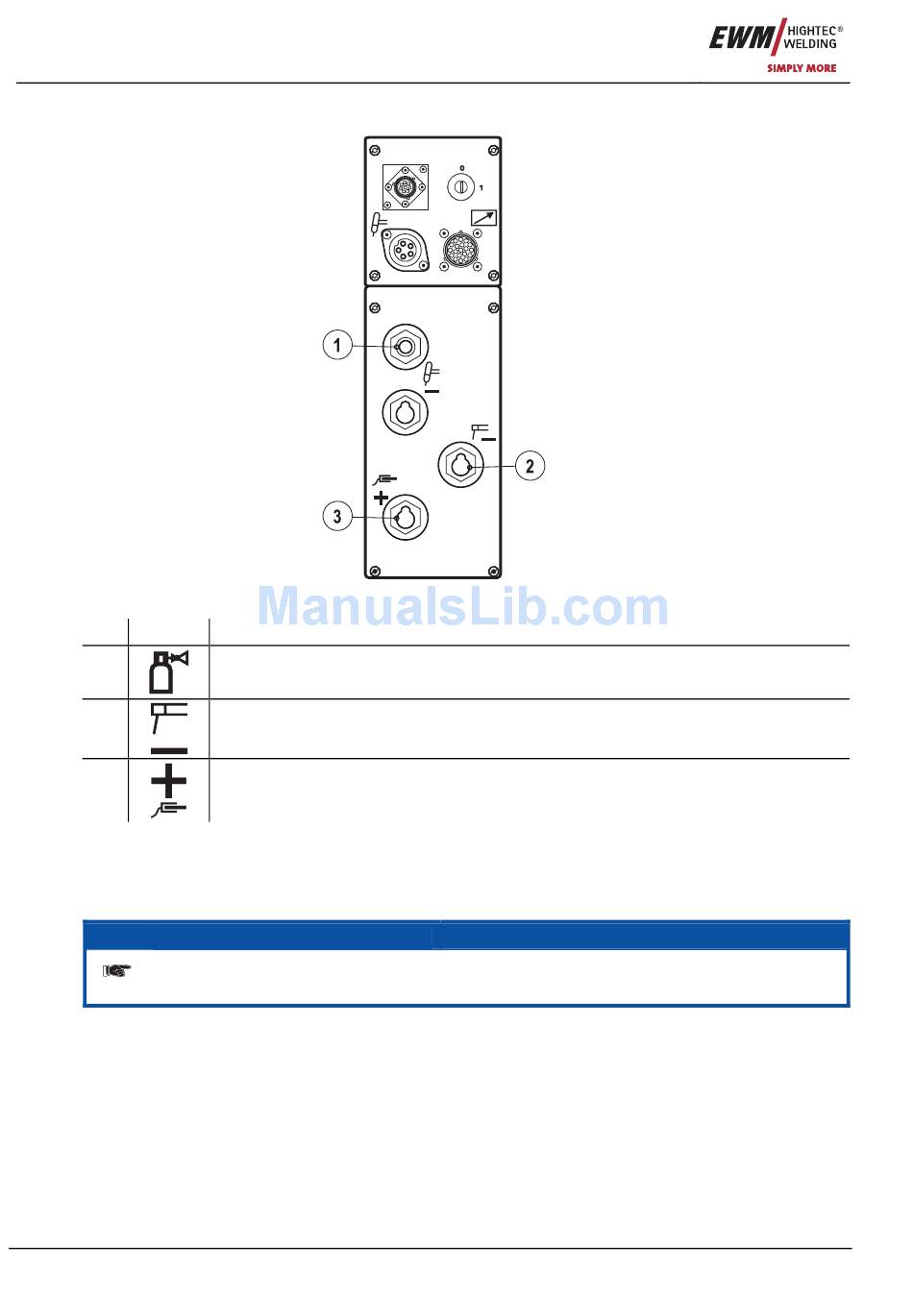

Figure 6-6
NOTE
Item No.: 099-000108-EWM01
