Functional characteristics
TIG welding

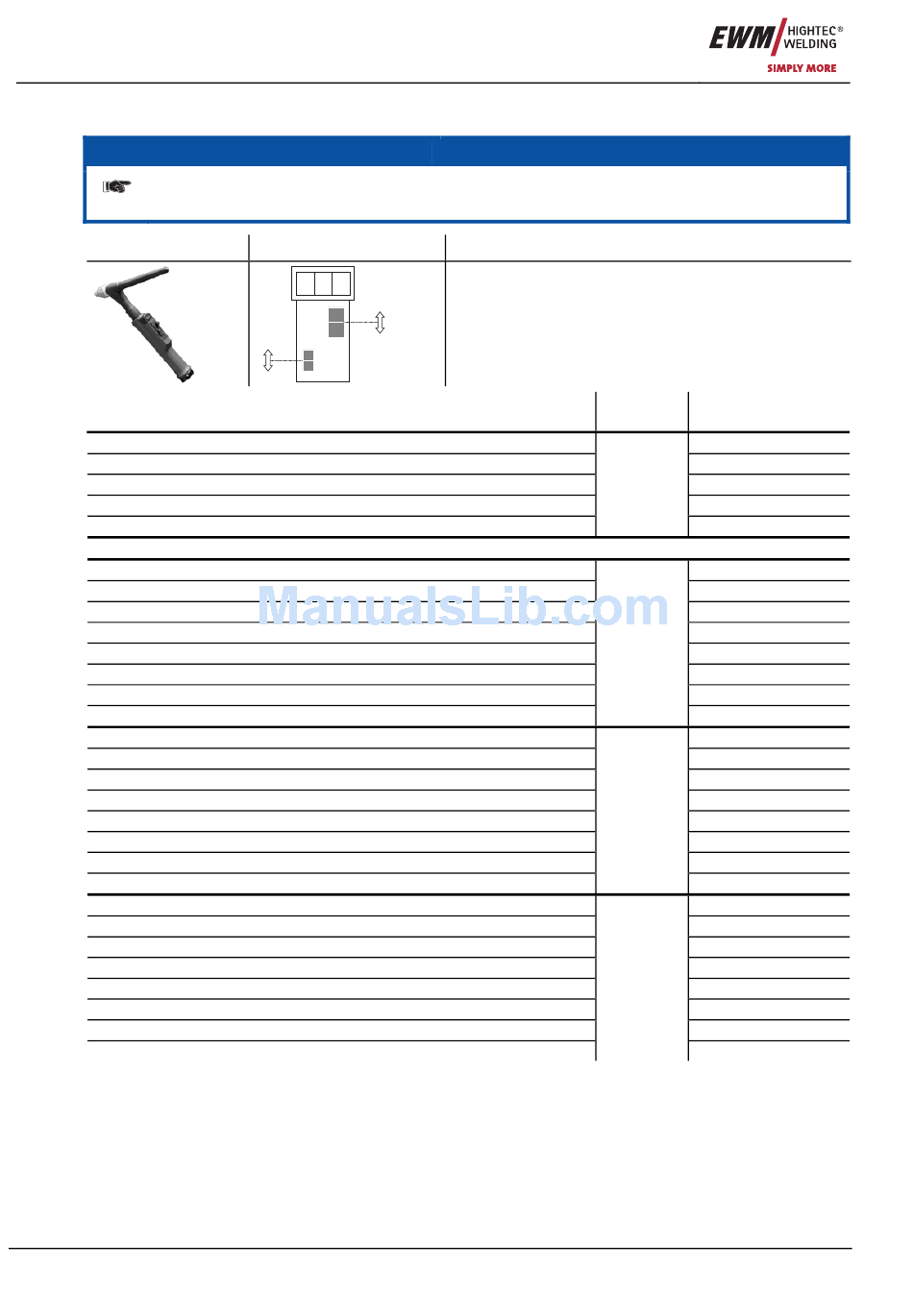

5.2.11.4 RETOX TIG torch (12-pole)

For operation with this welding torch, the welding machine must be equipped with the
retrofit option "ON 12POL RETOX TIG" (12-pole torch connection socket)!
Diagram
Functions
Welding current on/off
Secondary current
Secondary current (tapping function)
Increase welding current (up function)
Reduce welding current (down function)
Modes 2 and 3 are not used with this type of torch or, respectively, are not appropriate.
Welding current on/off
Secondary current
Secondary current (tapping function)
Raise welding current in stages (setting the first increment)
Decrease welding current in stages (setting the first decrement)
Switchover between Up-Down and JOB changeover
Increase JOB number
Decrease JOB number
Welding current on/off
Secondary current
Secondary current (tapping function)
Increase program number
Decrease program number
Switchover between Up-Down and JOB changeover
Increase JOB number
Decrease JOB number
Welding current on/off
Secondary current
Secondary current (tapping function)
Increase welding current, infinite adjustment (up function)
Reduce welding current, infinite adjustment (down function)
Switchover between Up-Down and JOB changeover
Increase JOB number
Decrease JOB number
52
Operating elements
8 8 8
BRT 1
BRT 3 BRT 2
BRT 4
NOTE
Explanation of symbols
TT= torch trigger
Mode
(ex works)
Operating
elements
TT 1
TT 2
1
TT 1 (tapping)
TT 3
TT 4
TT 1
TT 2
TT 1 (tapping)
TT 3
4
TT 4
TT 2 (tapping)
TT 3
TT 4
TT 1
TT 2
TT 1 (tapping)
TT 3
5
TT 4
TT 2 (tapping)
TT 3
TT 4
TT 1
TT 2
TT 1 (tapping)
TT 3
6
TT 4
TT 2 (tapping)
TT 3
TT 4
Item No.: 099-000108-EWM01
