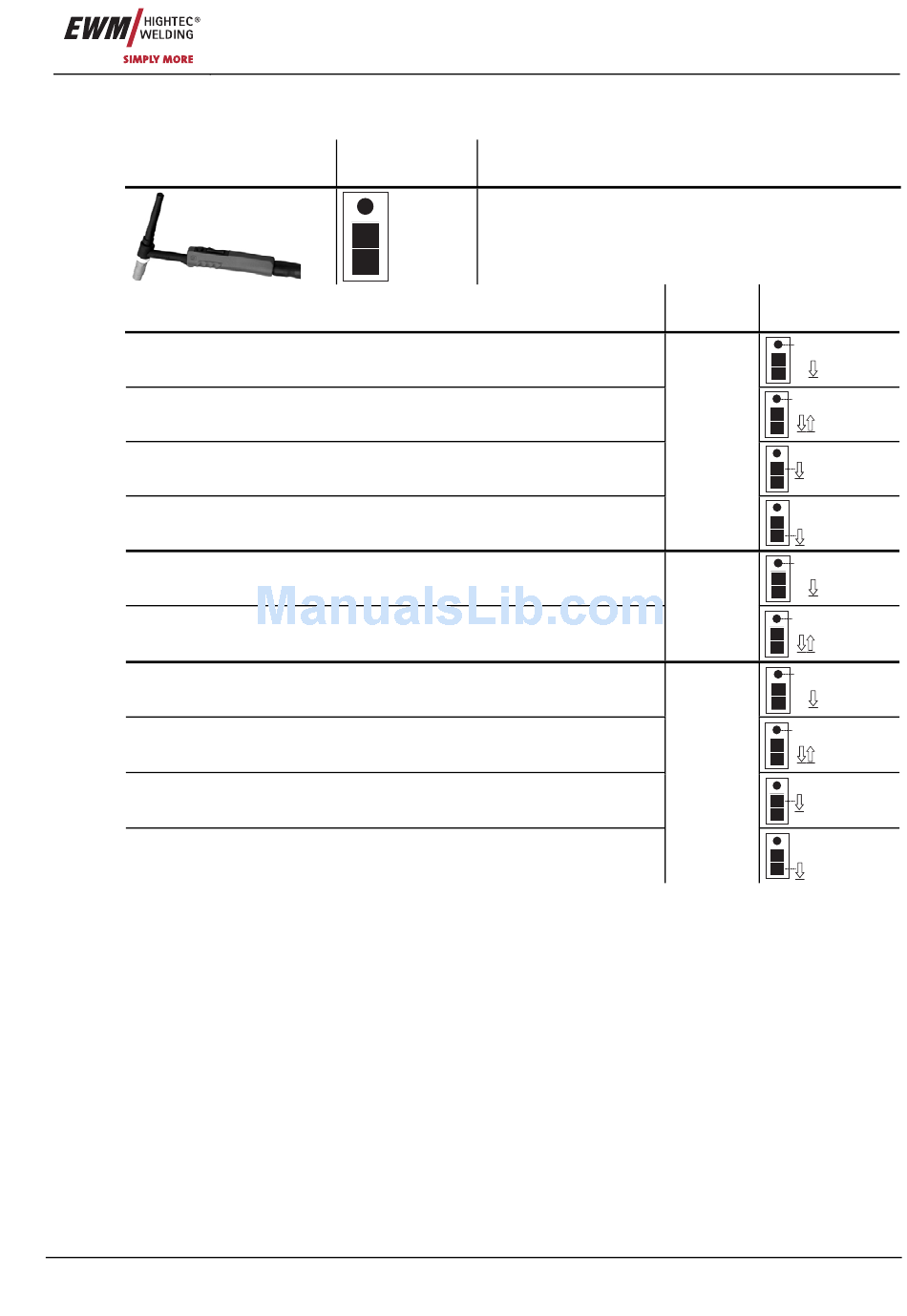

5.2.11.2 TIG up/down torch (8-pole)
Up/down torch with one torch trigger
Diagram
Functions
Welding current on/off
Secondary current (tapping mode) / (Latched mode)
Increase welding current, infinite adjustment (up function)
Reduce welding current, infinite adjustment (down function)
Welding current on/off
Secondary current (tapping mode)
Welding current on/off
Secondary current (tapping mode) / (Latched mode)
Increase welding current by an increment (see chapter "Setting the first
increment in modes 4 and 14")
Reduce welding current by an increment (see chapter "Setting the first
increment in modes 4 and 14")
Item No.: 099-000108-EWM01
Operating
Explanation of symbols
elements
TT 1 = torch trigger 1
Functional characteristics
Mode
1
(factory-
set)
2
4
TIG welding
Operating
elements
BRT 1
BRT 1
Up
Down
BRT 1
BRT 1
BRT 1
BRT 1
Up
Down
49
