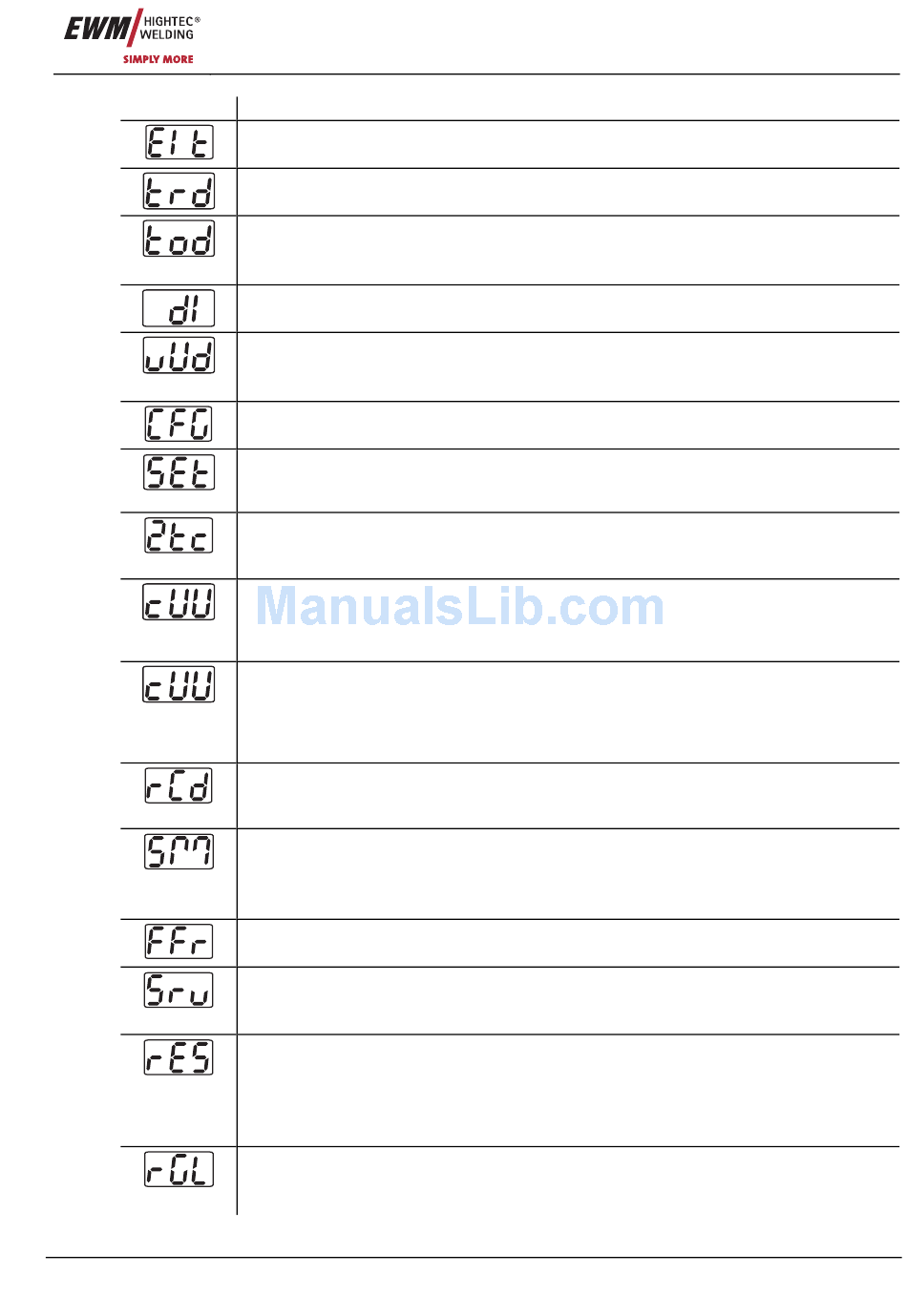

Display
Item No.: 099-000108-EWM01
Setting/selection
Exit the menu
Exit
Torch configuration menu
Set welding torch functions
Torch mode
• Modes 1-6: with tapping function (factory setting 1)
• Modes 11-16: without tapping function
Setting the first increment
Setting: 1 to 20 (factory setting 1)
Up-/Down speed (not available in modes 4 and 14)
Increase value = rapid current change (factory setting 10)
Reduce value = slow current change
Machine configuration
Settings for machine functions and parameter display
Welding current display (ignition, secondary, end and hotstart currents)
• Pro = welding current display as a percentage of the main current (factory setting)
• Abs = absolute welding current display
Non-latched operation (C version)
• on = on
• off = off (factory setting)
TIG cold wire welding, operating mode
• I>0 = cold wire mode for automated applications, wire is conveyed when current flows
• 2t to 4t = operating mode non-latched to latched
• off = cold wire is turned off, wire electrode is not conveyed (factory setting)
TIG cold wire welding, wire electrode diameter
Not required with TIG welding (manual).
• JOB = diameter of the wire electrode will be taken from the previously selected JOB
(factory setting)
• dxx = wire thickness 0.6 to 1.6 mm
Power display switching (MMA)
• on = actual value display
• off = setpoint value display (factory setting)
spotMatic
Variation of operation mode spotArc, ignition with workpiece contact
• on = on
• off = off (factory setting)
Ramp function Remote control RTF 1
The ramp function can be switched on and off
Service menu
Modifications to the service menu may only be carried out by authorised maintenance
staff!
Reset (reset to factory settings)
• off = aus (factory setting)
• CFG = Reset the values in the machine configuration menu
• CPL = Complete reset of all values and settings
The reset is performed when leaving the menu (EXIT).
AC mean value controller
• on = on (factory setting)
• off = off
Functional characteristics
Menus and sub-menus on the machine control
