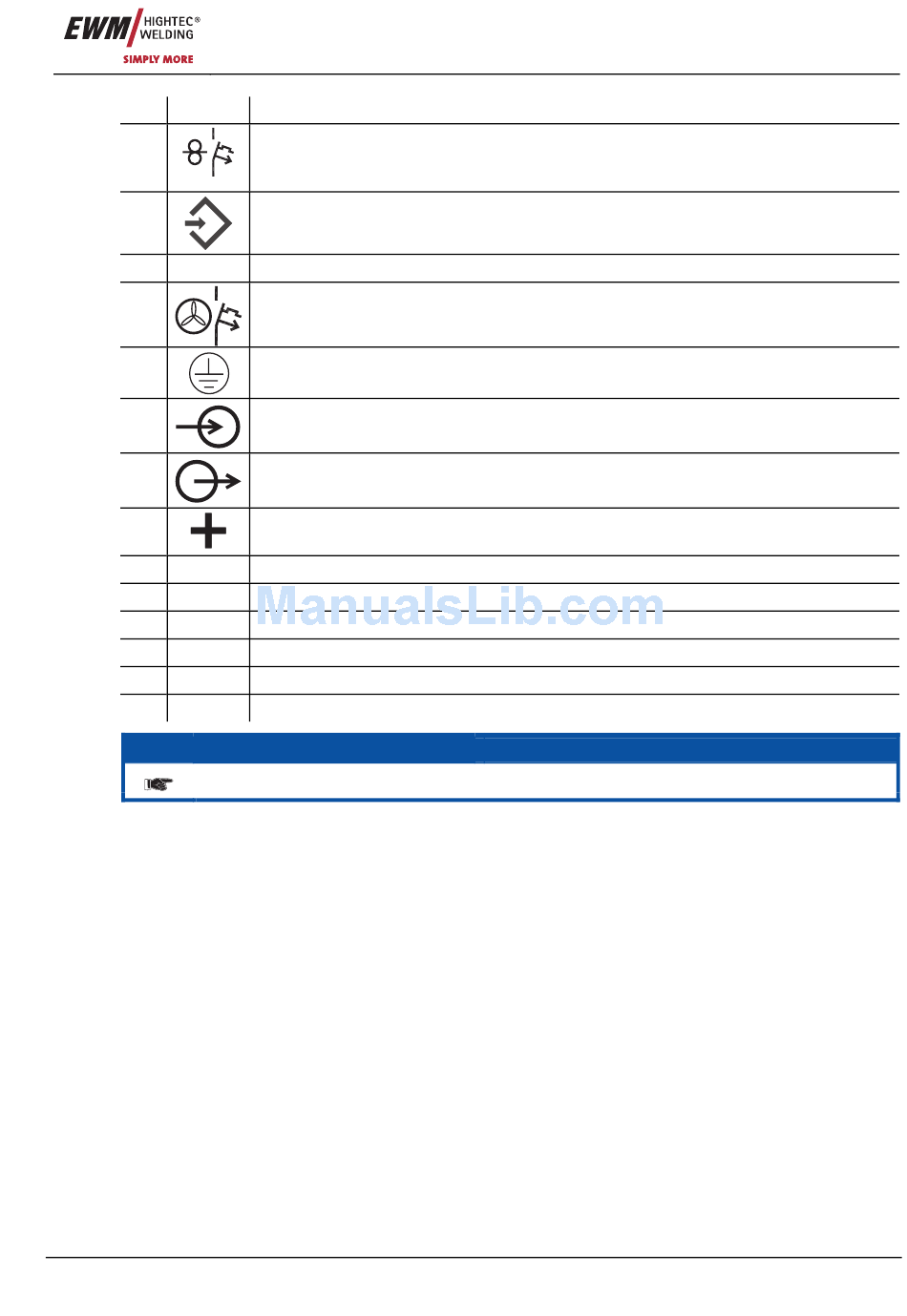

Item Symbol Description
1
42V/4A
2
3
4
5
6
7
8
9
10
11
12
13
14
Coolant tank only for machines fitted with water cooling (DW)
Item No.: 099-004934-EWM01
0
Key button, automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
7-pole connection socket
Wire feed unit control lead
Mains connection cable
Button, Automatic cut-out of fan motor
Press to reset tripped circuit breaker
Earth cable connecting nipple
Connection of green-yellow earth cable from the intermediate tube package
Rapid-action closure coupling, red (coolant return)
Rapid-action closure coupling, blue (coolant supply)
Connector plug, welding current "+"
Welding current connection on wire feed unit
Intermediate tube package strain relief
Safety chain
Cooling air outlet
Bracket for shielding gas cylinder
Coolant tank cap
Coolant tank
Machine description
WEGA 351, 401, 451, 501, 601 D
NOTE
