Functional characteristics

Machine control – Operating elements
5 Functional characteristics
5.1 Machine control – Operating elements
5.1.1

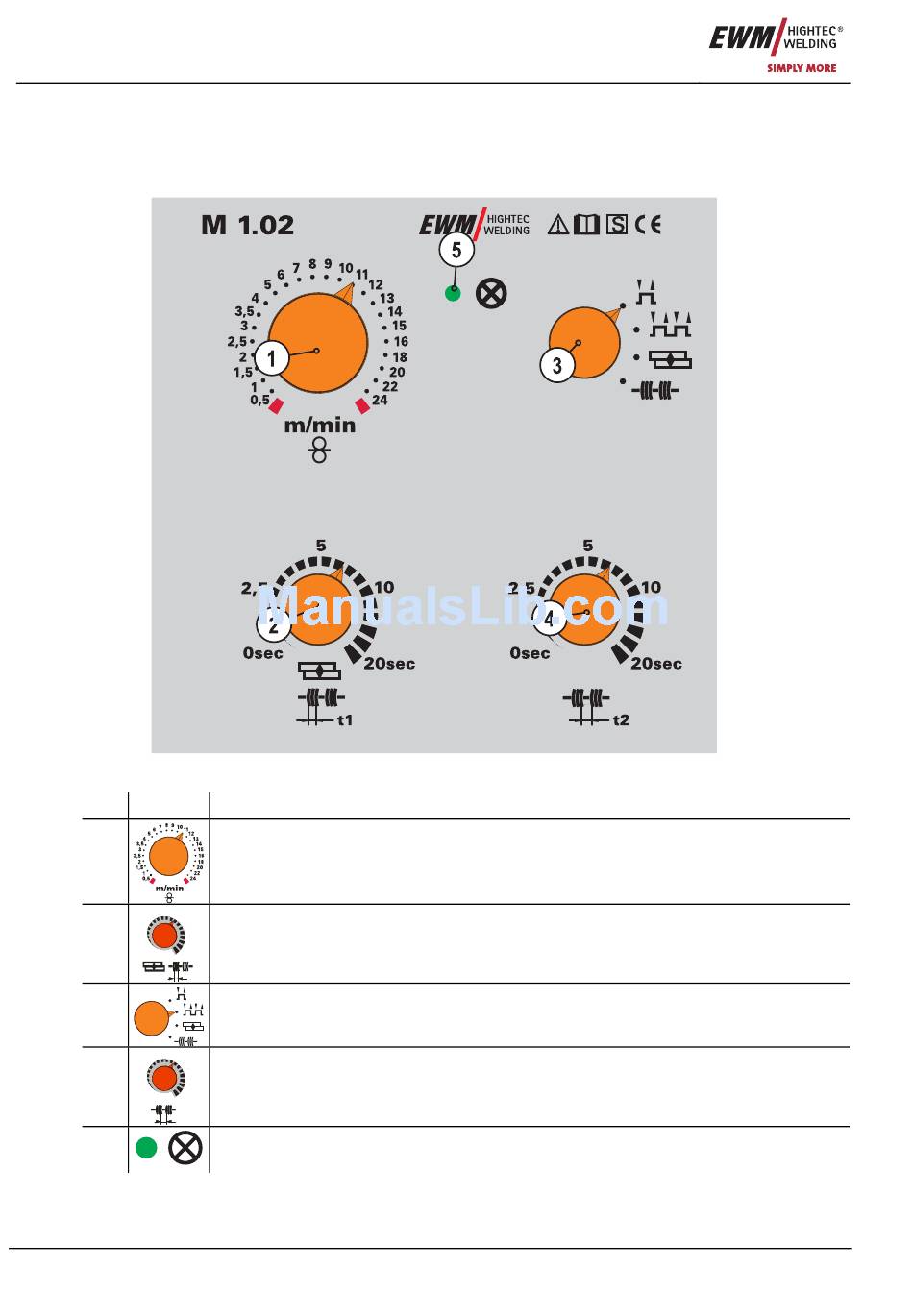

Welding machine control M1.02

Item Symbol Description
1
5
2
10
2,5
0sec
20sec
t 1
3
5 5
4
2,5 2,5 10 10
0sec 0sec
20sec 20sec
t 2 t 2
5
30
0
Rotary dial, Wire speed setting
Infinite adjustment of the wire speed.
Rotary dial, Spot and interval times
Infinite adjustment of the welding time (0-20s) in "Spots and interval" operating mode
"Operating mode" selector switch
Changeover between non-latched, latched, spot, interval
Rotary dial, Pause time
Infinite adjustment of the pause time (0–20s) in "Interval" operating mode
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
Figure 5-1
Item No.: 099-004934-EWM01
