  • Page 1

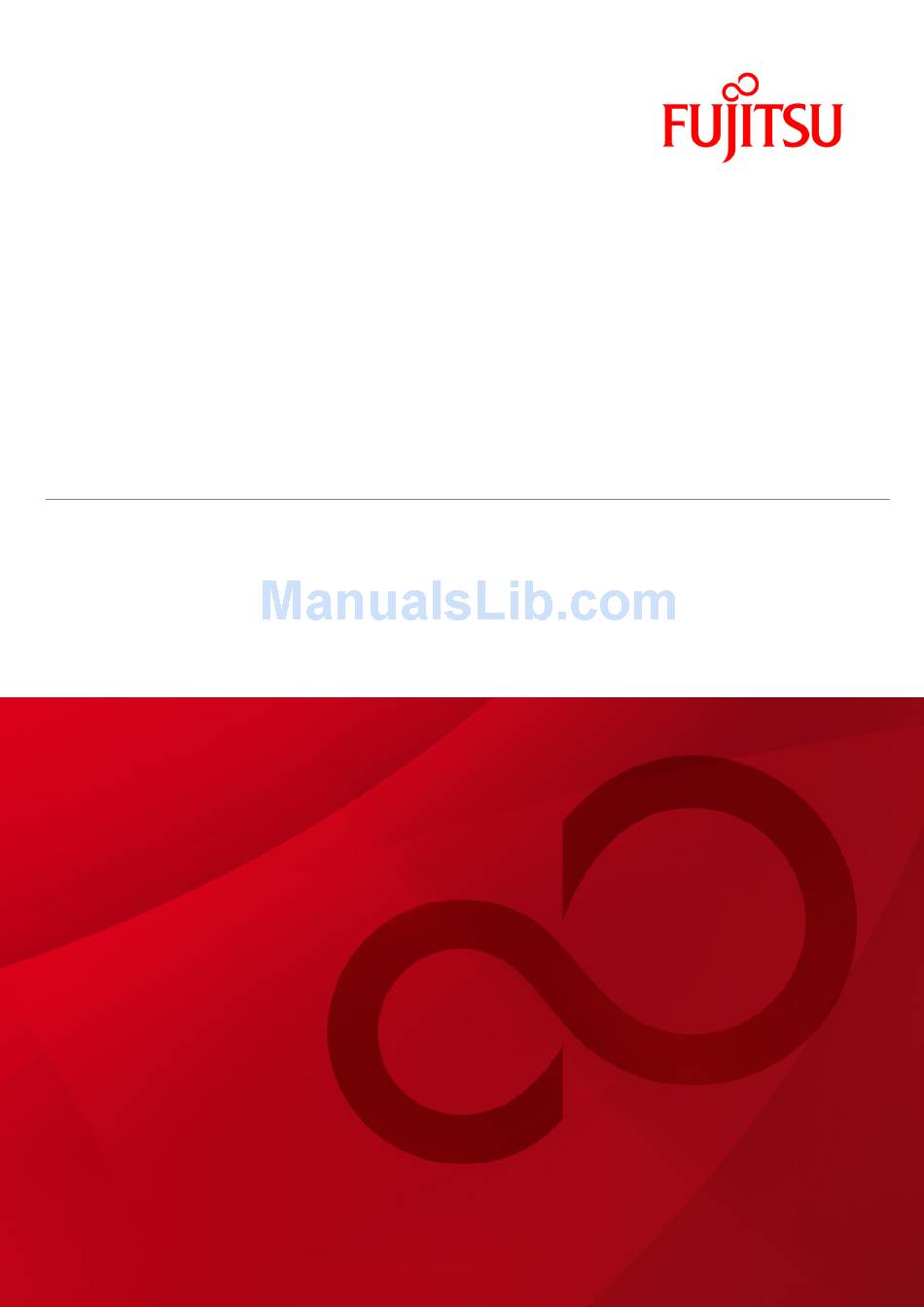

    IP-900E IP-900D IP-900IID Hardware User’s Guide...

  • Page 2

    (This page is intentionally left blank)

  • Page 3

    The following notice is for USA users only. IP-900E/IP-900D/IP-900IID has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4

    FUJITSU reserves the right to make changes to any products described herein without further notice and without obligation. No part of this manual shall be reproduced in any way or form without the permission of Fujitsu Limited. © All Rights Reserved. Copyright...

  • Page 5

    SD (Standard Definition) /HD (High Definition) video and audio signals in real time through even the optical IP network like FTTH. (*1) IP-900E has functions that encodes SD/HD video signals from a SD/HD camera or similar device and distributes it across the network in real-time.

  • Page 6: Chapter 1 Preparations

    Read Chapters 1 and 2 first for information on installing and connecting this equipment. Read Chapter 3 for operating instructions, and Chapter 4 and subsequent chapters can be read as required. Chapter 1 Preparations This chapter describes the checks that are required before the start of IP-900E/IP-900D/IP-900IID operation. Chapter 2 Installation and Connection This chapter describes conditions for IP-900E/IP-900D/IP-900IID installation and explains how to connect it to peripheral this equipments.

  • Page 7

    If a power receptacle with a low capacity or capacity below the rated value is used, the power receptacle, extension cable or power distribution wiring may overheat and start a fire. Important warning indications are summarized below in “Safety Precautions.” IP-900E/IP-900D/IP-900IID...

  • Page 8: Safety Precautions

    If an excessive heat, smoke, an abnormal odor or an unusual noise is coming from this equipment, immediately set its power switch to OFF and remove the power cord plug from the power receptacle. Then, contact a Fujitsu Service Center. This indicates a hazardous situation that could lead to fire and electric shock.

  • Page 9

    If a power receptacle with a low capacity or capacity below the rated value is used, the power receptacle, extension cable or power wiring may overheat and start a fire. IP-900E/IP-900D/IP-900IID...

  • Page 10

    • When cleaning this equipment, please wipe off with the cloth squeezing water (or neutral detergent thinned by water). • When wiping off, please be careful not to put water into this equipment from switches or the spaces. IP-900E/IP-900D/IP-900IID viii...

  • Page 11

    Address: 1-1, Kamikodanaka 4-Chome, Nakahara-Ku, Kawasaki 211-8588, Japan Authorised representative Authorised representative Authorised representative Fujitsu Services Limited Fujitsu Services Limited Fujitsu Services Limited Address: 22 Baker Street, London, W1U 3BW, United Kingdom Address: 22 Baker Street, London, W1U 3BW, United Kingdom...

  • Page 12

    Please note that you need to remove the CF card or take the backup of its recorded data in case of requesting the repair of the main unit that the CF card is installed, since Fujitsu does not guarantee the recorded content during the repair work.

  • Page 13: Table Of Contents

    Connection to ground .............. 35 2.2.2 Connection to power source ............ 36 Audio and Video Device Connections ..........39 2.3.1 IP-900E (Encoder) ..............39 2.3.2 IP-900D/IP-900IID (Decoder) ..........40 Connection to Network ................. 41 Connection to RS-232C Device ............42 CF Card Insertion and Removal ............

  • Page 14

    A.3.2 Unpacking and device check............. 88 A.3.3 Installation conditions ..............88 A.3.4 Connecting external cables ............88 A.4 Preparations for On-site Turn-up ............89 Glossary and Index ................. 93 Glossary ......................95 Index 98 CE Conformity Information ................100 IP-900E/IP-900D/IP-900IID...

  • Page 15: Chapter 1 Preparations

    CHAPTER 1 Chapter 1 Preparations PREPARATIONS This chapter describes the checks that are required before the start of IP-900E/IP-900D/IP-900IID operation. Main Features ································································ 3 Components ·································································· 4 Basic Application Examples ··············································· 5 Part Names ···································································· 6...

  • Page 16

    (This page is intentionally left blank)

  • Page 17: Main Features

    Humidity 20 to 90%RH (No condensing) *1: IP-900E supports only SD video. By adding optional software, IP-900E will be upgraded to support HD video. *2: IP-900D/900IID(Decoder) can output decoded video/audio signals from all video/audio output interfaces. *3: In case of HD video transmission, IP-900D/900IID cannot output video signal from “Analog composite” video interface.

  • Page 18: Components

    Chapter 1 Preparations Components The IP-900E/IP-900D/IP-900IID product package consists of the following components. Attachments for all series consist of same contents. ・ IP-900E/IP-900D/IP-900IID: 1 pc (cables separate order) CF CARD PWR ALM LINK /ACT 100M ・ Safety manual: 1pc ・ User’s Guide: 1pc ・...

  • Page 19: Basic Application Examples

    Chapter 1 Preparations Basic Application Examples Examples (system configuration) of use of IP-900E/IP-900D/IP-900IID are shown below. Encoder Site Decoder Site IP-900E 100-240V 10/100BASE RS-232C 100M IP-900D PWR ALM LINK /ACT ANALOG AUDIO IN HD VTR On demand file transfer 100-240V...

  • Page 20: Part Names

    Turns this equipment on and off. Power LED (PWR) Turns on when this equipment is powered on. Status LED Turn on when IP-900E power is on. For more information, see Table 5.3, “Details of LED Indications,” in Section 5.2. (RDY) Alarm LED Turns on when IP-900E operation is abnormal.

  • Page 21

    See Section 2.2.1, “Connection to ground,” for an explanation on using (13) this terminal. IP-900E start mode selector switch. when the IP-900E is powered on Maintenance mode switch with this switch held down, it starts in initial start mode. (14) See section 3.3, “Special Use of MNT Button,”...

  • Page 22

    See Section 4.2, “Cable and Connector Details,” for cable (L), (R) connection information. Use for an FG connection to this equipment. FG terminal See Section 2.2.1, “Connection to ground,” for an explanation on using this (12) terminal. IP-900E/IP-900D/IP-900IID...

  • Page 23

    Chapter 1 Preparations Names Description IP-900E start mode selector switch. when the IP-900E is powered on with this Maintenance mode switch switch held down, it starts in initial start mode. (13) See section 3.3, “Special Use of MNT Button,” for an explanation on using this (MNT) switch.

  • Page 24

    (This page is intentionally left blank)

  • Page 25: Chapter 2 Installation And Connection

    CONNECTION This chapter describes conditions for IP-900E/IP-900D/IP-900IID installation and explains how to connect it to peripheral devices. Figures described in this chapter are used IP-900E as a sample. Installation Conditions ···················································· 13 Power Supply System Connections ································ 35 Audio and Video Device Connections ······························ 39 Connection to Network ···················································...

  • Page 26

    Possibility of serious injury The power cord and other cables connected to IP-900E/IP-900D/IP-900IID may become entangled with someone walking close to them, possibly leading to serious injury and property damage. Clamp the cables to the rack or floor.

  • Page 27: Installation Conditions

    In case of using this equipment under unsupported conditions, the equipment cannot be supported by Fujitsu and it might be the cause of failure and shortening the product life remarkably. Use this Equipment in the environment which airborne dust is under 0.15mg/m3. (In case of being over 0.15mg/m3, use dust-proofing rack.) In addition, clean up around this equipment because...

  • Page 28

    Two IP-900 per 1U (Type C2) (1) Check contents of the rack mounting kit. (2) Check all cables disconnected. (3) Connect the first device with the rack mounting kit “A” and “B” on IP-900 using six same screws (M4). IP-900E/IP-900D/IP-900IID...

  • Page 29

    Chapter 2 Installation and Connection (4) Connect the second device with the rack mounting kit “A” and “B” on IP-900 using six same screws (M4). IP-900E/IP-900D/IP-900IID...

  • Page 30

    Chapter 2 Installation and Connection (5) Install the mounting kit C on IP-900 using two pan head screws (M5). IP-900E/IP-900D/IP-900IID...

  • Page 31

    Use four pan head screws (M5) to fix the product in position. To secure the unit to a server rack, use the cage nuts (D) and bind head screws (M6) supplied with this product. IP-900E/IP-900D/IP-900IID...

  • Page 32

    (1) When removing two devices at the same time Remove them by reversing the installation procedure for two devices. (2) When removing only one device Remove the four screws shown in the figure below. Remove the mounting brackets (C), and then remove the device. IP-900E/IP-900D/IP-900IID...

  • Page 33

    Chapter 2 Installation and Connection 1 unit per 1U (Type A1) (1) Check components of the rack mounting kit. (2) Check all cables are disconnected. (3) Install the rack mounting kit “A” on IP-900 using three same screws (M4). IP-900E/IP-900D/IP-900IID...

  • Page 34

    (4) Install the rack mounting kit “B” on IP-900 series using three same screws (M4). (5) Install IP-900 on 19” rack using four pan head screws (M5). - Removing the device Remove the device by reversing the installation procedure. IP-900E/IP-900D/IP-900IID...

  • Page 35

    2 units per 1U (Type A2) (1) Check components of the rack mounting kit. (2) Check all cables are disconnected. (3) Connect the first device with the rack mounting kit “A” and “B” on IP-900 using six same screws (M4). IP-900E/IP-900D/IP-900IID...

  • Page 36

    Chapter 2 Installation and Connection (4) Install IP-900 on 19” rack using two pan head screws (M5). (5) Connect the second device with the rack mounting kit “A” and “B” on IP-900 using six same screws (M4). IP-900E/IP-900D/IP-900IID...

  • Page 37

    Chapter 2 Installation and Connection (6) Install IP-900 on 19” rack using two pan head screws (M5). IP-900E/IP-900D/IP-900IID...

  • Page 38

    Chapter 2 Installation and Connection (7) Install the mounting kit C on IP-900 using two pan head screws (M5). - Removing the device Remove the device by reversing the installation procedure. IP-900E/IP-900D/IP-900IID...

  • Page 39

    Chapter 2 Installation and Connection 1 unit per 1U(Type B1) (1) Check components of the rack mounting kit. (2) Check all cables disconnected. (3) Install the rack mounting kit A on IP-900E/IP-900D/IP-900IID using three same screws (M4). IP-900E/IP-900D/IP-900IID...

  • Page 40

    Chapter 2 Installation and Connection (4) Install the rack mounting kit B on IP-900 series using three same screws (M4). (5) Install the rack mounting kit C on IP-900 series and rack mounting kit B using four screws (M4). IP-900E/IP-900D/IP-900IID...

  • Page 41

    Chapter 2 Installation and Connection (6) Install IP-900E/IP-900D/IP-900IID on 19” rack using four pan head screws (M5). - Removing the device Remove the device by reversing the installation procedure. IP-900E/IP-900D/IP-900IID...

  • Page 42

    (1) Check contents of the rack mounting kit. Coupling fittings Mounting fittings (2) Check all cables disconnected. (3) Connect the first device with the connecting kit using six same screws (M4). (4) Connect the second device with the connecting kit using six same screws (M4). IP-900E/IP-900D/IP-900IID...

  • Page 43

    Chapter 2 Installation and Connection (5) Rotate the connecting kit, and fix with twelve screws (M4) (Bottom view) (Top view) IP-900E/IP-900D/IP-900IID...

  • Page 44

    Chapter 2 Installation and Connection (6) Install the mounting kit on 2 units using six same screws(M4). (7) Install 2 units on 19” rack using four pan head screws (M5). - Removing the device Remove the device by reversing the installation procedure. IP-900E/IP-900D/IP-900IID...

  • Page 45

    2. Place the equipment to a Table Attach 4 rubber feet on the parts marked on the bottom of this equipment as below. Refer to “Open space required around this equipment” before deciding the place for this equipment. Mark for rubber feet IP-900E/IP-900D/IP-900IID...

  • Page 46

    Do not cover or close these ventilation openings to prevent overheating. c) The mounting of IP-900E/IP-900D/IP-900IID in a rack should be such that a hazardous condition in not archived due to uneven mechanical loading. To keep stability of the entire rack, please fix the rack to wall or floor by suitable means.

  • Page 47: Air Flow Into And Out From This Equipment

    Confirm that the current rating of the power strip or the service outlet exceeds the combined ratings of all equipment is supplying. The electrical rating of IP-900E : Rated 100-240 VAC, 50/60 Hz, 1 phase, 0.38 - 0.20 A(IP-900E)/0.33 - 0.17 A(IP-900D) /0.35 - 0.18 A (IP-900IID).

  • Page 48: Open Space Required Around This Equipment

    Chapter 2 Installation and Connection 2.1.4 Open space required around this equipment Provide the indicated (parts with hatched area) below, cable forming space, operation space and air intake/exhaust. For the information of maintenance space, see Section 5.3.1, “Maintenance space.” IP-900E/IP-900D/IP-900IID...

  • Page 49: Power Supply System Connections

    This section explains ground and power-source connections. 2.2.1 Connection to ground Use a power cord with the standard two-prong plug with ground wire for FG and external ground connections. When the exogenous noise influences IP-900E/IP-900D/IP-900IID, connect the FG terminal to an external ground. 100-240V 10/100BASE RS-232C...

  • Page 50: Connection To Power Source

    2.2.2 Connection to power source IP-900E/IP-900D/IP-900IID operation requires a power supply of 100-240 VAC. Insert the power cord with the standard two-prong plug with ground into the inlet connector. The power cord is not supplied with this equipment. Procure it separately.

  • Page 51

    Note: *l. Be sure that the detachable proper Supply cord has the approval of the appropriate safety agencies of the country where the equipment will be used. *2. Cable length of above Power Supply cord shall be shorter than 4.5 m. IP-900E/IP-900D/IP-900IID...

  • Page 52

    Do not turn on this equipment until connection of peripheral devices is completed. Otherwise, this equipment may be damaged. 100-240 VAC Using a power cord with the standard two-prong plug with ground, connect IP-900E/IP-900D/IP-900IID to 100-240 VAC outlet. Provide a power receptacle for the standard two-prong plug with ground. IP-900E/IP-900D/IP-900IID...

  • Page 53: Audio And Video Device Connections

    The signal is terminated with 75Ω impedance. - HDMI Input (Digital Video) Connect to HDMI connector on front panel of IP-900E using the HDMI cable. Input digital signal of HDMI. The signal is terminated with 50Ω. - Analog Video Input Connect to ANALOG VIDEO IN connector using BNC cable with NTSC or PAL signal.

  • Page 54: Ip-900d/ip-900iid (decoder)

    For details about connectors and cables, see Section 4.2, “Cable and Connector Details.” NOTE: For electrical specifications, see Appendix 2.3, “Function Specifications.” 100-240V 10/100BASE RS-232C 100M PWR ALM LINK /ACT ANALOG AUDIO OUT Video & Audio Input Device Figure Audio and video input device connections IP-900E/IP-900D/IP-900IID...

  • Page 55: Connection To Network

    Chapter 2 Installation and Connection Connection to Network To connect IP-900E/IP-900D/IP-900IID to a LAN device, connect the LAN device to the LAN communication port of IP-900E/IP-900D/IP-900IID using a LAN cable (UTP cable). The LAN communication port specification of IP-900E/IP-900D/IP-900IID is 10BASE-T/100BASE-TX.

  • Page 56: Connection To Rs-232c Device

    IP-900E/IP-900D [RS-232C] connector works as communication port. The physical connector of IP-900E/IP-900D is the D-sub 9 pins (male) and the specification is DTE. Use a cross connection or straight cable corresponding to the connected device. Refer to Section 4.2, “Cable and Connector Details”...

  • Page 57: Cf Card Insertion And Removal

    IP-900D/IP-900IID doesn’t support CF card slot. In order to insert the CF card, the front cover of IP-900E must be opened by screwing out the cover. No storage card is supplied with IP-900E. It can be procured separately, depending on the system.

  • Page 58: Updating The Software

    Please note that you need to remove the CF card or take the backup of its recorded data in case of requesting the repair of the main unit that the CF card is installed, since Fujitsu does not guarantee the recorded content during the repair work.

  • Page 59: Chapter 3 Operation Instructions

    This section explains how to power on/off, setup and operate this equipment. Figures screens described this chapter used IP-900E/IP-900D/IP-900IIDs’ as a sample. Operations and descriptions are common for all equipments. Turnr ON/OFF IP-900E/D ··············································· 46 Device Settings and Operation ········································· 47 Special Use of MNT Button ············································· 49 IP-900E/IP-900D/IP-900IID...

  • Page 60: Power On/off

    /ACT ANALOG AUDIO IN Status(RDY) LED Power button This indicates the on switch, which is used to supply power to the IP-900E/D. | This indicates the off switch, which is used to disconnect power from the IP-900E/D. ○ 3.1.2 Turn off IP-900E/D When the power button on the front panel is set to the [O] position, this equipment is turned off and the PWR LED turns off.

  • Page 61: Device Settings And Operation

    For details, please refer to the Software User's Guide. (Refer the software user’s guide) Connect user’s network Start settings and operations (Refer the software user’s guide) ■Web browser recommended The recommended web browser is as follow. - Internet Explorer 6.0 SP2 or later IP-900E/IP-900D/IP-900IID...

  • Page 62: Reboot

    This section briefly explains the basic functions of the setup pages. 3.2.1 Reboot Clicking the button displayed in the left frame of the browser reboots this equipment. When you click the button, the following dialog box shown below appears for confirmation. Click OK to reboot. IP-900E/IP-900D/IP-900IID...

  • Page 63: Special Use Of Mnt Button

    [MNT] Button (for about 10 seconds) until the RDY LED begins blinking in orange. Doing so starts the IP-900E/IP-900D/IP-900IID with the initial IP address and subnet mask with which the IP-900E/IP-900D/IP-900IID is shipped from the factory (IP address 10.0.0.1, Subnet mask: 255.0.0.0).

  • Page 65: Chapter 4 Cable Specifications

    CHAPTER 4 Chapter 4 Cable Specifications CABLE SPECIFICATIONS This chapter contains a type of how work is implemented, cable connection system diagrams, and cable connector details Installation Preparations ················································· 53 Cable and Connector Details ··········································· 55...

  • Page 66

    (This page is intentionally left blank)

  • Page 67: Installation Preparations

    Chapter 4 Cable specifications Installation Preparations A type of IP-900E/IP-900D/IP-900IID installation work is shown below. IP-900E External device ANALOG AUDIO (1) Analog audio cable LEFT Analog audio output device (mic, etc) (2) Analog audio cable RIGHT Digital video (HD-SDI) output device...

  • Page 68

    When constructing a system that uses IP-900E/IP-900D/IP-900IID, consideration must be given so that its boundary between IP-900E/IP-900D/IP-900IID and other devices is similar to that shown in the above figure. Since the type of work may change depending on the system, procure equipment and perform work based on consultations with a system designer.

  • Page 69: Cable And Connector Details

    Chapter 4 Cable specifications Cable and Connector Details (1) SDI VIDEO cable Coaxial cable 75Ω Connector 5C-FB or more Front view <IP-900E> <External device> Pin assignment SIGNAL SIGNAL ① ① ② ② Maximum length HD-SDI 100m (Coaxial cable 75Ω 5C-FB or more) DVB-ASI 100m (Coaxial cable 75Ω...

  • Page 70

    Chapter 4 Cable specifications (3) Analog AUDIO cable Connector RCA Pin RCA Pin IP-900E/D <IP-920E/D> <External device> Front view SIGNAL ① ① SIGNAL Pin assignment ② ② Maximum length 20m (for 3C-2V equivalent characteristics or better ) Order Procured separately <Reference for procurement>...

  • Page 71

    Chapter 4 Cable specifications (4) HDMI cable Connector HDMI HDMI <IP-900E> <External device side> Front view Pin assignment TMDS DATA2 + TMDS DATA2 + ① ① TMDS DATA2 TMDS DATA2 ② ② SHIELD SHIELD TMDS DATA2 - ③ ③ TMDS DATA2 - TMDS DATA1 + ④...

  • Page 72

    ④ ③ ② ① D-sub 9 pin (Female) #4-40 retainer screw ⑨ ⑧ ⑦ ⑥ Front view D-sub9 (Female) <External device side> <IP-900E> RS-232C DTE Pin assignment D-sub 9 pin (female) ○ ○ ○ ○ ○ ○ <IP-900E> ○ ○...

  • Page 73

    Chapter 4 Cable specifications (7) LAN cable Connector RJ45 RJ45 12345678 <IP-900E> <External device> Front view Pin assignment 10/100BASE <IP-900E> <External device> <IP-900E> <External device> ① ① ① ① ② ② ② ② ③ ③ ③ ③ ④ ④ ④...

  • Page 74

    Type HVCTF cross section area NEMA (5-15P) Rated 13A, 1.25 square mm parallel blade 125V 3-Conductors Rated 13 A, 125 V (Single phase;2-current carrying conductors & ground) METI Approved METI Approved METI Approved or <PSE> or <PSE> or <PSE> IP-900E/IP-900D/IP-900IID...

  • Page 75

    *2. Cable length of above Power Supply cord shall be shorter than 4.5 m. CERTIFICATION MARKING Country Agency Certification Mark Country Agency Certification Mark Austria Italy Belgium CEBEC Norway NEMKO Denmark DEMKO Spain Finland Sweden SEMKO France Switzerland Germany IP-900E/IP-900D/IP-900IID...

  • Page 76

    (This page is intentionally left blank)

  • Page 77: Chapter 5 Troubleshooting

    CHAPTER 5 Chapter 5 Troubleshooting TROUBLESHOOTING This section explains how to power on/off, setup and operate this equipment. This chapter describes actions to be taken if this equipment does not operate normally or if an alarm LED turns on. Figures described in this chapter are used IP-900Es’ as a sample. Help Information ···························································...

  • Page 78

    (This page is intentionally left blank)

  • Page 79: Help Information

    Fujitsu Service Center. Possibility of electric shock Contact your system administrator before checking the voltage of a power outlet. Otherwise, electric shock may occur. Table 5.1.1 Problem descriptions and recommended actions(IP-900E) No. Class Status Description Recommended action...

  • Page 80

    Blue/gray Reboot this equipment. screen is output. ALM LED blinks when IP address obtaining might be failed to get. Check IP address setting (For more information, Is the ALM LED blinking? refer to the Software User’s Guide). IP-900E/IP-900D/IP-900IID...

  • Page 81

    If pulling out the cable from this generated on the receiving device in case of pulling equipment eliminates the noise, audio receiving out the audio input cable at this signals may have noise. Check the audio device. equipment? output device. IP-900E/IP-900D/IP-900IID...

  • Page 82

    Is ALM LED blinking? server setting/operation of this device are correct. - L00A PPPoE connection failure Check PPPoE-related setting and PPPoE server (carrier side) operation of this device are correct. For details, please refer to the Software User’s Guide. IP-900E/IP-900D/IP-900IID...

  • Page 83

    Is the outlet voltage normal? When another device is connected to the same outlet, check the other device’s performance. Contact to CE in Fujitsu Service Center. CE may ask the alarm code for checking The ALM LED Equipment error is occurred.

  • Page 84

    Are connections correct between Check the connection between the receiving equipment the receiving device and speakers? device and speakers. Is ALM LED turned on? Refer to clause 3 in this table. IP-900E/IP-900D/IP-900IID...

  • Page 85

    The DEC LED is stream data. Check connected ・Are FEC/ARQ settings of this device and blinking in network and the encoder are the encoder correct? green. set/operated correctly. ・Are the network device and LAN port settings (AUTO, Full/Half-duplex, etc) the same? IP-900E/IP-900D/IP-900IID...

  • Page 86: Alarm Led Lamp Is On

    Turn off the equipment at once and turn on the power again. In case of not turning off ALM LED even if you reboot the power, contact Fujitsu CE. Our CE may ask you the alarm code. Please refer to “Table 4-3 Alarm Code List” of our software Users Guide for the details.

  • Page 87

    Alarm LED. Blinks or lights in orange when a device alarm occurs. For more details of the alarm log, refer to Section 3.2.7, “Log” of IP-900E/IP-900D Software User’s Guide.” Lights in green when the HD upgrade option is installed.

  • Page 88: Maintenance

    Please allocate the space more than 1 m in or rear for maintenance. front and rear for maintenance. Front space for maintenance Front space >700mm×1000mm for maintenance >700mm×1000mm Front access case Rear space for maintenance >700mm×1000mm Rear space for maintenance >700mm×1000mm Rear access case IP-900E/IP-900D/IP-900IID...

  • Page 89: Change Of Maintenance Parts (maintenancer Only)

    In case that the optional CF card is installed in the main unit, please do not forget to remove it and re-install in the replaced unit. Please refer to Section 2.6, “CF card insertion and removal,” for the respective maintenance. IP-900E/IP-900D/IP-900IID...

  • Page 90

    (This page is intentionally left blank)

  • Page 91: Appendix

    Appendix Appendix The appendix contains view of this equipment and its main specifications. Notes on installation work and preparations for on-site turn-up are also contained in this section. Figures described in this chapter are used IP-900Es’ as a sample. Appearance ································································· 79 Basic Specifications ·······················································...

  • Page 92

    (This page is intentionally left blank)

  • Page 93: Appearance

    Appendix Appearance The appearance of IP-900E/IP-900D/IP-900IID is shown below. IP-900E/IP-900D/IP-900IID...

  • Page 94

    Appendix Bottom View IP-900E/IP-900D/IP-900IID...

  • Page 95: Basic Specifications

    Cooling method Forced air cooling (maintenance-free fan used) Power 100-240VAC Weight Max. 2.3 kg IP-900E : 38 VA or less @ 100VAC Power consumption IP-900D : 33 VA or less @ 100VAC IP-900IID : 35 VA or less @ 100VAC A.2.2...

  • Page 96: Function Specifications

    Appendix A.2.3 Function specifications This chapter describes functional specifications of individual parts of this equipment. (IP-900E only) Name Specifications Remarks Signal format: NRZI Digital SDI Input impedance: 75Ω (Unbalanced) VIDEO input Signal amplitude: 800mVp-p Maximum amplitude level: 800mVp-p ± 10%...

  • Page 97

    Maximum amplitude level: 0.5dB (0dB=100IRE) Permissible cable length: 30m (3C-2T or equivalent) Connector ANALOG VIDEO OUT name Pin number Signal name Remarks SIGNAL (IP-900E only) Name Specifications Remarks Analog voice signal(unbalanced) Analog Input impedance: 54kΩ AUDIO Input maximum level: +2Vrms input Permissible DC input level: ±5Vrms...

  • Page 98

    Cable Pin assignment: Comply with one of two below Pin No. T568A W/G G W/O Bl W/Bl O W/Br Br T568B W/O O W/G Bl W/Bl G W/Br Br [W: white, G: green, O: orange, Bl: blue, Br: brown] IP-900E/IP-900D/IP-900IID...

  • Page 99

    Ring Indicator Name Specifications Remarks Parallel 2 pin with ground Input voltage : 100-240VAC±10% Connector : Inlet POWER Button : Locker button Input protection : Built-in fuse Withstand voltage : 1,500 VAC Connector name 100-240V Pin number Signal name Remarks IP-900E/IP-900D/IP-900IID...

  • Page 100

    Appendix (IP-900E only) Name Specifications Remarks Version :1.2a Length of the attested HDMI cable Signal format :TMDS is pretermission. HDMI input Input impedance :50 ohms ±10% The unattested cable can't be used. Maximum length :-------- DVI isn't supported. connector :19PIN Type A...

  • Page 101

    G LINK established LAN packets detection Cable disconnection [LAN] or software inactive 100M G 100BASE operation 10BASE operation G HD-option installed HD-option not (IP-900E only) installed G Decoding stream Packet loss Not decoding (IP-900D/ stream IP-900IID only) G: Green, O: Orange Name...

  • Page 102: Preparations For Installation Work

    • Place where this equipment is subject to strong magnetic and radio waves A.3.4 Connecting external cables Refer to Chapter 2, “Installation and Connection,” for the connection methods, Section 4.2, “Cables and Connector Details,” and A.2.3, “Function specifications,” for device connector pin assignments. IP-900E/IP-900D/IP-900IID...

  • Page 103: Preparations For On-siteturn-up

    Input voltage check 入力電圧確認 Turn on 電源投入 Unit test 単体試験 System test システム試験 EN D Since system configurations of this equipment are diverse depending on the applications used, this chapter describes the checking process for only a single device. IP-900E/IP-900D/IP-900IID...

  • Page 104

    “Cables and Connector Details,” and A.2.3, “Function specifications,” for device connector pin assignments. Hardware settings need not be set in this equipment. (5) Input voltage check Check the voltage of power supplied to this equipment is in a range of 100-240 VAC ± 10%. IP-900E/IP-900D/IP-900IID...

  • Page 105

    5) Status check After the final setup, when the equipment is in the system operation state, check this equipment status LED (RDY) on the front of this equipment lights in green, and that the alarm LED (ALM) is off. IP-900E/IP-900D/IP-900IID...

  • Page 106

    (This page is intentionally left blank)

  • Page 107: Glossary And Index

    Glossary and Index Glossary and Index Glossary ··············································································· 95 Index ··················································································· 98 CE Conformity Information ····················································· 100...

  • Page 108

    (This page is intentionally left blank)

  • Page 109: Glossary

    (blanking area) of the serial digital signal. IP Address Code used for identifying a node (e.g., PC) FG (Frame Ground) operating using TCP/IP. This 32-bit number is Ground for a cabinet divided into four 8-bit sections, and an example of this is 200.10.101.1. IP-900E/IP-900D/IP-900IID...

  • Page 110

    DSTN and the active matrix like TFT. Ground for signals LED (Light-Emitting Diode) Subnet Mask The IP-900E/IP-900D/IP-900IID has a power Mask value used for obtaining a subnet network LED lamp and alarm LED lamps. The power address from an IP address.

  • Page 111

    100 Mbps. Other 100BASE standards are 10BASE-T4 and 100BASE-FX, and the differ- ence is the type of cable used. 100BASE-TX uses unshielded twisted-pair (UTP) cables. It also uses the RJ-45 connector, which is similar to the modular jacks used for telephones. IP-900E/IP-900D/IP-900IID...

  • Page 112: Index

    LAN cable ............53 LAN interface ............ 78 D M Data input/output ..........3 Data interface ............. 79 Main features ............3 Device settings and operation ......42 Maintenance space ..........68 Dimensions ............ 3, 75 Dust ..............75 IP-900E/IP-900D/IP-900IID...

  • Page 113

    Video input .......... 3, 7, 9, 76 Preparations for On-site Turn-up ..... 83 Video output ........7, 9, 76, 77 R W RS-232C ............7, 8 Web browser recommended ......42 RS-232C cable ........... 52 Weight ............3, 75 RS-232C interface ..........79 IP-900E/IP-900D/IP-900IID...

  • Page 114: Ce Conformity Information

    Glossary and Index CE Conformity Information Following address can be reached at for regarding the CE conformity information. Fujitsu Services Limited Address: 22 Baker Street, London, W1U 3BW, United Kingdom IP-900E/IP-900D/IP-900IID 100/100...

  • Page 115

    IP-900E IP-900D IP-900IID Hardware User’s Guide Edition 9 June 2016 © FUJITSU LIMITED If this manual is missing a page or pages are not in the proper order, it will be replaced.
