CP-Parameter for open-loop operation

CP08 DC-link voltage/peak value

Co-domain
0...1000 V

CP09 Output voltage

Co-domain
0...778 V

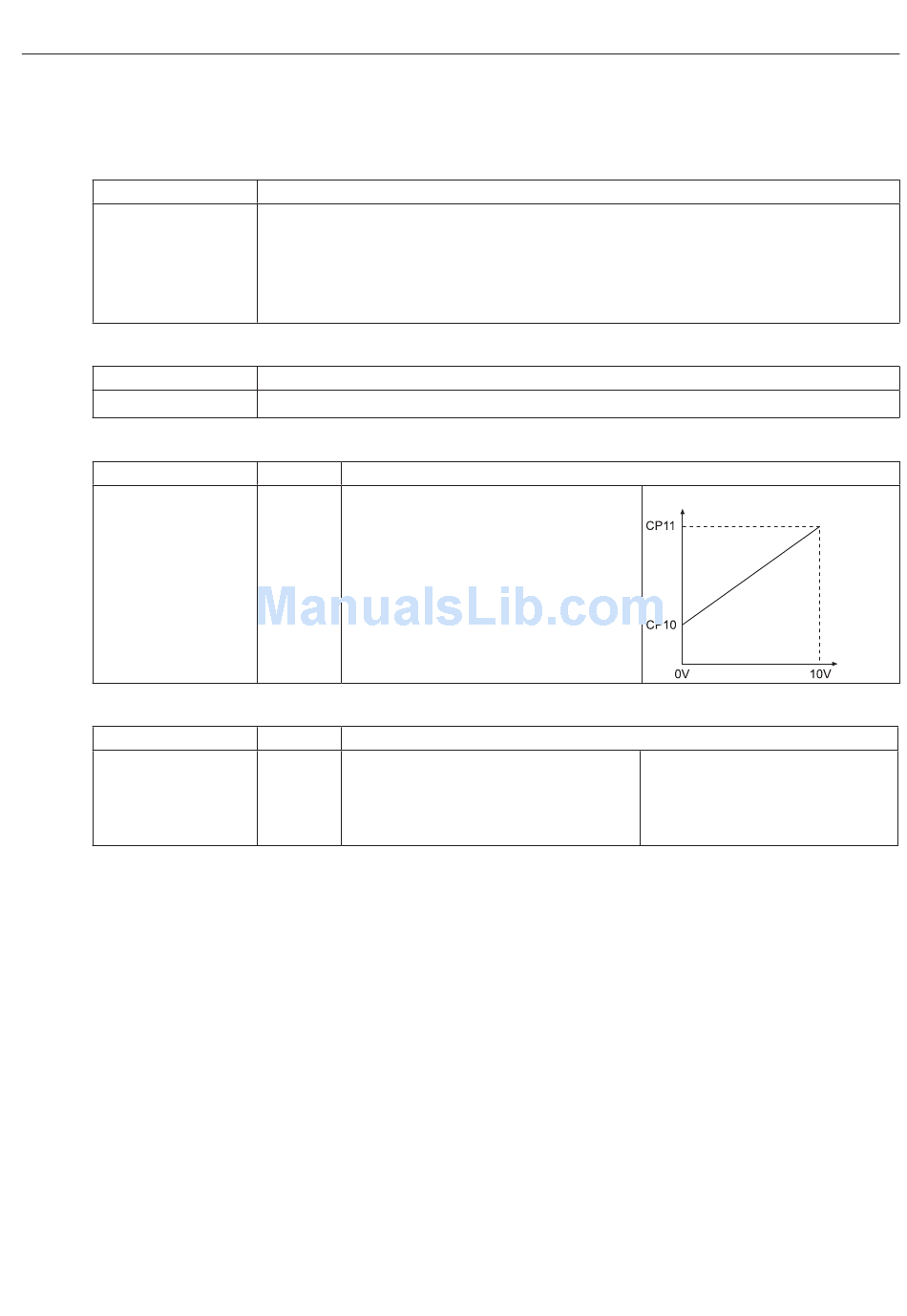

CP10 min. reference forward

Co-domain
0.0...400.0 Hz
CP11 max. reference forward
Co-domain
0.0...400.0 Hz
12
Description
CP08 makes it possible to recognize short-time voltage rises within an
operating cycle. For that the highest value of CP07 is stored in CP08.
The peak value memory can be cleared by pressing the UP, DOWN or
ENTER key or via bus by writing any value you like to the address of
CP08. The switch off of the inverter also clears the memory.
Description
Display of the actual output voltage in volt.
Setting Description
0 Hz With ths frequency the inverter
operates without presetting an
analog set value. Internal limiting
of the fixed frequencies CP19...
CP21.
Setting Description
70 Hz With this frequency the inverter
operates with maximum set val-
ue. Internal limiting of the fixed
frequencies CP19...CP21.
f
→ CP10
U
REF
