5 General Specifications
3)
Safe stop Terminal 37 (Terminal 37 is fixed PNP logic):
Voltage level
Voltage level, logic'0' PNP
Voltage level, logic'1' PNP
Nominal input current at 24 V
Nominal input current at 20 V
Input capacitance
All digital inputs are galvanically isolated from the supply voltage (PELV) and other high-voltage terminals.
1) Terminals 27 and 29 can also be programmed as output.
2) Except safe stop input Terminal 37.
3) Terminal 37 is only available in FC 302 and FC 301 A1 with Safe Stop. It can only be used as safe stop input. Terminal 37 is suitable for category 3
installations according to EN 954-1 (safe stop according to category 0 EN 60204-1) as required by the EU Machinery Directive 98/37/EC. Terminal 37
and the Safe Stop function are designed in conformance with EN 60204-1, EN 50178, EN 61800-2, EN 61800-3, and EN 954-1. For correct and safe use
5
of the Safe Stop function follow the related information and instructions in the Design Guide.
4) FC 302 only.
Analog inputs:
Number of analog inputs
Terminal number
Modes
Mode select
Voltage mode
Voltage level
Input resistance, R
i
Max. voltage
Current mode
Current level
Input resistance, R
i
Max. current
Resolution for analog inputs
Accuracy of analog inputs
Bandwidth

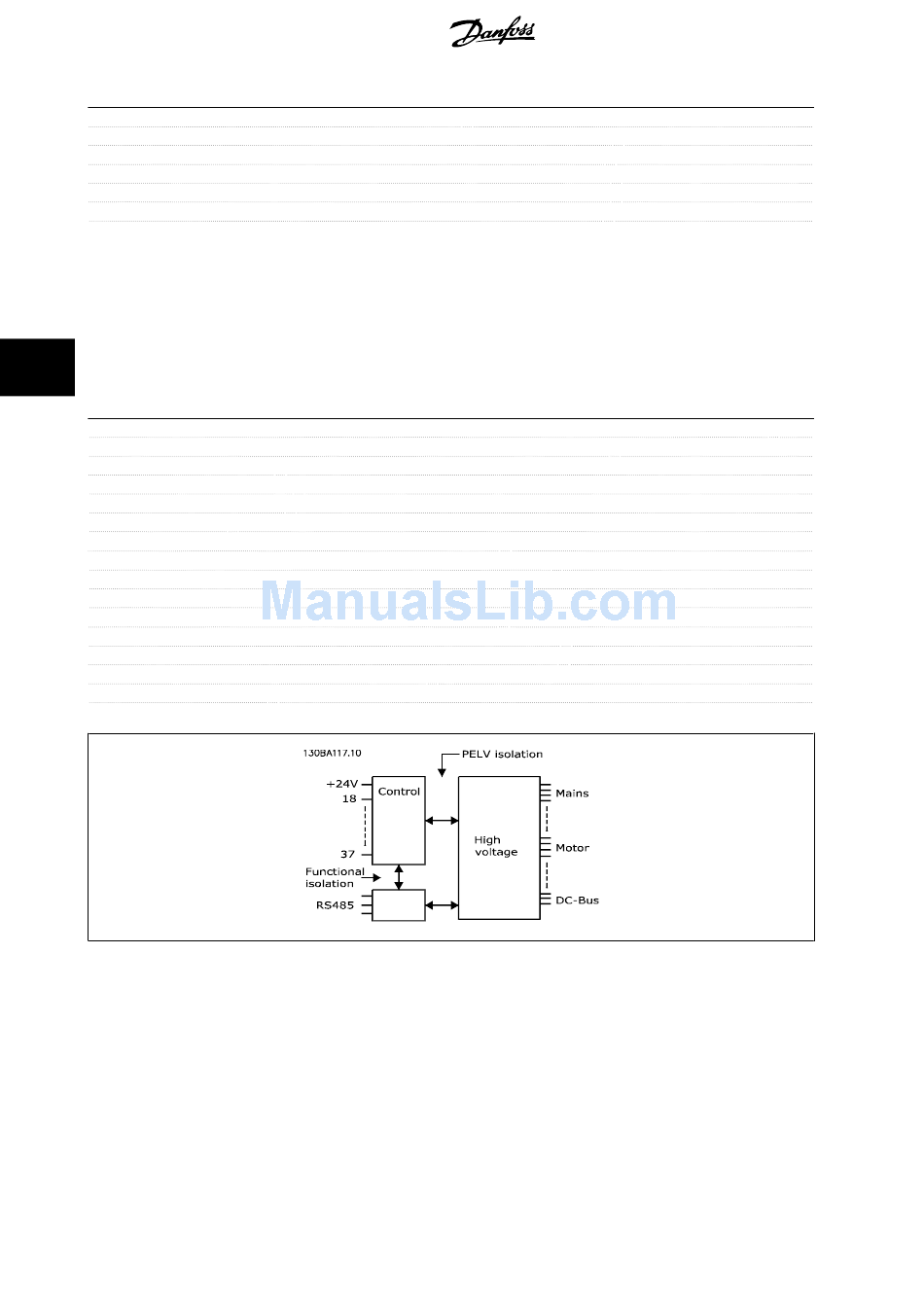

The analog inputs are galvanically isolated from the supply voltage (PELV) and other high-voltage terminals.
92
MG.33.AC.02 - VLT is a registered Danfoss trademark
®
VLT AutomationDrive FC 300 Operating
Voltage or current
Switch S201 and switch S202
Switch S201/switch S202 = OFF (U)
FC 301: 0 to + 10/ FC 302: -10 to +10 V (scaleable)
Switch S201/switch S202 = ON (I)
0/4 to 20 mA (scaleable)
Max. error 0.5% of full scale
FC 301: 20 Hz/ FC 302: 100 Hz
Instructions
0 - 24 V DC
< 4 V DC
>20 V DC
50 mA rms
60 mA rms
400 nF
2
53, 54
approx. 10 kΩ
± 20 V
approx. 200 Ω
30 mA
10 bit (+ sign)
