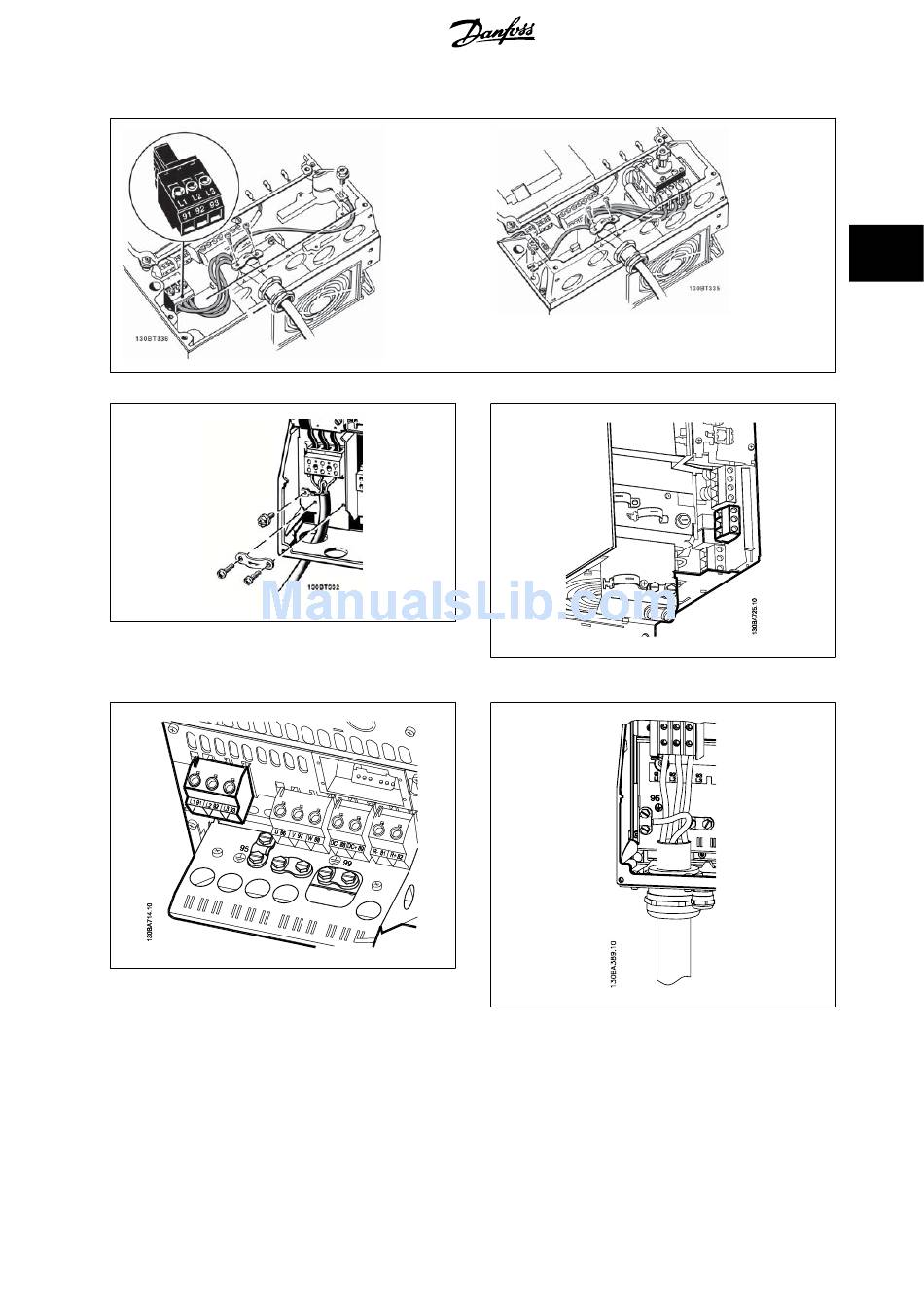

Mains connector frame size A5 (IP 55/66)
When disconnector is used (frame size A5) the PE must be mounted on the left side of the drive.
Illustration 3.2: Mains connection frame sizes B1 and B2 (IP 21/NEMA
Type 1 and IP 55/66/ NEMA Type 12).
Illustration 3.4: Mains connection frame size B4 (IP20).
Illustration 3.3: Mains connection frame size B3 (IP20).
Illustration 3.5: Mains connection frame size C1 and C2 (IP 21/ NEMA
Type 1 and IP 55/66/ NEMA Type 12).
MG.33.AC.02 - VLT is a registered Danfoss trademark
