3.7.4 How to Connect a PC to the frequency converter

To control the frequency converter from a PC, install the MCT 10 Set-up
Software.
The PC is connected via a standard (host/device) USB cable, or via the
RS485 interface as shown in the section
3 ming Guide.
NB!
The USB connection is galvanically isolated from the
supply voltage (PELV) and other high-voltage termi-
nals. The USB connection is connected to protection
earth on the frequency converter. Use only isolated
laptop as PC connection to the USB connector on the
frequency converter.

3.7.5 The FC 300 PC Software

Data storage in PC via MCT 10 Set-Up Software:
1. Connect a PC to the unit via USB com port
2. Open MCT 10 Set-up Software
3. Select in the "network" section the USB port
4. Choose "Copy"
5. Select the "project" section
6. Choose "Paste"
7. Choose "Save as"
All parameters are now stored.
36
Bus Connection in the Program-
MG.33.AC.02 - VLT is a registered Danfoss trademark
®
VLT AutomationDrive FC 300 Operating

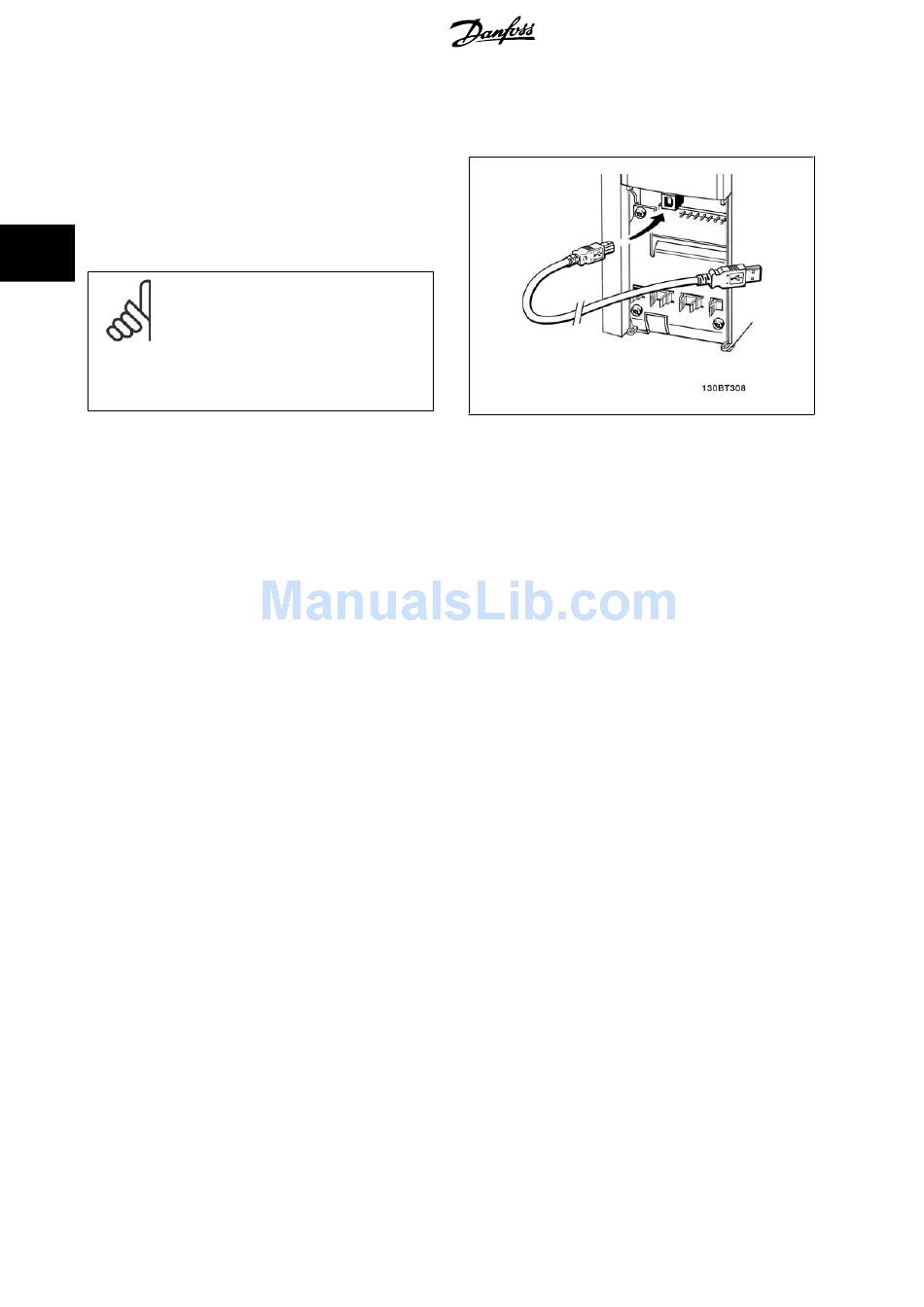

Illustration 3.22: USB connection.
Data transfer from PC to drive via MCT 10 Set-Up Software:
1. Connect a PC to the unit via USB com port
2. Open MCT 10 Set-up software
3. Choose "Open"– stored files will be shown
4. Open the appropriate file
5. Choose "Write to drive"
All parameters are now transferred to the drive.
A separate manual for MCT 10 Set-up Software is available.
Instructions
