Performance Verification
Spurious Response with
Signal
90
1. Connect the RF generator to the RSA6100A RF Input, as shown in the
following figure.

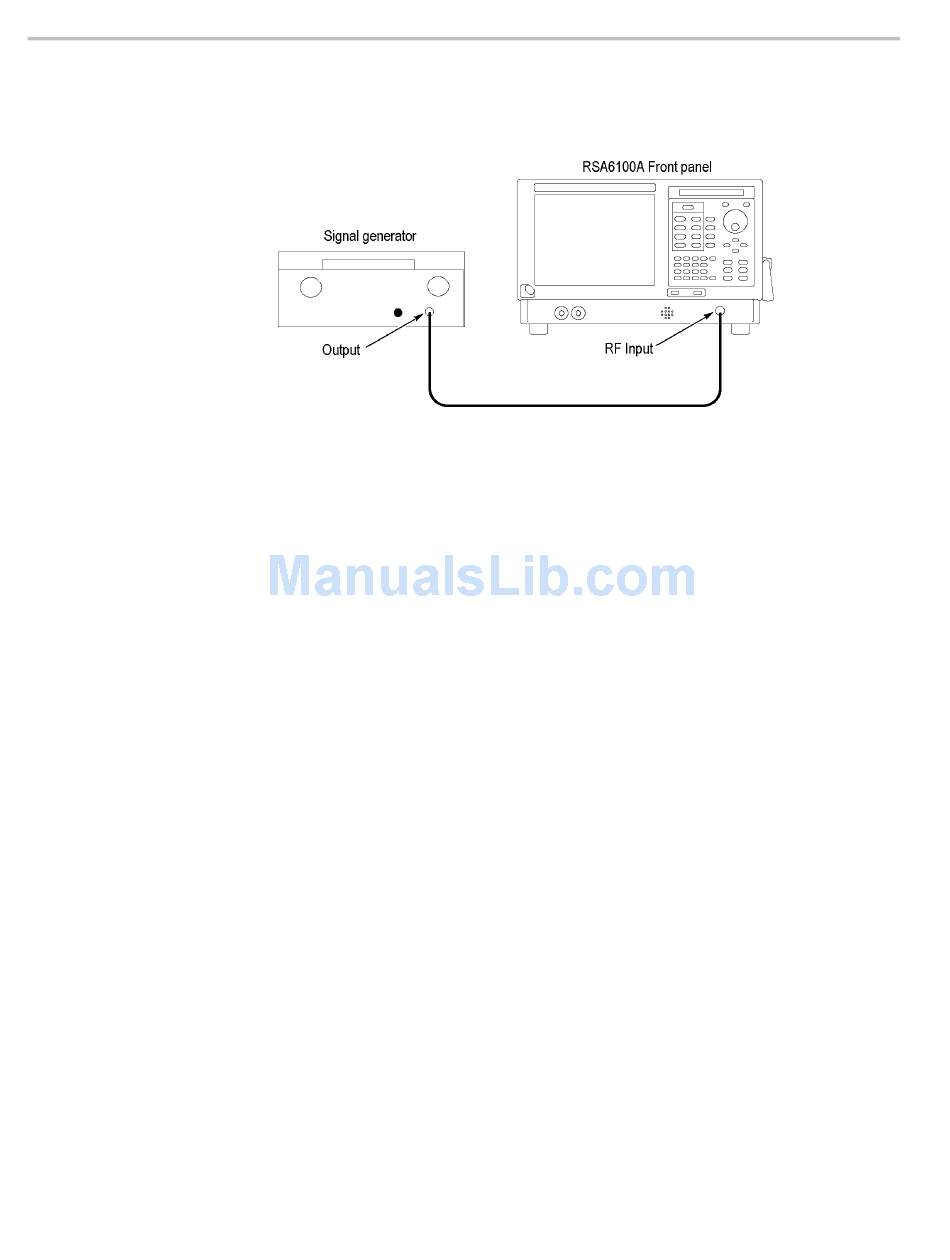

Figure 15: Equipment connections for Signal Spurious check

2. Reset the RSA6100A to factory defaults; by pressing the Preset button, or
selecting Preset from the Setup menu.
3. Set the RSA6100A:
Center Frequency
Reference Level
Span
RBW
Attenuator
Averages
4. Set the RF generator:
Output Level
Output Frequency
5. Check that all signals within ±20 MHz of the Center Frequency are <–73 dBc.
6. (Option 110 only) Set the RSA6100A Span to 110 MHz.
7. Check that all signals within ±55 MHz of the Center Frequency are <–73 dBc.
8. Enter Pass or Fail into the test record.
1 GHz
–15 dBm
40 MHz
1 kHz
10 dB
100
–15 dBm
1 GHz
