Altronix eBridge1CRT Installation Manual page 3

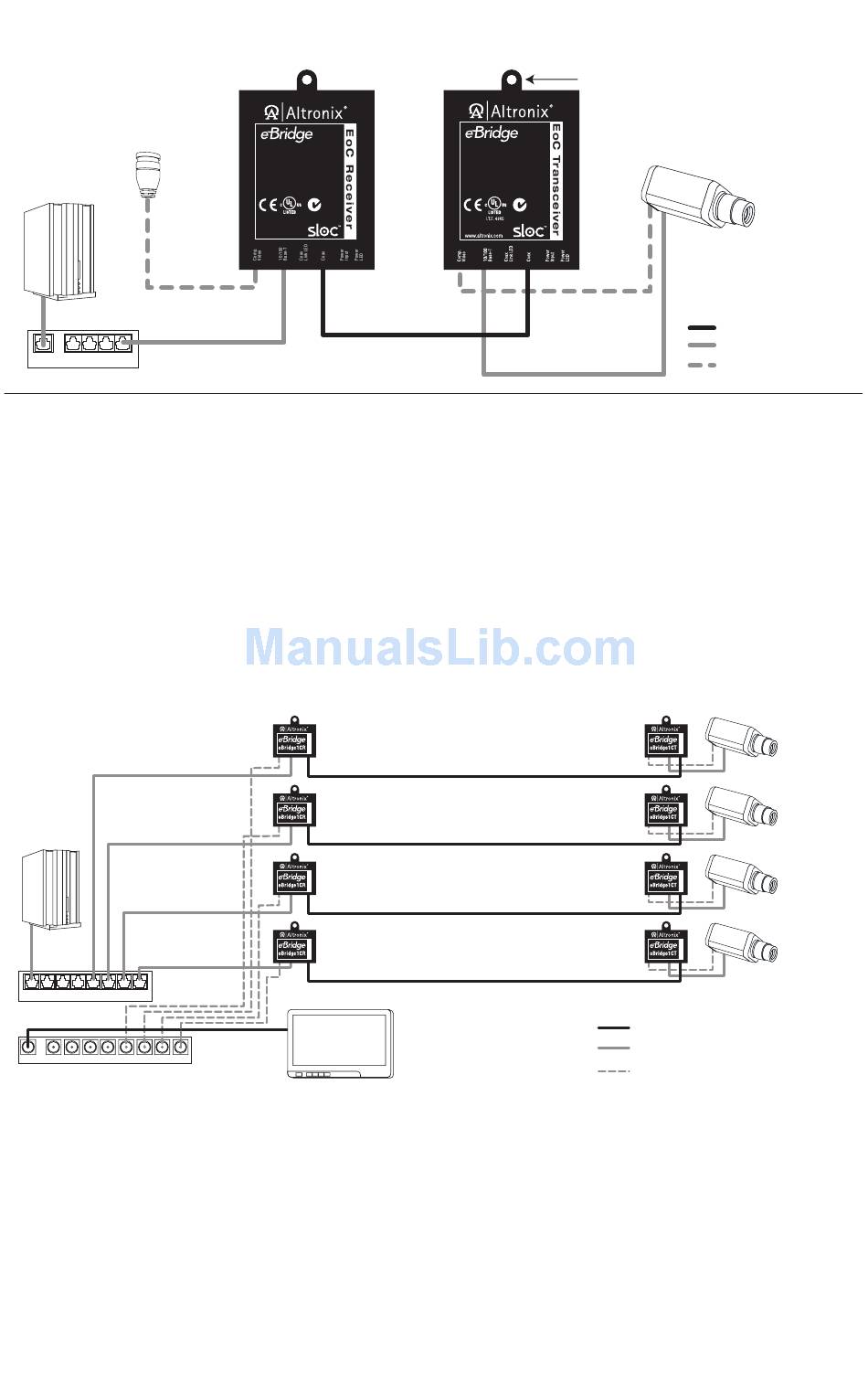

Single IP Camera Shown With Composite Video Option:
Fig. 2
NVR Network
To Monitor
Video Server
(Head End
Equipment)
Composite
Ethernet Switch
Currently Matrix Switchers, DVRs and NVRs do not readily accommodate multi-picture (Matrix) moni-
tor display capability (typically 4X4 – 16 channel display) for some of the higher resolution cameras.
In addition HD cameras use a wide screen format (16:9 aspect ratio). This may not fit as well into the
matrix display as the standard screen format (4:3 aspect ratio). In addition high resolution multichannel
recording can introduce unacceptable latency in the real-time monitor display.
To achieve high resolution recording along with real-time multi-channel viewing: Record the high reso-
lution IP video via the NVR and the simultaneous composite video via the Matrix switcher to achieve
proper display format (Fig. 3, pg. 3).
Multiple IP Cameras Shown With Composite Video Option:
Fig. 3
NVR Network
Video Server
(Head End
Equipment)
Ethernet Switch
Matrix Switch
eBridge1CRT
eBridge1CR
eBridge1CR
Input: 12VDC/275mA, 24VDC/110mA,
16VAC/375mA, 24VAC/200mA.
Blue LED Coax link status.
RJ45 LEDs Yellow - Speed
Green - Activity
Green LED Power
Z1409
I.T.E. 43KC
www.altronix.com
Video
Cable
Up to 100m
Solutions and Installation Notes:
Fig. 2a
eBridge1CT
eBridge1CT
Input: 12VDC/275mA, 24VDC/110mA,
16VAC/375mA, 24VAC/200mA.
Blue LED Coax link status.
RJ45 LEDs Yellow - Speed
Green - Activity
Green LED Power
Z1409
Up to
500m
Up to 500m
Up to 500m
Up to 500m
Up to 500m
Monitor
Mounting Hole
IP Camera
(external power
required).
Comp. Video
Cable
Coax
Structured Cable
Up to 100m
Composite Video Cable
IP Camera*
IP Camera*
IP Camera*
IP Camera*
* External power
required for
cameras
Coax
Structured Cable
Composite Video Cable
- 3 -
