Altronix NetWay3024P Installation Manual

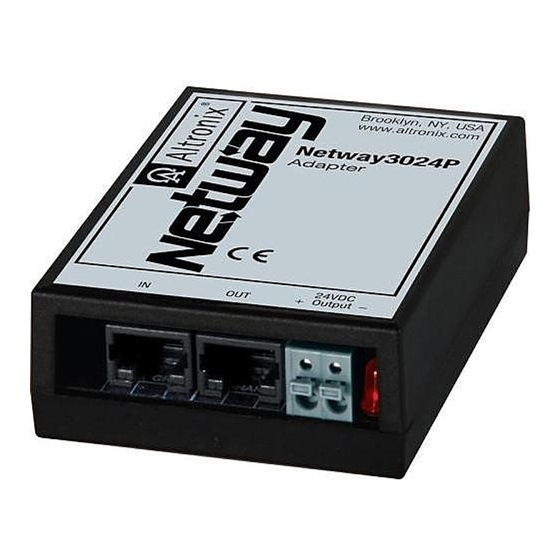

Altronix Netway3024P provides simultaneous 24VDC and PoE/PoE+ outputs for applications including PoE cameras
and external microphones, control boards, switching equipment, and more.
For 12VDC @ up to 2A see model NetWay3012P.

Agency Listings:

• CE European Conformity.

Input:

• PoE+ (30W).

Output:

• 24VDC up to 1A
• 25W max combined.

PoE:

• PoE+ Mode "A / B" compliant.

Features:

• Power LED indicator.
• Auto detection and protection of legacy
non-PoE cameras/devices.
• Speed: 10/100 Mbps.
• Compact insulated housing.
• Spring terminals.
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes
and authorities having jurisdiction.
1. Mount NetWay3024P in proximity to IP device utilizing mounting hole (Fig. 1, pg. 2).
Use a proper fastener and/or wall anchor when securing NetWay3024P to the wall.
2. Connect structured cable from port marked [PoE IN] on NetWay3024P to port marked [OUT] of PoE Switch or
Midspan (Fig. 1, pg. 2).
3. Connect structured cable from port marked [PoE OUT] on NetWay3024P to the IP device (Fig. 1, pg. 2).
4. Connect 24VDC output from NetWay3024P terminals marked [+ 24VDC Output –] to the power input of the IP
device (Fig. 1, pg. 2). Polarity must be observed.
5. Power LED indicator will illuminate on NetWay3024P under normal conditions (Fig. 1, pg. 2).
NetWay3024P
PoE+ Adapter/Converter
Installation Guide

Overview:

Features:

Installation Instructions:

Physical and Environmental:

• Dimensions (W x L x H approx.):
3.8" x 2.5" x 1" (96.5mm x 63.5mm x 25.4mm).
• Weight (approx.): 0.2 lb. (0.1 kg)
• Temperature:
Operating: 0ºC to 50ºC (32ºF to 122ºF)
Storage: – 40ºC to 70ºC (– 40ºF to 158ºF)
• Relative Humidity: 85% +/– 5%
• Operating Altitude: – 304.8 to 3,048m
