Altronix eBridge1CRT Installation Manual page 4

Fig. 4
eBridge1CR
NVR Network
eBridge1CR
Video Server
Input: 12VDC/275mA, 24VDC/110mA,
(Head End
Blue LED
RJ45 LEDs Yellow - Speed
Equipment)
Green LED Power
Up to
100m
Ethernet Switch
Coax
Structured Cable
Power Connection
*Note: Multiple cameras require higher bandwidth and headend equipment processing speed. It is
advised to test this configuration. eBridge is rated to pass 25Mbps of data at distances up to 500m. With
proper headend equipment multiple Megapixel cameras can be used.
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IIeBridge1CRT
- 4 -

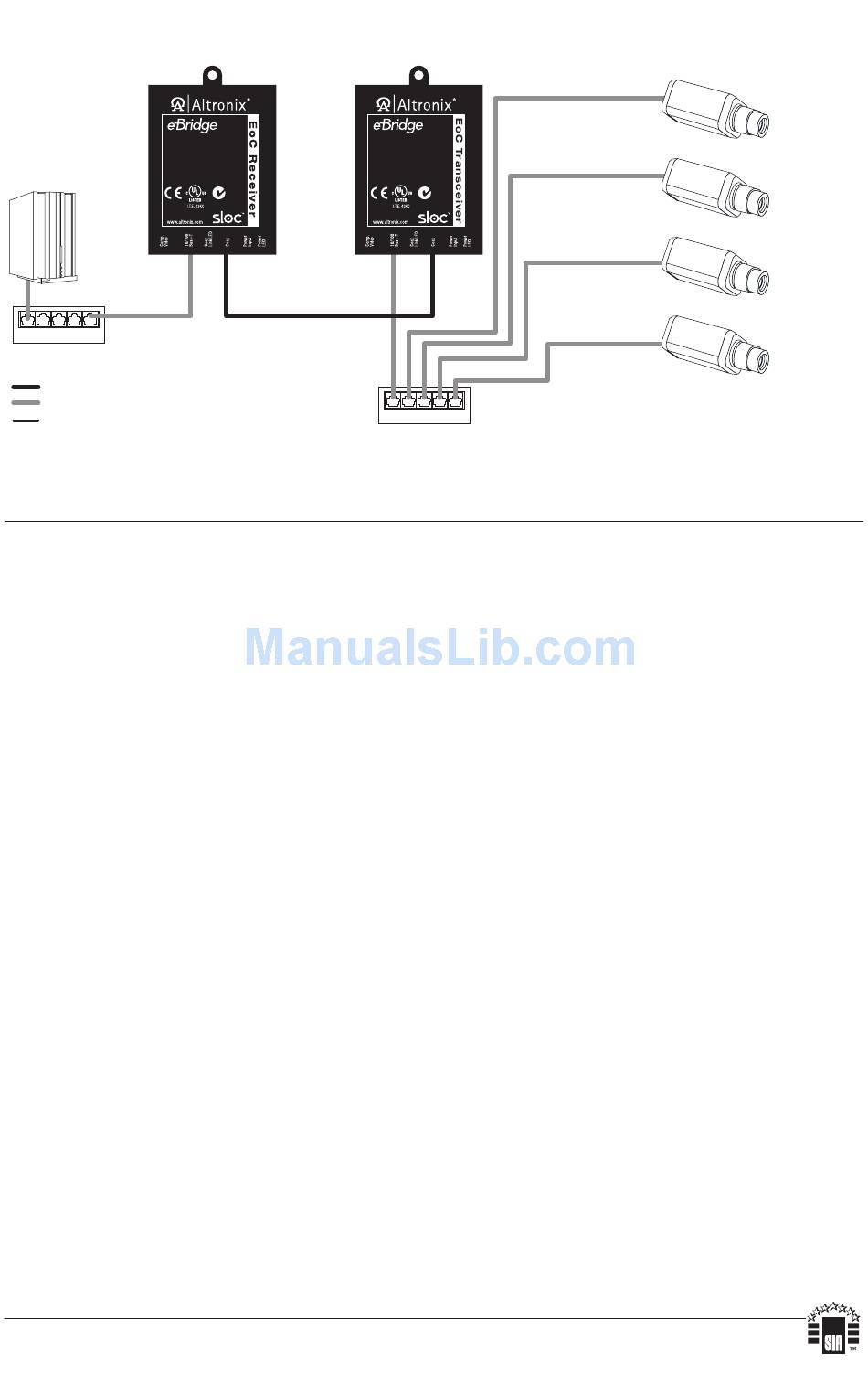

Multiple IP Cameras Over a Single Coax:
eBridge1CT
16VAC/375mA, 24VAC/200mA.
Coax link status.
Green - Activity
Z1409
Up to
500m
Up to
100m
eBridge1CT
Input: 12VDC/275mA, 24VDC/110mA,
16VAC/375mA, 24VAC/200mA.
Blue LED Coax link status.
RJ45 LEDs Yellow - Speed
Green - Activity
Green LED Power
Up to
Z1409
100m
Up to
100m
Ethernet Switch
Notes:
H08Q
Up to
100m
Up to
100m
* External power
required for cameras
IP Camera*
IP Camera*
IP Camera*
IP Camera*
MEMBER
eBridge1CRT
