Below are the basic steps for installing the transceiver. Detailed instructions are given in "INSTALLA-
TION" on Page 14 of this guide.
1. Install and connect the antenna system to the radio
• Use good quality, low-loss coaxial cable. Keep the feedline as short as possible.
• Preset directional antennas in the direction of desired transmission.
2. Connect the data equipment to the radio's INTERFACE connector
• Connection to the radio must be made with a DB-25 Male connector. Connections for typical sys-
tems are shown below.
• Connect only the required pins. Do not use a straight-through RS-232 cable with all pins wired.
• Verify the data equipment is configured as DTE. (By default, the radio is configured as DCE.)
GND
TXD
RXD
RTS
CTS
DSR
GND
DCD
3. Apply DC power to the radio
• Observe proper polarity. The red wire is the positive lead; the black is negative.
4. Set the radio's basic configuration with a Hand-Held Terminal (HHT)
• Set the baud rate/data interface parameters as follows. Use the BAUD xxxxx abc command,
where xxxxx equals the data speed and abc equals the communication parameters as follows:
a = Data bits (7 or 8)
b = Parity (N for None, O for Odd, E for Even
c = Stop bits (1 or 2)
(Example: BAUD 9600 8N1 ) NOTE: 7N1, 8E2 and 8O2 are invalid data parameters.
5. Verify proper operation by observing the LED display
• Refer to Table 4 on Page 26 for a description of the status LEDs.
• Refine directional antenna headings for best received signal strength using the RSSI command.
• If difficulties are encountered, please refer to Table 14 on Page 56 for troubleshooting help.
QUICK START GUIDE

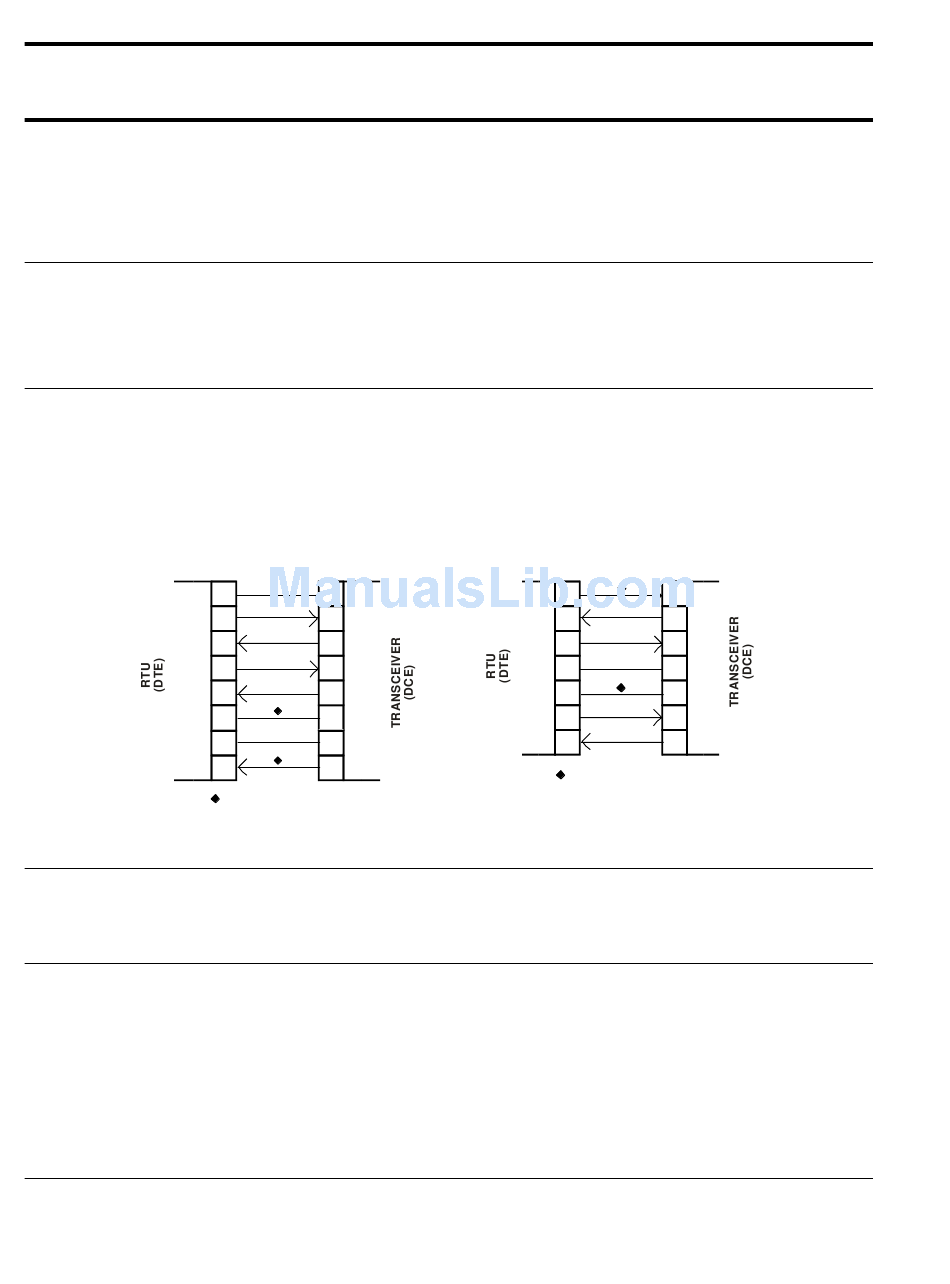

DB-25 to DB-25 Example
DB-25 DB-25
1 1
GND
2 2 TXD
3 3 RXD
4 4
4 RTS
5
5
5 CTS
DSR
6 6
GND
20 7 7
8 8 DCD
As required for application
DB-9 to DB-25 Example
DB-9 DB-25
1 8
DCD DCD
RXD 2 3 RXD
TXD 3 2 TXD
5
7
GND 5 GND
6
6 DSR
DSR 20
4
RTS
RTS 7
8 5 CTS
CTS
As required for application
