7.3 Performing Network-Wide Remote Diagnostics

Diagnostics data from a remote radio can be obtained by connecting a
laptop or personal computer running MDS Network Management Soft-

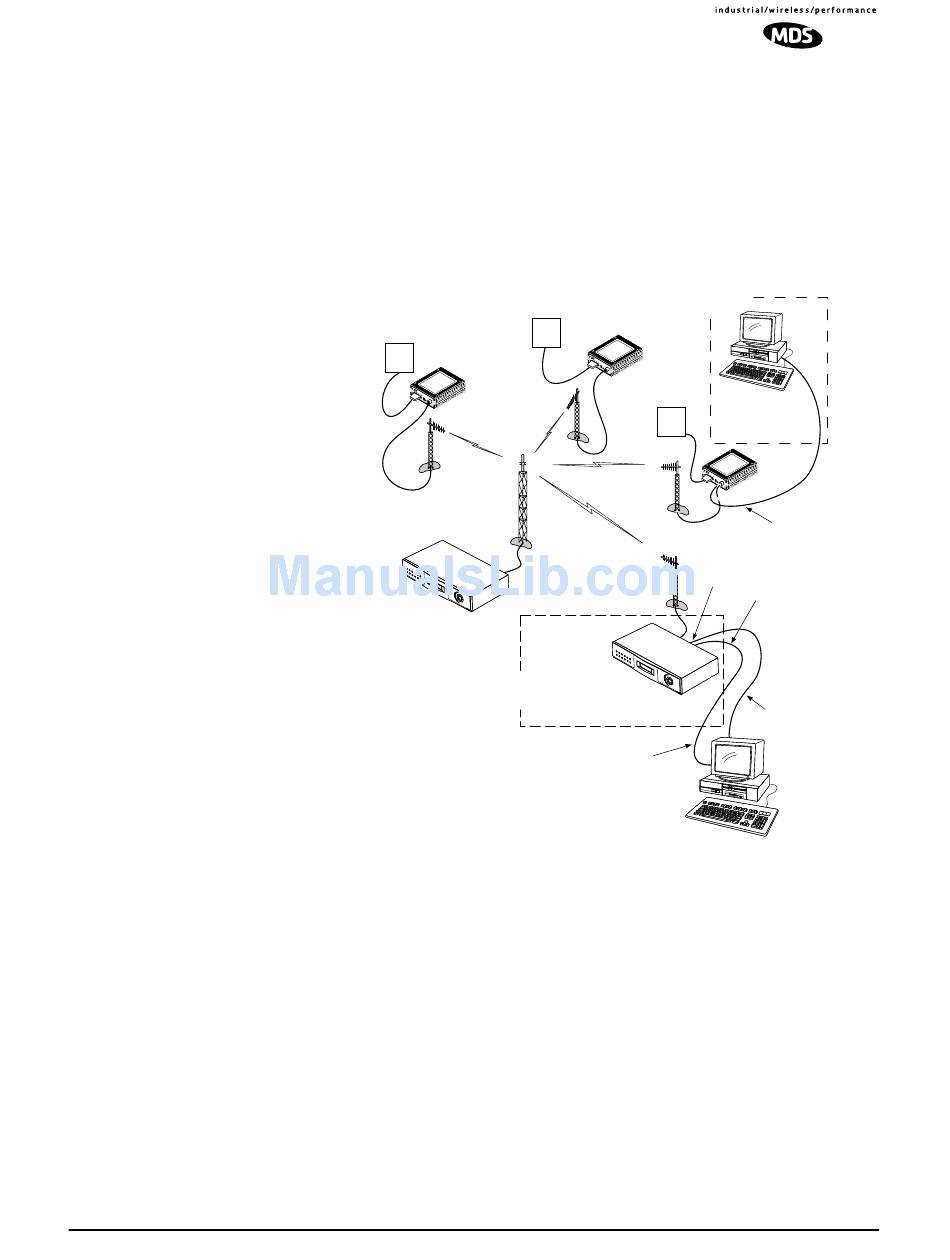

ware to any radio in the network. Figure 30 shows an example of a setup
for performing network-wide remote diagnostics.
RTU
REPEATER
ROOT NODE OPERATION
passive messaging (preferred)
Figure 26. Network-Wide Remote Diagnostics Setup
If a PC is connected to any radio in the network, intrusive polling
(polling which briefly interrupts payload data transmission) can be per-
formed. To perform diagnostics without interrupting payload data trans-
mission, connect the PC to a radio defined as the "root" radio. A radio
is defined as a root radio using the
radio.
