3. INSTALLATION

3-5. Installing the operation panel

3040B

3041B

BAS-311H

Gently return the machine head to its

original position.

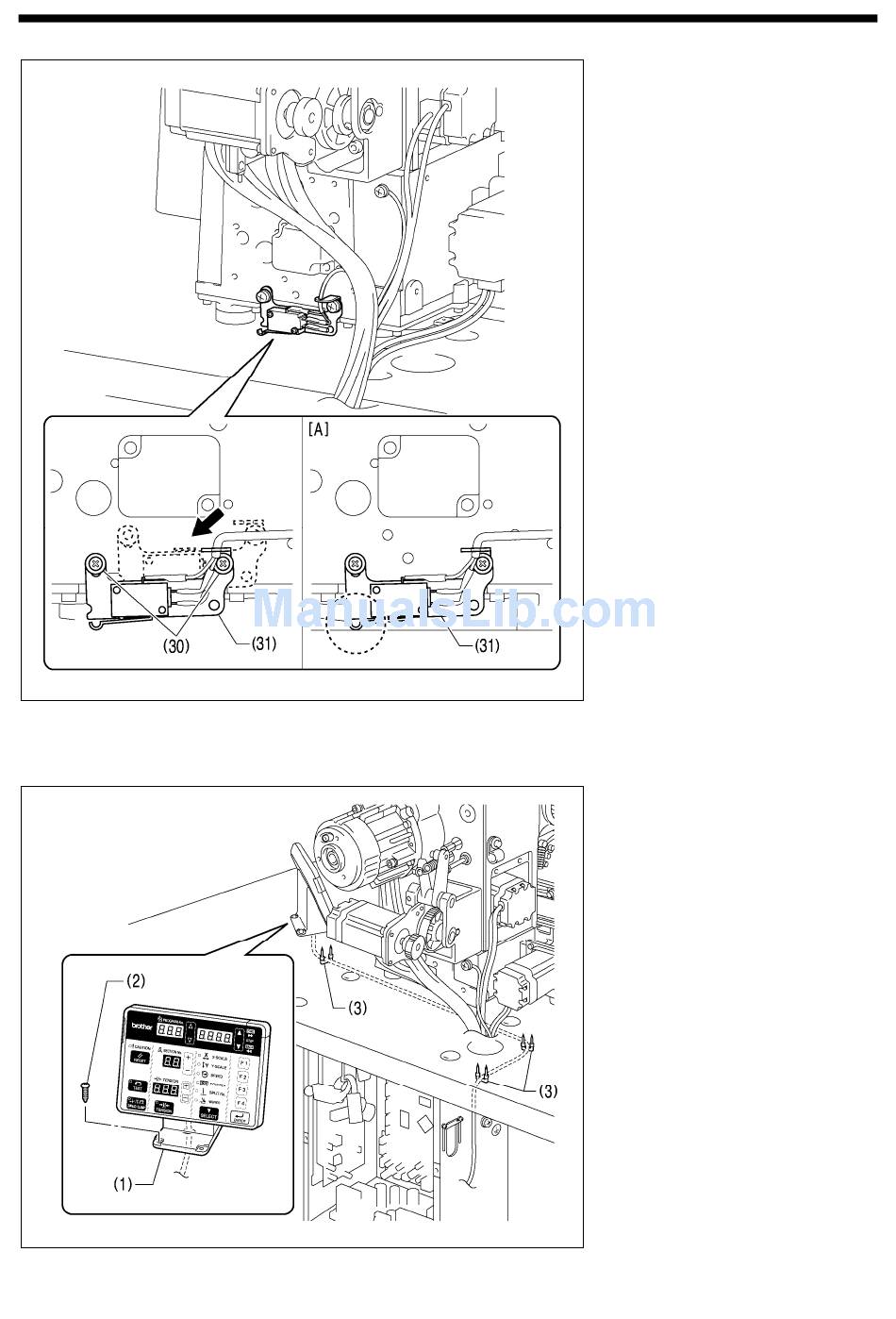

1. Remove the two screws (30), and

then temporarily remove the machine

head switch (31).

2. Use the two screws (30) which were

removed to install the machine head

switch (31) in the position shown in

the illustration.

3. Check that the machine head switch

as turned on as shown in figure [A].

* If the machine head switch is not

turned on, adjust the installation

position while referring to "3-17.

Checking the machine head switch".

(1) Operation panel

(2) Wood screws [4 pcs]

* Pass the panel cord through the

hole in the table, and then insert it

into the control box through the

hole in the side of the control box.

(3) Staples [3 pcs]
