6.3.3. Fast check IVCK without irradiance measurement

 The maximum voltage among inputs P1, P2, C1 and C2 is 1000V DC (for I-
V400w and SOLAR I-Vw) or 1500V (for I-V500w and SOLAR I-Ve). Do not
measure voltages exceeding the limits expressed in § 10.2
 The maximum current allowable for the instrument is 15A. Do not effect tests
in parallel on FV module strings.
 Never effect tests on modules or FV strings connected to DC/AC converter.
1. Turn on the instrument pressing ON/OFF
2. Check that remote unit SOLAR-02 is not selected (see § 5.1.4– setting NO)
3. Check that the value of minimum irradiance set in the section "Irradiance" (see §5.1.5)
is equal to 0
4. Go back to main MENU and select "I-V"
5. Select "I-V" and press ENTER to enter the section of FV module performance
measurement. Generally when selecting I-V on general menu the instrument automatically
shows the last mode under use (I-V or IVCK).
6. In case the current mode is not IVCK, press ENTER,
select "Measurement " by means of arrow keys
(,). Use the arrow key  to enter the internal
submenu, select "IV Check" and confirm pressing
ENTER to start up the initial screen of fast check IVCK.
7. Check the preliminary settings based on descriptions of § 6.3.2
8. Connect the instrument to the module/string under test as shown in the following
picture. In particular connect the negative pole of the module/string to terminals P1, C1
and it positive pole to terminals P2, C2. In Auto activation mode is recommended the
use of KITKELVIN optional accessory

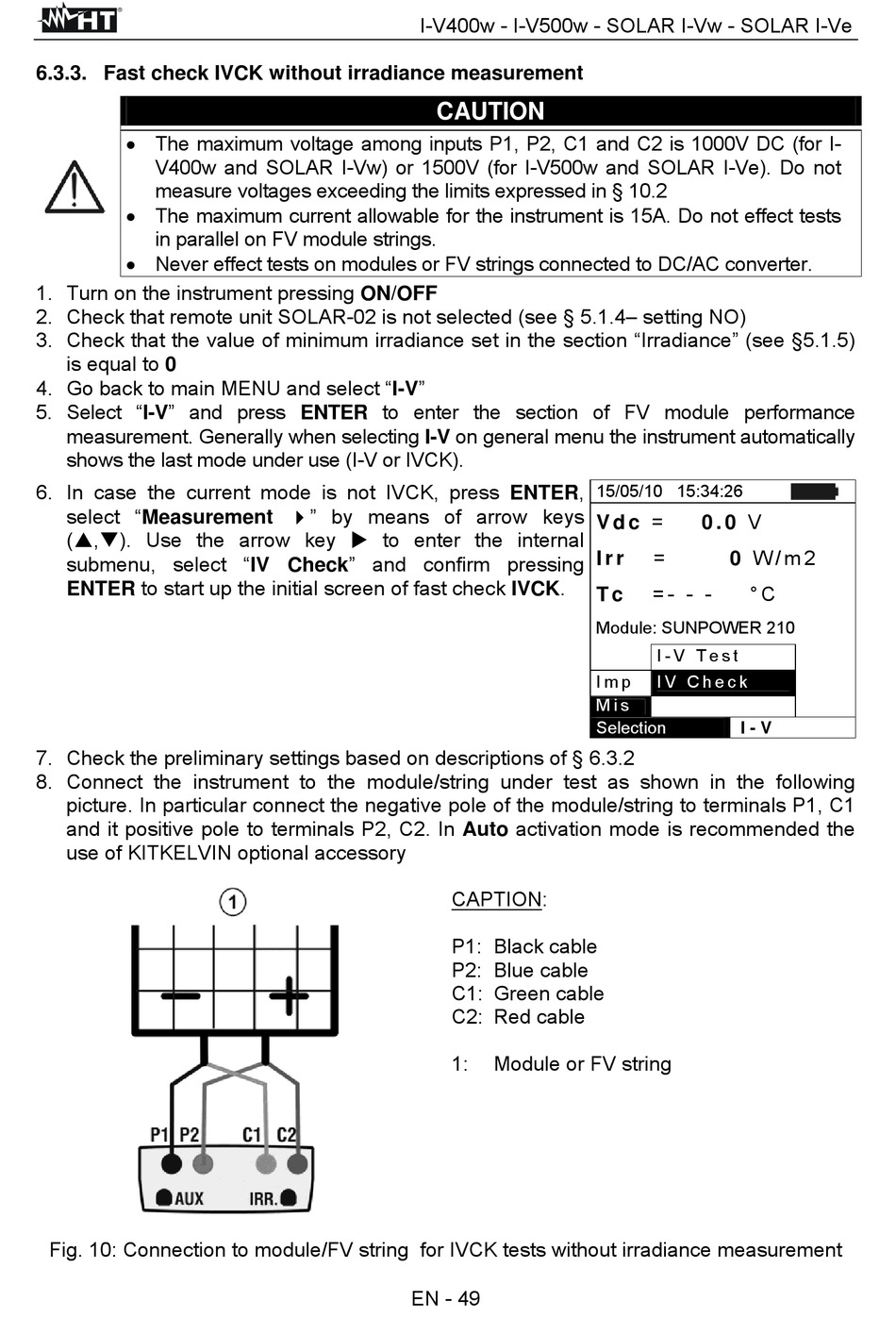

Fig. 10: Connection to module/FV string for IVCK tests without irradiance measurement
I-V400w - I-V500w - SOLAR I-Vw - SOLAR I-Ve
CAUTION
CAPTION:
P1: Black cable
P2: Blue cable
C1: Green cable
C2: Red cable
1: Module or FV string
EN - 49
