HT VEGA78 User Manual
  1. Manuals
  2. Brands
  3. HT Manuals
  4. Measuring Instruments
  5. VEGA78
  6. User manual

HT VEGA78 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PowerMeterStore
1.888.610.7664
www.
.com
Shop for Power Metering products online at:
 Copyright HT ITALIA 2017
Release EN 1.06 - 02/05/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGA78 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HT VEGA78

Summary of Contents for HT VEGA78

  • Page 1 PowerMeterStore 1.888.610.7664 www. .com Shop for Power Metering products online at:  Copyright HT ITALIA 2017 Release EN 1.06 - 02/05/2017...

  • Page 2: Table Of Contents

    VEGA78 Table of contents: PRECAUTIONS AND SAFETY MEASURES ............. 4     1.1.  General ..........................4  1.2.  Preliminary instructions ......................4  1.3.  During use ..........................5  1.4.  After use ..........................5  GENERAL DESCRIPTION ..................6     2.1.  Introduction ........................... 6 ...
  • Page 3 VEGA78     5.4.11. During a recording ........................55 5.5.  Saved data management section ..................56      5.5.1. Recording analysis (Reg type) ....................57     5.5.1.1. Recording information ........................57     5.5.1.2. Recording graph ..........................58  ...
  • Page 4 VEGA78 10.5.  Measuring method: outlines ..................101      10.5.1. Integration period ........................101     10.5.2. Power factor calculations ......................101 AFTER-SALE SERVICE ..................102     11.1.  Warranty ........................102  11.2.  Service .......................... 102  PowerMeterStore 1.888.610.7664 www. .com...

  • Page 5: Precautions And Safety Measures

    VEGA78 1. PRECAUTIONS AND SAFETY MEASURES 1.1. GENERAL This meter has been designed in compliance to IEC/EN61010-1 directive. For your own safety and to avoid damaging the instrument we suggest you follow the procedures hereby prescribed and to read carefully all the notes preceded by the symbol Before and during measurements please take care of below points: ...

  • Page 6: During Use

    VEGA78 1.3. DURING USE Please read carefully the below points: CAUTION Should you fail to keep to the prescribed instructions you could damage the instrument and/or its components or endanger your safety.  Do not touch any unused terminal when the meter is connected to the circuit on test.

  • Page 7: General Description

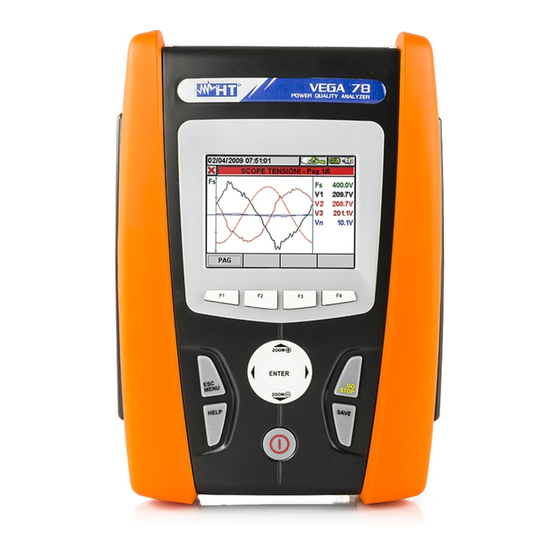

    2.1. INTRODUCTION The VEGA78 meter permits a completely new approach to the world of electrical measures on network quality. In fact the computer assisted instruments along with Windows CE technology permit an easy and widely fast analysis of a huge quantity of data, which would be impossible with any other system.
