5.2.2.3.

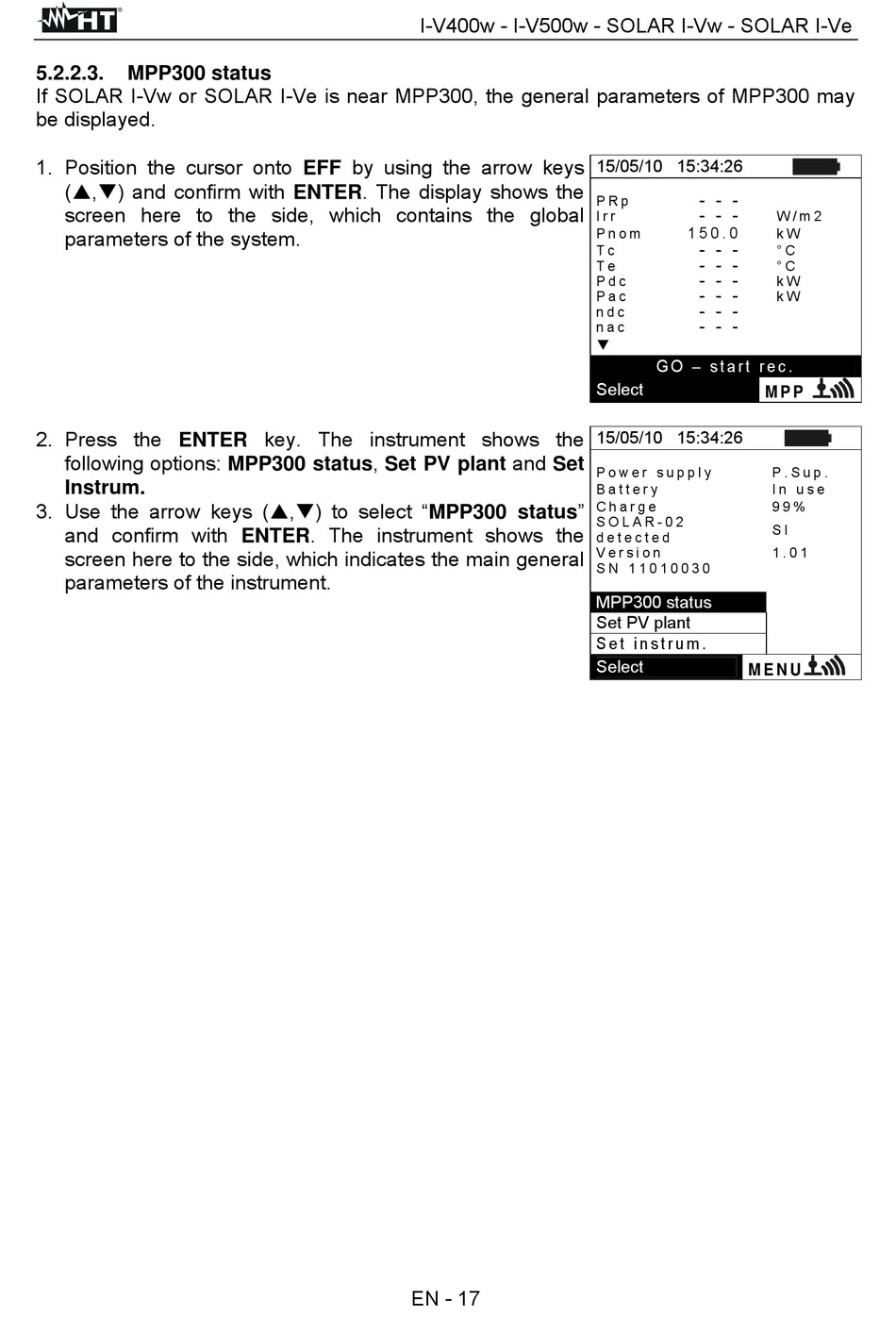

MPP300 status

If SOLAR I-Vw or SOLAR I-Ve is near MPP300, the general parameters of MPP300 may
be displayed.
1. Position the cursor onto EFF by using the arrow keys
(,) and confirm with ENTER. The display shows the
screen here to the side, which contains the global
parameters of the system.
2. Press the ENTER key. The instrument shows the
following options: MPP300 status, Set PV plant and Set
Instrum.
3. Use the arrow keys (,) to select "MPP300 status"
and confirm with ENTER. The instrument shows the
screen here to the side, which indicates the main general
parameters of the instrument.
