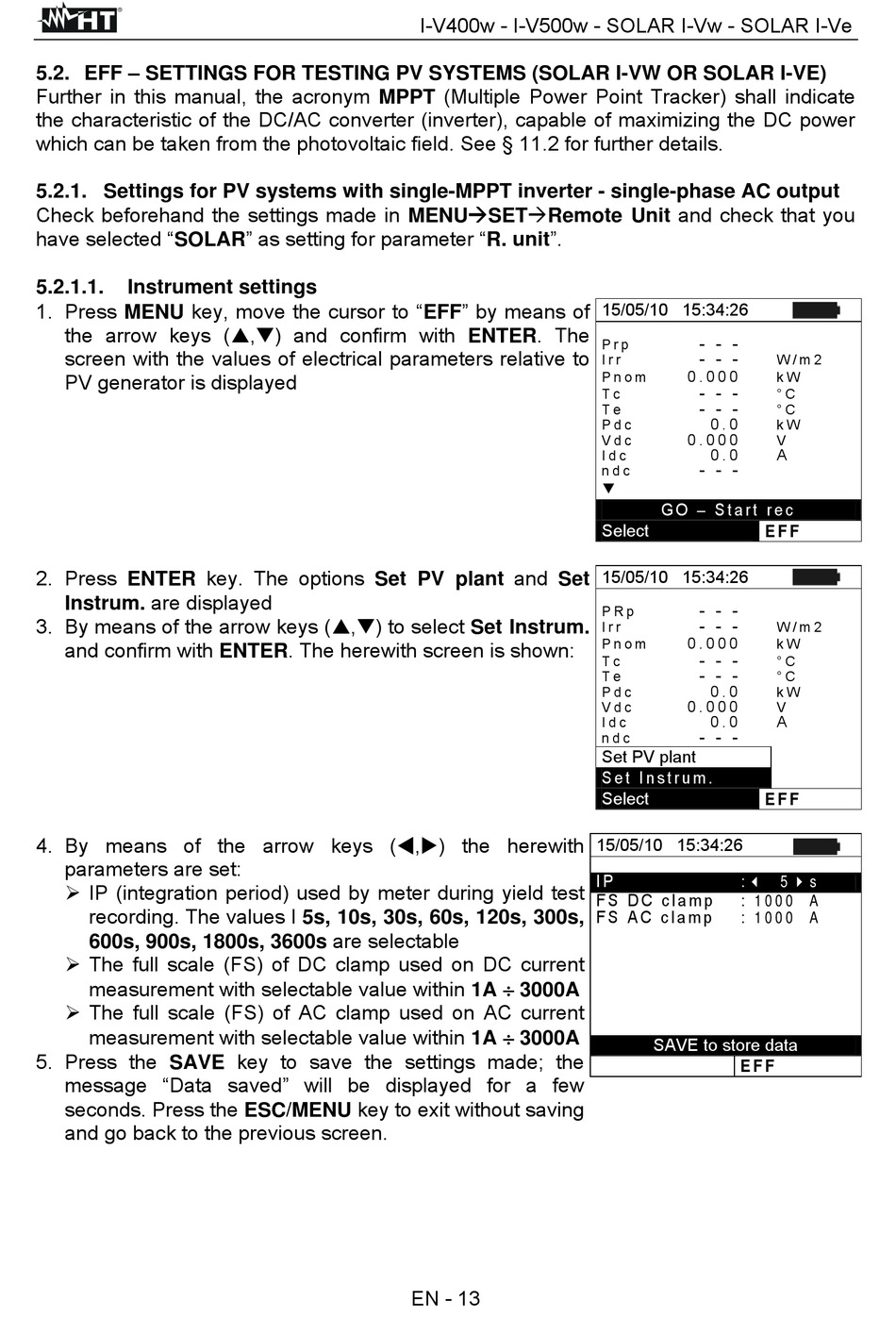

5.2. EFF – SETTINGS FOR TESTING PV SYSTEMS (SOLAR I-VW OR SOLAR I-VE)
Further in this manual, the acronym MPPT (Multiple Power Point Tracker) shall indicate
the characteristic of the DC/AC converter (inverter), capable of maximizing the DC power
which can be taken from the photovoltaic field. See § 11.2 for further details.

5.2.1. Settings for PV systems with single-MPPT inverter - single-phase AC output

Check beforehand the settings made in MENUSETRemote Unit and check that you
have selected "SOLAR" as setting for parameter "R. unit".
5.2.1.1.

Instrument settings

1. Press MENU key, move the cursor to "EFF" by means of
the arrow keys (,) and confirm with ENTER. The
screen with the values of electrical parameters relative to
PV generator is displayed
2. Press ENTER key. The options Set PV plant and Set
Instrum. are displayed
3. By means of the arrow keys (,) to select Set Instrum.
and confirm with ENTER. The herewith screen is shown:
4. By means of the arrow keys (,) the herewith
parameters are set:
 IP (integration period) used by meter during yield test
recording. The values I 5s, 10s, 30s, 60s, 120s, 300s,
600s, 900s, 1800s, 3600s are selectable
 The full scale (FS) of DC clamp used on DC current
measurement with selectable value within 1A  3000A
 The full scale (FS) of AC clamp used on AC current
measurement with selectable value within 1A  3000A
5. Press the SAVE key to save the settings made; the
message "Data saved" will be displayed for a few
seconds. Press the ESC/MENU key to exit without saving
and go back to the previous screen.
I-V400w - I-V500w - SOLAR I-Vw - SOLAR I-Ve
EN - 13
15/05/10 15:34:26
- - -
P r p
- - -
I r r
0 . 0 0 0
P n o m
- - -
T c
- - -
T e
0 . 0
P d c
0 . 0 0 0
V d c
0 . 0
I d c
- - -
n d c

G O – S t a r t r e c
Select
15/05/10 15:34:26
- - -
P R p
- - -
I r r
0 . 0 0 0
P n o m
- - -
T c
- - -
T e
0 . 0
P d c
0 . 0 0 0
V d c
0 . 0
I d c
- - -
n d c
Set PV plant
S e t I n s t r u m .
Select
15/05/10 15:34:26
I P :  5  s
F S D C c l a m p : 1 0 0 0 A
F S A C c l a m p : 1 0 0 0 A
SAVE to store data
E F F
W / m 2
k W
° C
° C
k W
V
A
E F F
W / m 2
k W
° C
° C
k W
V
A
E F F
