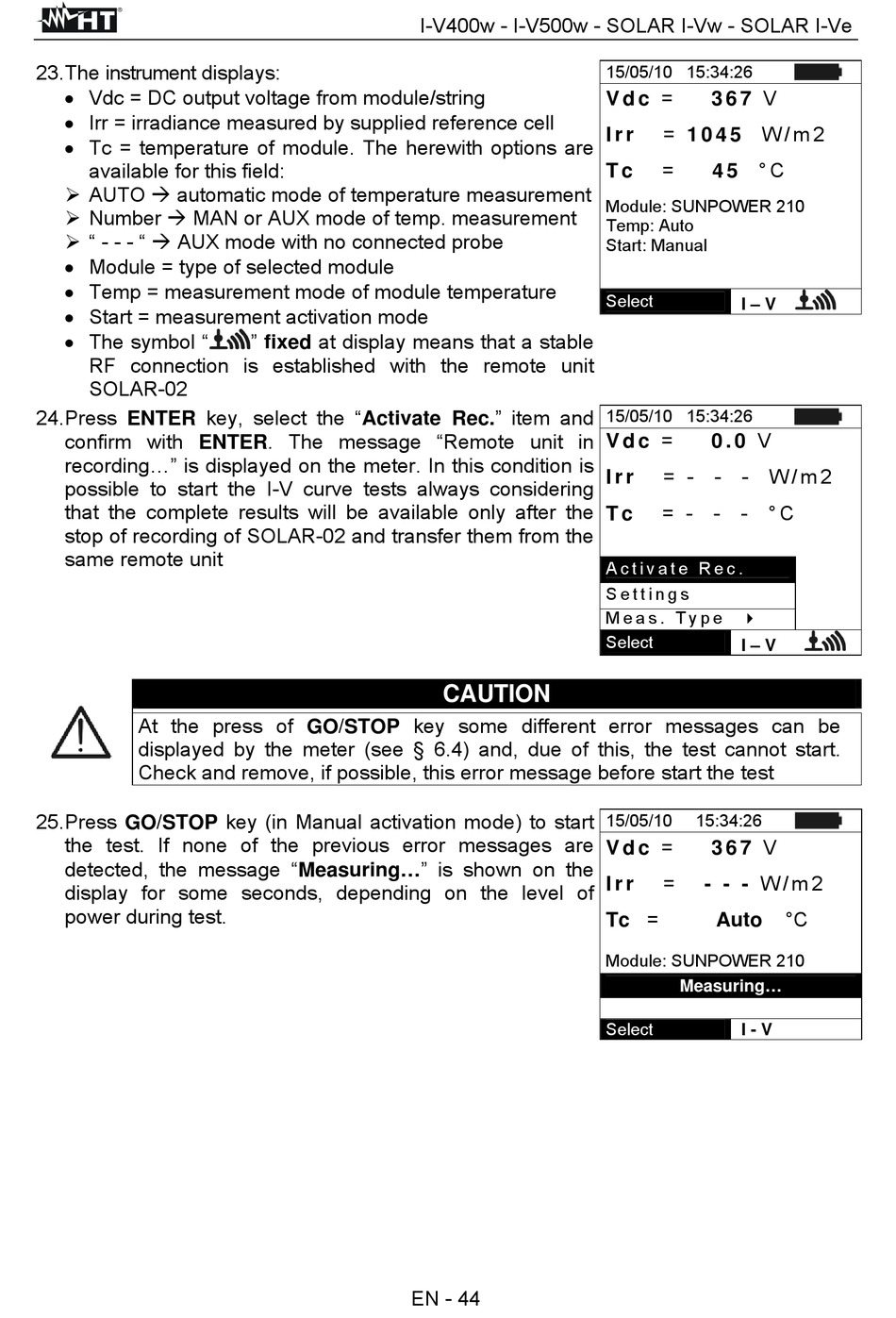

HT SOLAR I-Ww User Manual page 46

23. The instrument displays:
 Vdc = DC output voltage from module/string
 Irr = irradiance measured by supplied reference cell
 Tc = temperature of module. The herewith options are
available for this field:
 AUTO  automatic mode of temperature measurement
 Number  MAN or AUX mode of temp. measurement
 " - - - "  AUX mode with no connected probe
 Module = type of selected module
 Temp = measurement mode of module temperature
 Start = measurement activation mode
 The symbol "
RF connection is established with the remote unit
SOLAR-02
24. Press ENTER key, select the "Activate Rec." item and
confirm with ENTER. The message "Remote unit in
recording..." is displayed on the meter. In this condition is
possible to start the I-V curve tests always considering
that the complete results will be available only after the
stop of recording of SOLAR-02 and transfer them from the
same remote unit
At the press of GO/STOP key some different error messages can be
displayed by the meter (see § 6.4) and, due of this, the test cannot start.
Check and remove, if possible, this error message before start the test
25. Press GO/STOP key (in Manual activation mode) to start
the test. If none of the previous error messages are
detected, the message "Measuring..." is shown on the
display for some seconds, depending on the level of
power during test.
" fixed at display means that a stable
EN - 44
I-V400w - I-V500w - SOLAR I-Vw - SOLAR I-Ve
CAUTION
15/05/10 15:34:26
V d c = 3 6 7 V
= 1 0 4 5 W / m 2
I r r
= 4 5 ° C
T c
Module: SUNPOWER 210
Temp: Auto
Start: Manual
Select
I – V
15/05/10 15:34:26
V d c = 0 . 0 V
= - - - W / m 2
I r r
= - - - ° C
T c
A c t i v a t e R e c .
S e t t i n g s
M e a s . T y p e

Select
I – V
15/05/10 15:34:26
V d c = 3 6 7 V
= - - - W / m 2
I r r
Tc =
Auto
Module: SUNPOWER 210
Measuring...
Select
I - V
°C
