4. DESCRIPTION OF PARTS

4.1. INSTRUMENT DESCRIPTION

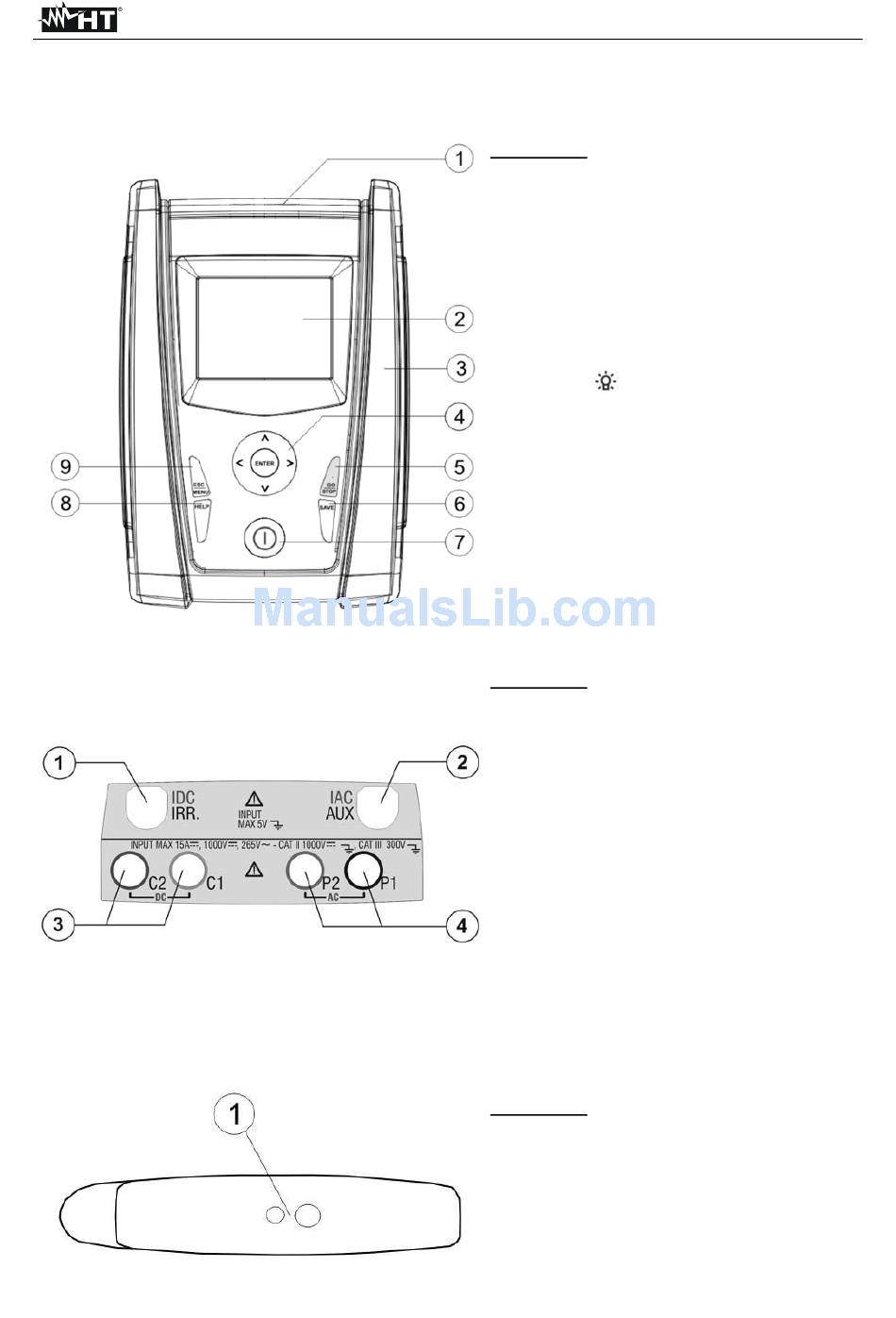

Fig. 1: Description of the front part of the instrument
Fig. 2: Description of the upper part of the instrument
Fig. 3: Description of the instrument's side
I-V400w - I-V500w - SOLAR I-Vw - SOLAR I-Ve
CAPTION:
1. Inputs
2. Display
3. Connector for opto insulated cable
4. Arrows/ENTER key
5. GO/STOP key
6. SAVE key
7. ON/OFF key
8. HELP /
9. ESC/MENU key
CAPTION:
1. Input for irradiance probe (I-V) / DC
transducer clamp (EFF – SOLAR I-
Vw, SOLAR I-Ve)
2. Input for auxiliary temperature probe
(I-V) / AC transducer clamp (EFF –
SOLAR I-Vw, SOLAR I-Ve)
3. C1, C2
measurement
measurement (EFF – SOLAR I-Vw,
SOLAR I-Ve)
4. P1, P2
measurement (I-V) / AC voltage
(EFF – SOLAR I-Vw, SOLAR I-Ve)
CAPTION:
1. Connector for opto insulated cable
connection
EN - 7
key
inputs for
(I-V) / voltage
inputs for voltage
current
