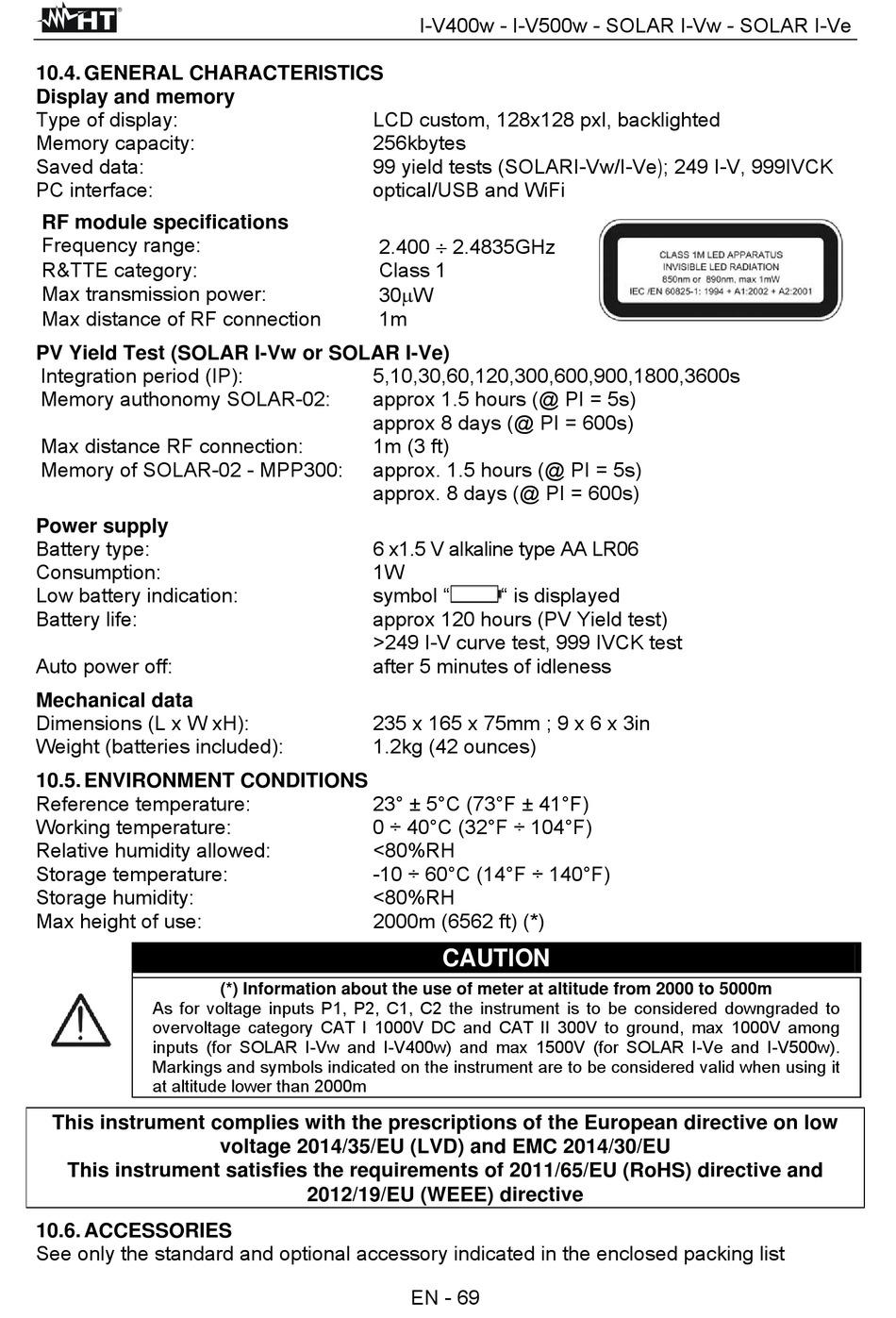

10.4. GENERAL CHARACTERISTICS

Display and memory
Type of display:
Memory capacity:
Saved data:
PC interface:
RF module specifications
Frequency range:
R&TTE category:
Max transmission power:
Max distance of RF connection
PV Yield Test (SOLAR I-Vw or SOLAR I-Ve)
Integration period (IP):
Memory authonomy SOLAR-02:
Max distance RF connection:
Memory of SOLAR-02 - MPP300:
Power supply
Battery type:
Consumption:
Low battery indication:
Battery life:
Auto power off:
Mechanical data
Dimensions (L x W xH):
Weight (batteries included):

10.5. ENVIRONMENT CONDITIONS

Reference temperature:
Working temperature:
Relative humidity allowed:
Storage temperature:
Storage humidity:
Max height of use:
As for voltage inputs P1, P2, C1, C2 the instrument is to be considered downgraded to
overvoltage category CAT I 1000V DC and CAT II 300V to ground, max 1000V among
inputs (for SOLAR I-Vw and I-V400w) and max 1500V (for SOLAR I-Ve and I-V500w).
Markings and symbols indicated on the instrument are to be considered valid when using it
at altitude lower than 2000m
This instrument complies with the prescriptions of the European directive on low
This instrument satisfies the requirements of 2011/65/EU (RoHS) directive and

10.6. ACCESSORIES

See only the standard and optional accessory indicated in the enclosed packing list
LCD custom, 128x128 pxl, backlighted
256kbytes
99 yield tests (SOLARI-Vw/I-Ve); 249 I-V, 999IVCK
optical/USB and WiFi
2.400  2.4835GHz
Class 1
30W
1m
5,10,30,60,120,300,600,900,1800,3600s
approx 1.5 hours (@ PI = 5s)
approx 8 days (@ PI = 600s)
1m (3 ft)
approx. 1.5 hours (@ PI = 5s)
approx. 8 days (@ PI = 600s)
6 x1.5 V alkaline type AA LR06
1W
symbol "
approx 120 hours (PV Yield test)
>249 I-V curve test, 999 IVCK test
after 5 minutes of idleness
235 x 165 x 75mm ; 9 x 6 x 3in
1.2kg (42 ounces)
23° ± 5°C (73°F ± 41°F)
0 ÷ 40°C (32°F ÷ 104°F)
<80%RH
-10 ÷ 60°C (14°F ÷ 140°F)
<80%RH
2000m (6562 ft) (*)
(*) Information about the use of meter at altitude from 2000 to 5000m
voltage 2014/35/EU (LVD) and EMC 2014/30/EU
2012/19/EU (WEEE) directive
I-V400w - I-V500w - SOLAR I-Vw - SOLAR I-Ve
" is displayed
CAUTION
EN - 69
