Operation

Basic Operation
1. Turn the ON/OFF dial switch to power the camera. The power indicator will switch on. The
switch then acts as a dimmer for the two LEDs on the imager head of the camera.
2. Press and hold the monitor power switch for at least 2 seconds and the power indicator will
illuminate green and a Welcome screen will appear.
3. The real time image will then appear on the display LCD monitor.
Note. If the picture does not properly syncronize or has poor color, check that the Video
System Settings are set to "NTSC", not to 'PAL" . This should fix the condition..
4. Use the up arrow to select video
5. Turn the ON/OFF dial to adjust the LED light intensity as desired.
6. The tube can be easily maneuvered into position. The tube can be bent into the shape of the
area to be examined.
7. Use the supplied accessories to help retrieve small items.
LCD Reset
If the BR200/BR250 LCD Monitor will not power ON, or if it powers OFF during use, follow the steps
below to perform a Power Reset:
1. Un-dock the LCD module from the BR200/BR250 pistol-grip base unit.
2. Connect the AC adapter to the LCD module and to the appropriate AC power source.
3. Locate the Power Reset port on the reverse side of the LCD module (labeled Reset).
4. Using a non-metallic object, momentarily press the Power Reset button for a period of 2-to-5
seconds and then release.
5. Leaving the AC adapter connected to the LCD module, attempt to power the unit ON.
6. If the unit powers ON, allow it to fully re-charge (up to 2 hours) before removing the AC
adapter. If the LCD unit does not power ON, repeat steps 1 through 6.
If, after two attempts to reset the LCD, the unit still does not power ON, contact Technical Support.
Taking a Picture
In Photo mode, press OK to take a picture. The photo will automatically save to the SD
card.
Recording a Video

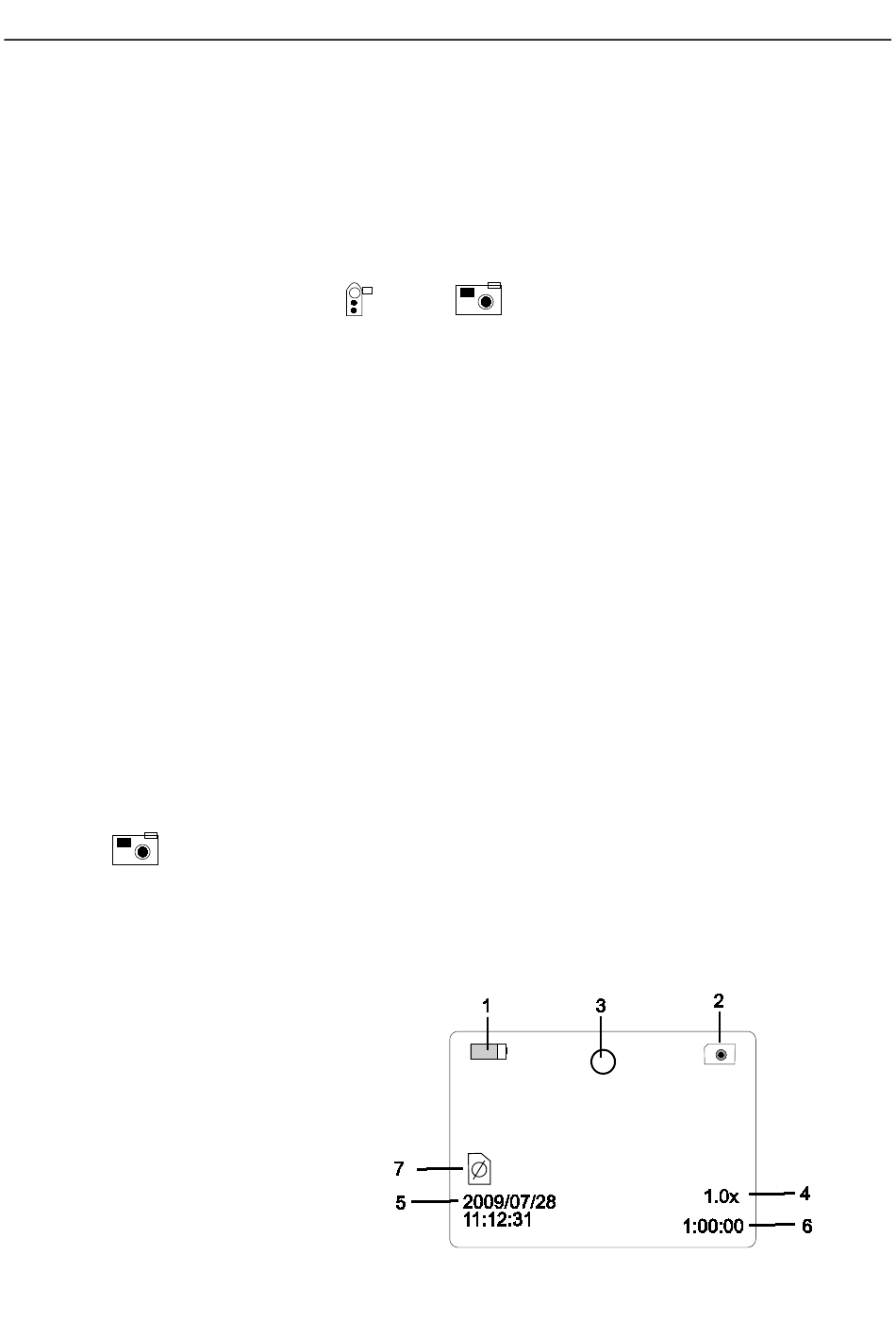

In Real-Time Monitoring (video) mode, press OK to begin recording; refer to the following diagram
for display icon definitions:
1. Battery capacity
2. Function icon (video/photo)
3. Recording in progress
4. ZOOM level
5. Current Date and Time
6. REC Time remaining
7. SD card
or photo mode.
6 BR200-BR250-en-GB_v7.5 4/17
