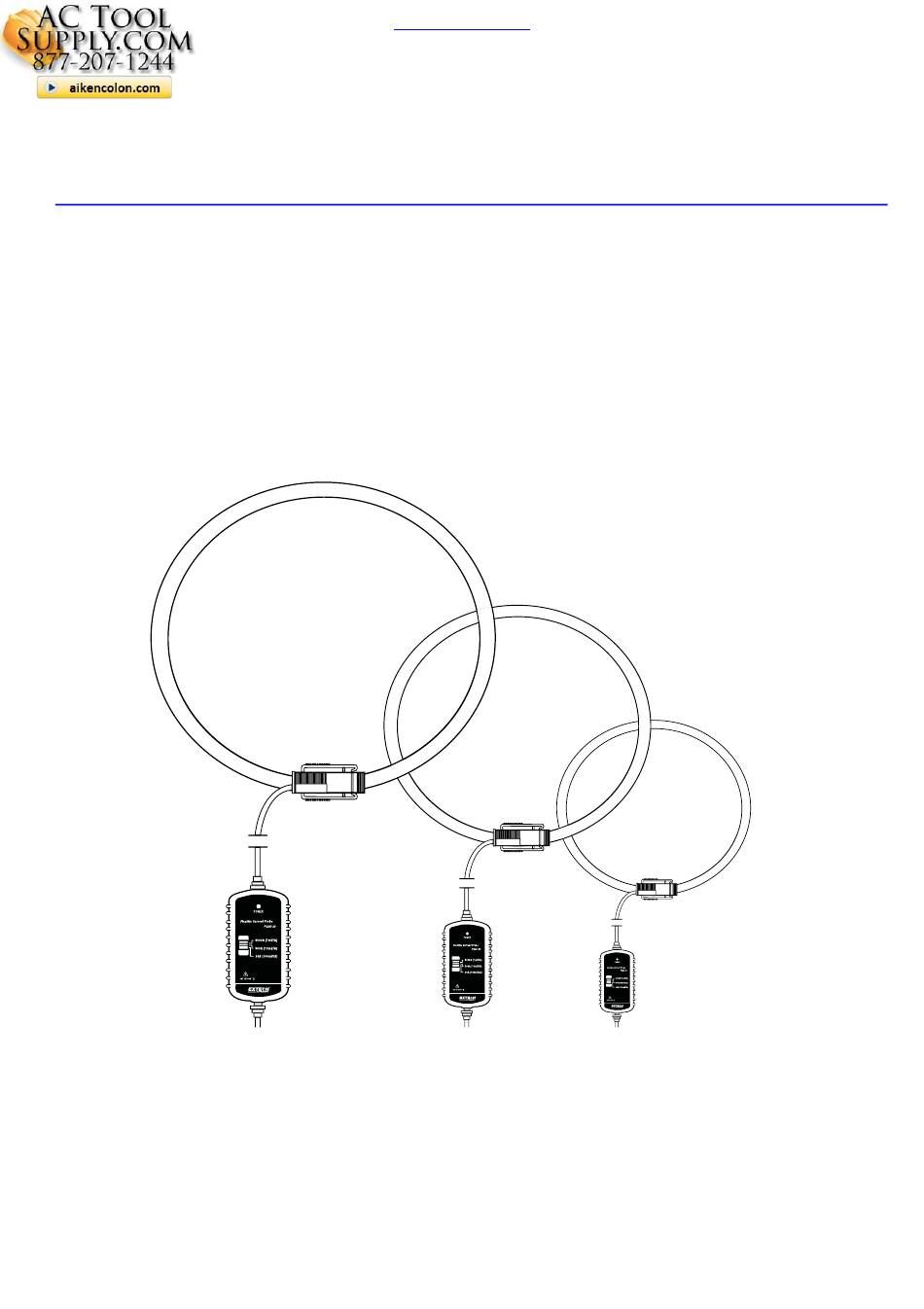

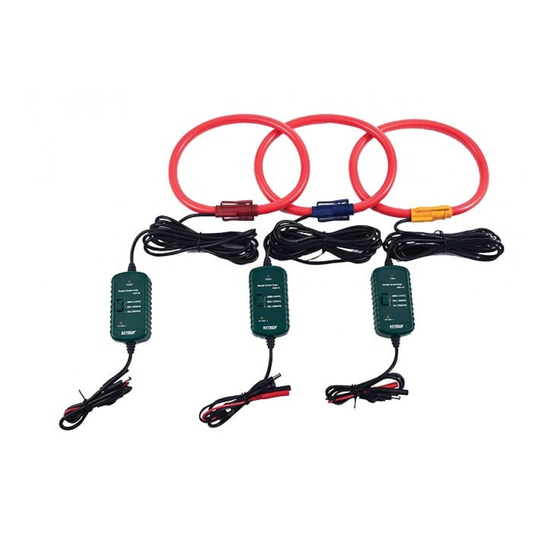

- Page 1 Extech PQ34-30 Flexible 3000 Amp Current Clamp Probes 3000A Current Probe Set Model PQ34-30 actoolsupply.com...
- Page 2 actoolsupply.com Introduction Congratulations on your purchase of this Extech Current Probe Set. A set of three 3000A flexible current probes designed to be used with the Extech PQ3450 or PQ3470 Power Analyzers. These probes are shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
- Page 3 actoolsupply.com Probe Description 1. Flexible current probe 2. Probe latch 3. Power LED 4. 3000A-300A-30A range switch 5. Signal output plug ( +, red ) 6. Signal output plug ( -, black ) 7. DCV power plug Operation Connect the signal output cables from the first clamp to the “A1” input sockets on the top of the analyzer.
-
Page 4: Specifications
actoolsupply.com Specifications Measurement ranges 30A, 300A and 3000A, switch selectable Output sensitivity 100mV/A on the 30A range 10mV/A on the 300A range 1mV/A on the 3000A range Output coupling AC coupled. Accuracy (50/60Hz) ± 1% F.S. @ 23 ± 5°C (50/60Hz) Frequency range 45 to 400 Hz.
