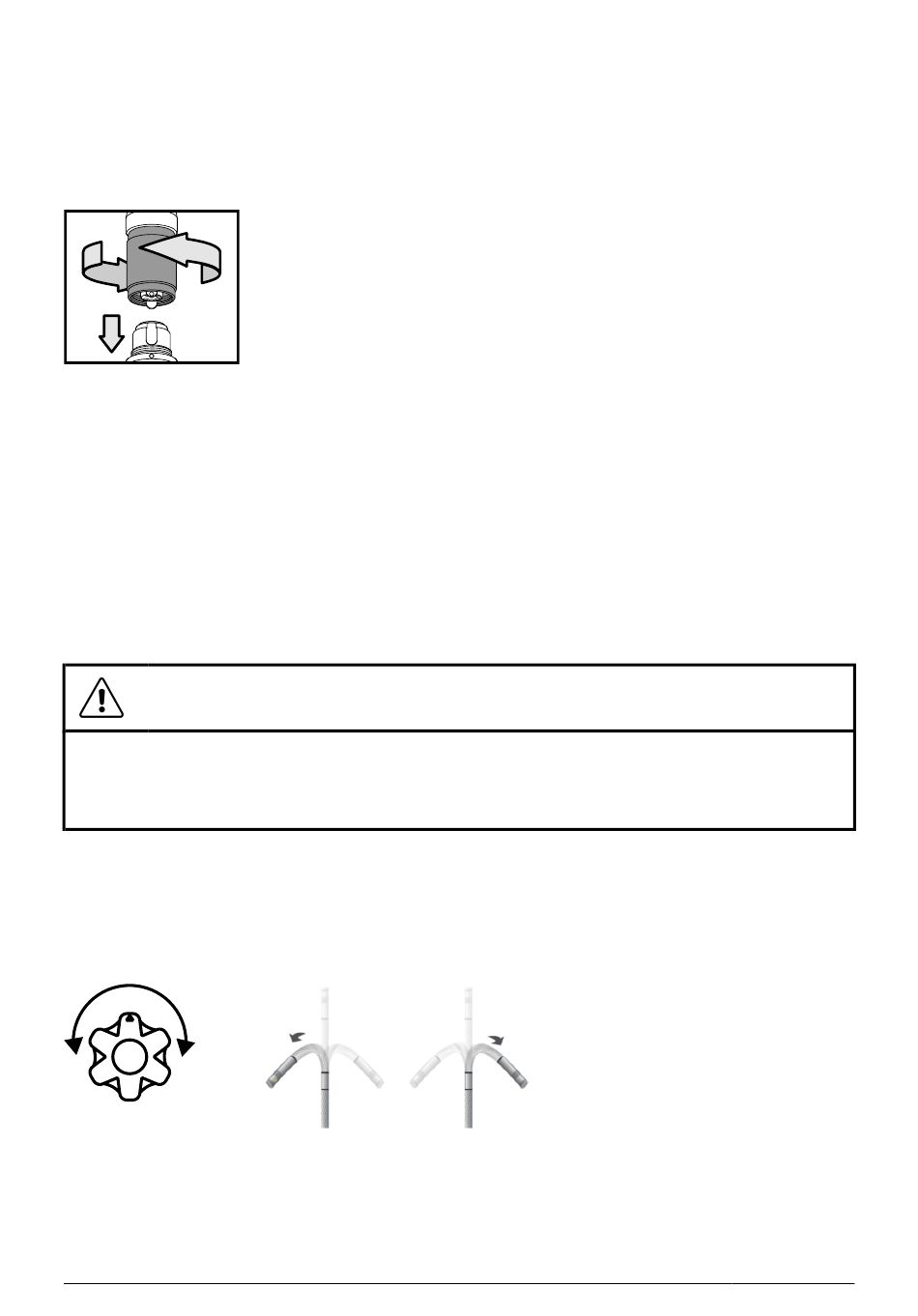

Connecting the Probe

The steps below explain how to safely connect the probe to the
HDV700 monitor. Always turn the HDV700 power off before replac-
ing the probe.
1. Align the white dot on the probe connector with the white dot on
the monitor connector.
2. Plug the probe into the monitor unit, ensuring proper alignment
and full insertion.
3. Tighten the collar nut to secure the connection. Do not
overtighten.

Operation

Controlling Articulation
CAUTION
Do not use excessive force when turning the control dial, damage to the cam-
era probe can result. Do not attempt to force the flexible neck past its maxi-
mum angle. Stop turning the control dial when the maximum angle is reached.
Turn the control dial (4) clockwise to bend the probe neck to the
right; turn the dial counter-clockwise to bend the neck to the left, as
shown in the image below. The articulation range is 180° maximum,
do not attempt to force the control dial past the bend limit.
For safety and ease of use, straighten the neck before inserting and
removing the probe from the inspection area.
