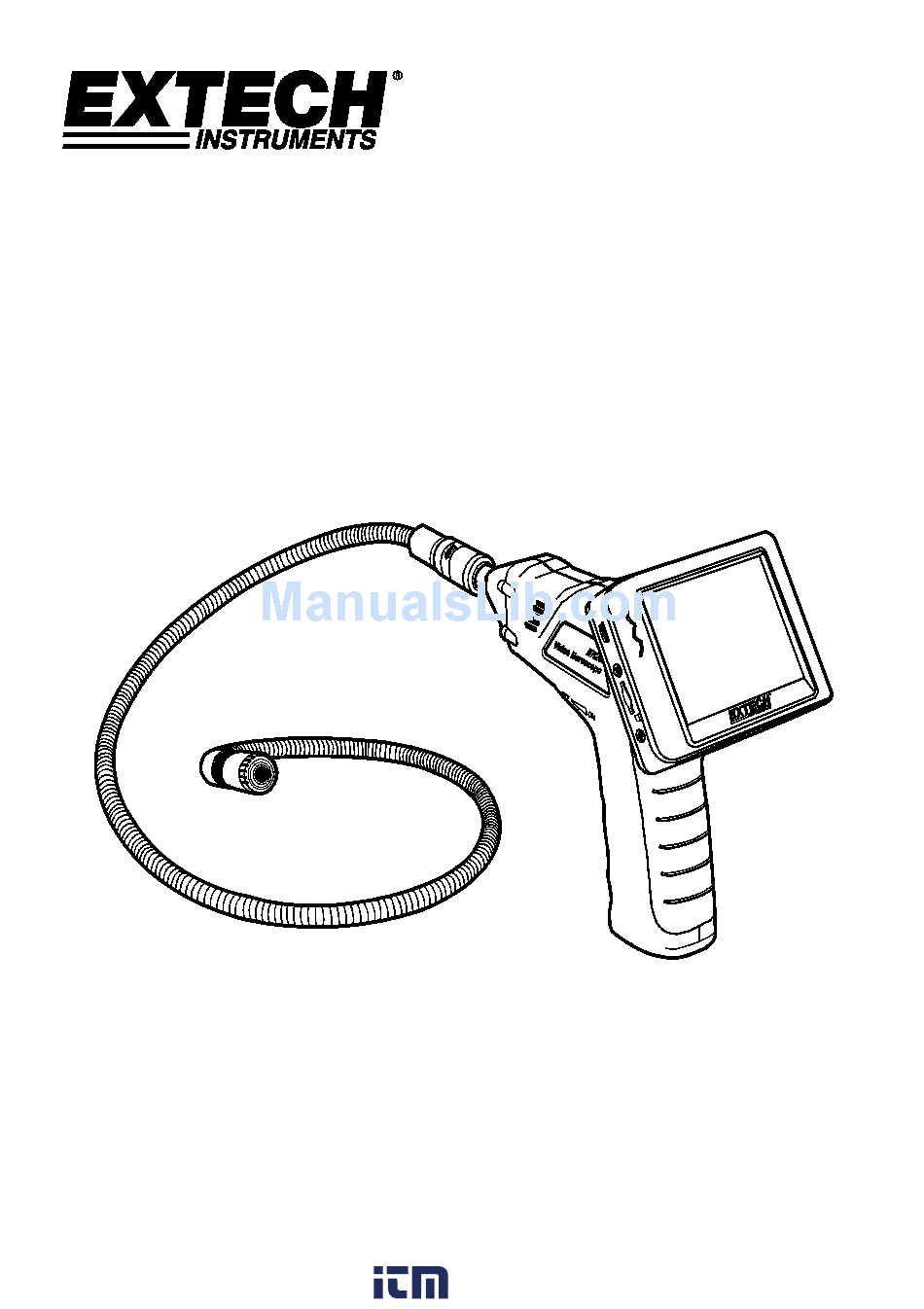

- Page 1 User Manual Video Borescope Models BR200 and BR250 800.561.8187 information@itm.com www. .com...
-
Page 2: Supplied Equipment
Introduction Congratulations on y our purchase of t his Extech BR200 (17mm c amera head) or B R250 (9mm camera head) Video B orescope. This instrument was des igned for us e as a remote i nspection device. It can be used to peer into tight spots and then supply real-time video and i mages t hat can be r ecorded. - Page 3 Up arrow, video or j pg Menu Down arrow 10 Power O n/Off 11 Power Indicator 12 USB Socket 13 Video out put 14 SD card socket 15 Power s upply s ocket 16 Reset 17 Signal i nput BR200-BR250-en-GB_v7.6 7/17 800.561.8187 information@itm.com www. .com...
-
Page 4: Installation
Insert c ard with arrow pointing toward slot. Gently apply pressure unt il c ard locks into the s pring loaded slot. To remove from un it, gently push the card inward and t hen release t o eject it from the card slot. BR200-BR250-en-GB_v7.6 7/17 800.561.8187 information@itm.com www. - Page 5 Installing the accessory tools （BR200） The included ac cessories (mirror, hook and magnet) all attach to the camera in the same manner. Refer to the diagrams below: Installing the accessory tools （BR250） Hook the attachment into the hole in the head and then slide the rubber sleeve over the...
-
Page 6: Operation
7. Use the s upplied ac cessories to help retrieve small items. LCD Reset If the BR200/BR250 LCD Monitor will not power ON, or if it powers OFF during use, follow the steps below to perform a Power R eset: Un-dock t he LCD m odule from the BR200/BR250 pistol-grip bas e uni t. - Page 7 SD card adaptor: Insert the SD card into the SD adaptor and then insert the adaptor into the PC SD slot (if available) USB adaptor: Insert the SD card into a USB adaptor and plug into a USB port. USB cable. Connect the USB cable from the camera to the PC. BR200-BR250-en-GB_v7.6 7/17 800.561.8187 information@itm.com www.
-
Page 8: Settings Mode
Use the arrow keys to highlight the FPS (frames per second) icon Press OK to open the FPS parameter Use the arrows to select the frame rate: 10, 15, 20, 25, or 30 Press OK to confirm BR200-BR250-en-GB_v7.6 7/17 800.561.8187 information@itm.com www. -
Page 9: Battery Replacement
Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a des ignated collection point for the disposal of electrical and electronic equi pment. BR200-BR250-en-GB_v7.6 7/17 800.561.8187 information@itm.com www. -
Page 10: Specifications
Specifications CAMERA Imaging Sensor CMOS Total P ixels (NTSC) BR200: 712 x 486; B R250: 640 x 480 Horizontal View Angle BR200: 50 degrees BR250: 45 degr ees Transmission F requency 2468MHz Focus point BR200: 20cm (8”), BR250: 10cm (4”)
