Summary of Contents for Extech Instruments BR450W-D

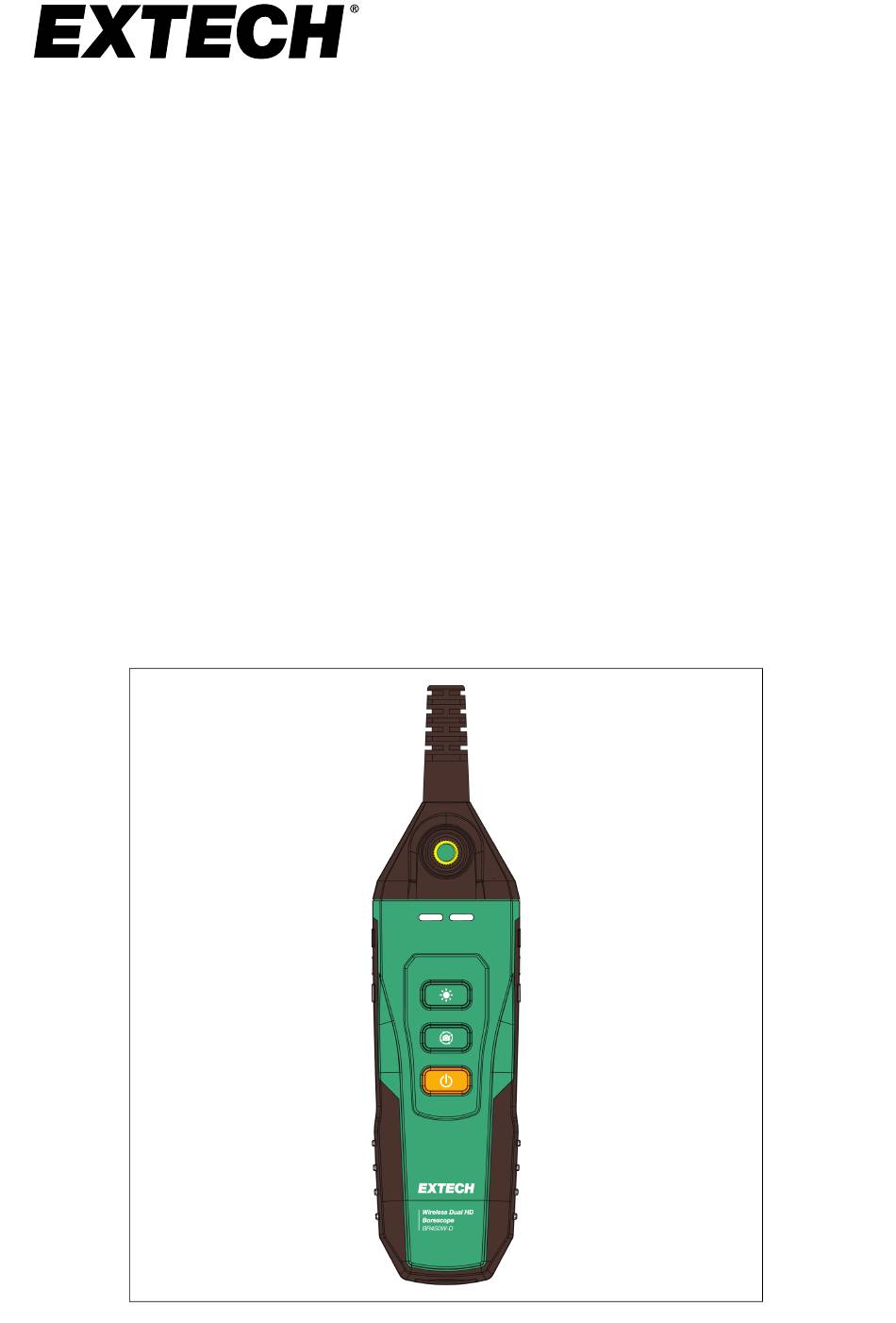

- Page 1 User Manual Wireless Dual HD Borescope MODEL BR450W-D...

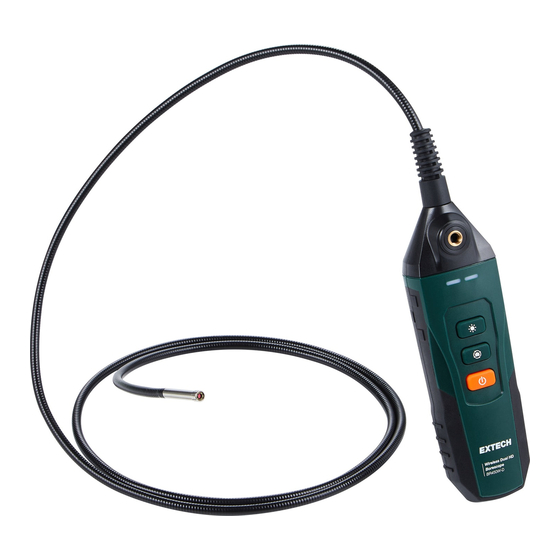

- Page 2 Introduction Thank you for selecting the Extech Dual HD Wireless Borescope. This device offers forward and side view high definition cameras. The camera lenses in- clude adjustable LED lights for viewing in dark and dimly lit areas. The cam- eras are affixed on a flexible cable for easy insertion in pipes, ducts, etc. The cable is designed to retain the desired shape.
- Page 3 RoHS NOTICE This system is in conformance with the requirements of the European law on the Re- striction of Hazardous Substances (RoHS) directive. This means that our product is both lead-free and without the hazardous substances either in the manufacturing proc- ess or in the final product.
- Page 4 Description WARNING To avoid personal injury, do not use this device unless it is fully assembled. Do not use if parts appear to be missing or damaged. Do not modify this device or attach accessories not intended for use with this device. Borescope Front view camera Side view camera...
- Page 5 Control Buttons Camera brightness adjustment button. Short press to step through the five (5) intensity levels and OFF. Camera select button. Short press to toggle front and side view camera images. Power button. Short press to switch ON the device. Long press to switch OFF the device.
-
Page 6: Operation
Operation Quick Steps 1. Download the ExView app to your mobile device from Google Play (An- droid ) or the App Store® (iOS®). 2. Short press the power button to switch the Borescope ON, the LED indica- tors will switch ON. 3. - Page 7 ExView Application The app screen shot, below, provides a basic overview of the app icons and features. Refer to the ExView user manual for complete instructions. A link to the manual is provided in the app Settings menu, or navigate to the FLIR sup- port site, directly from your web browser, to obtain a copy of the manual.
-
Page 8: Rechargeable Battery
Rechargeable Battery Battery Overview The Borescope is shipped with a partially charged 3.7 V lithium ion battery. Fully charge the battery before putting this device into operation, per the in- structions below. Using the Borescope while charging can interfere with its Wi-Fi connection. -
Page 9: Specifications
Battery Replacement The rechargeable lithium ion battery is accessible from the back of the device. 1. Remove the two (2) Phillips screws from the back of the device. 2. Carefully open the device housing to access the battery compartment. 3. Remove the old battery and dispose of responsibly and in accordance with applicable laws and regulations. -
Page 10: Customer Support
The control unit can be wiped with a damp cloth when necessary; never use solvents or abrasives. Customer Support Customer Support Local Telephone List: https://support.flir.com/contact Returns (RMA): https://customer.flir.com/Home Warranty Teledyne FLIR warrants this Extech brand instrument to be free of defects in parts and workmanship for two years from date of shipment. - Page 12 User Manual last page Website http://www.flir.com Customer support http://support.flir.com Copyright © 2024, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations.
