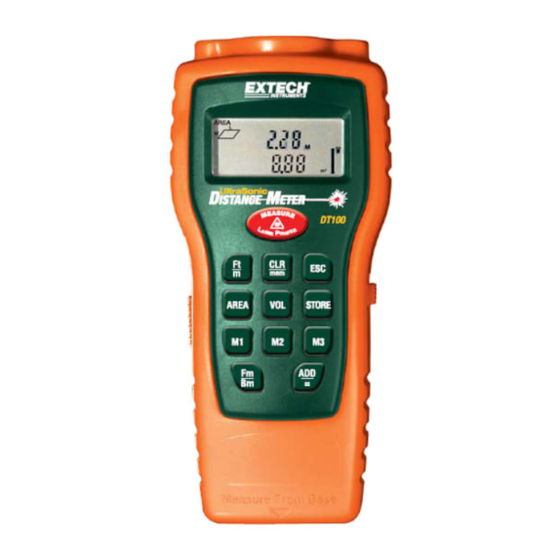

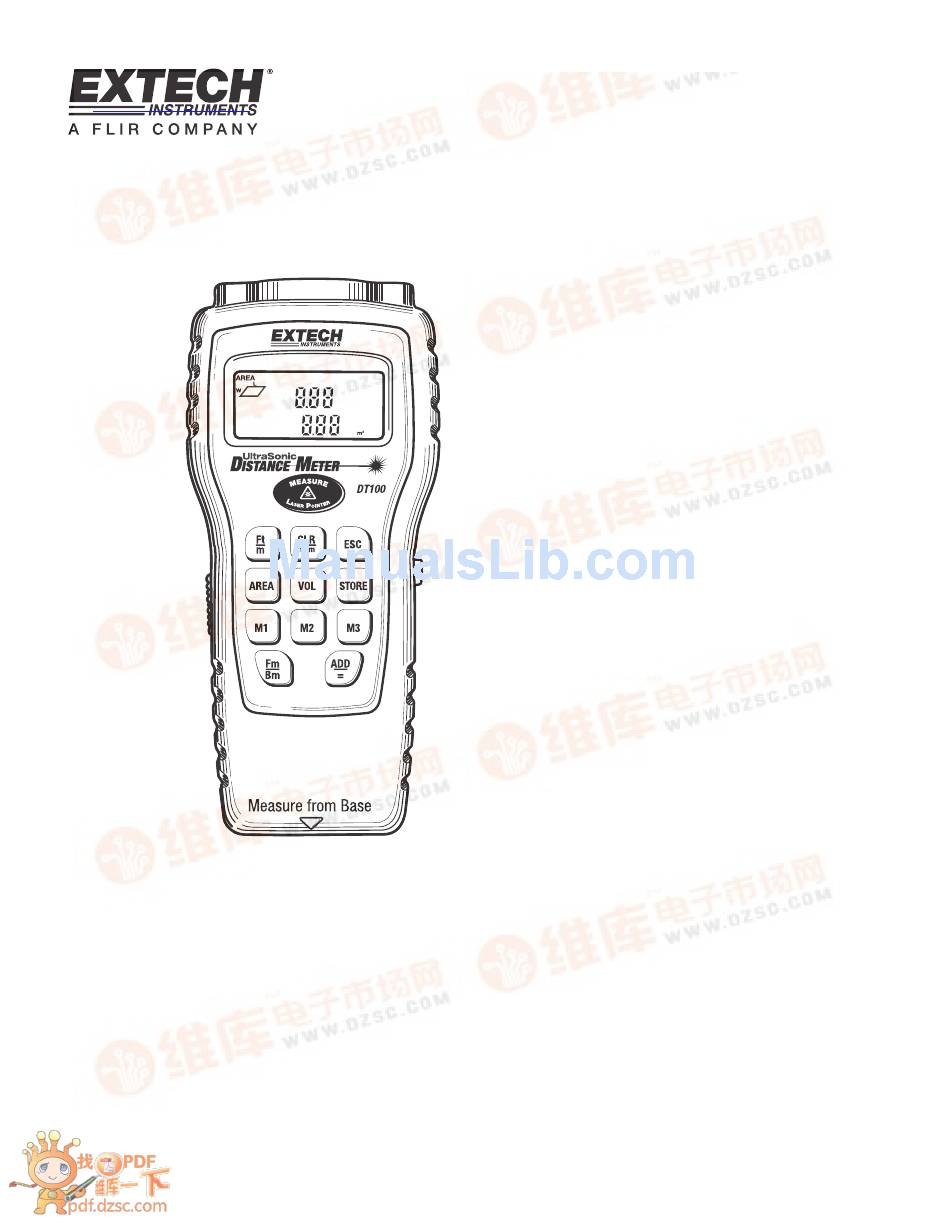

- Page 1 User Guide 查询"DT100"供应商 Ultrasonic Distance Finder Extech DT100...
- Page 2 This meter measures distance up to 50 ft (15m), calculates area and volume and has a 查询"DT100"供应商 built-in flashlight. In addition, the DT100 includes a laser pointer for more accurate targeting when taking measurements. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
- Page 3 Distance “meter” indicator 12. Base measurement 9 10 Keypad Description Feet / Meters Conversion Memory 2 Area Computation Escape Memory 1 Memory Store Memory 3 Front / Base distance reference Memory Clear Distance Addition Volume Computation Model DT100 V4.2 9/08...
- Page 4 The measured distance or calculation exceeds the specified range b) The instrument is held at a wide angle to the target c) The target surface is not reflective ( i.e. soft and irregular surface such as carpet, curtains or irregular wall paper) Model DT100 V4.2 9/08...
- Page 5 Repeat steps 2 and 3 as needed to a display limit of 99’ 11” (99.99m) Area Calculation The DT100 allows the user to compute the area of a room. Press the AREA button. An ‘L’ will flash in the display on the two dimensional box icon to indicate that a Length measurement is to be taken.
- Page 6 Press ESC to continue. Storing Readings in Memory Locations M1, M2, and M3 The DT100 allows the user to store up to three (3) readings in memory for later recall. Take a reading as previously described. With the reading displayed, press the STORE button. The M1, M2, and M3 indicators will appear in the display.
- Page 7 Calculation rounding Calculations are rounded up or down 2 least significant digits Copyright © 2006 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. Model DT100 V4.2 9/08...
- Page 8 查询"DT100"供应商 Model DT100 V4.2 9/08...
