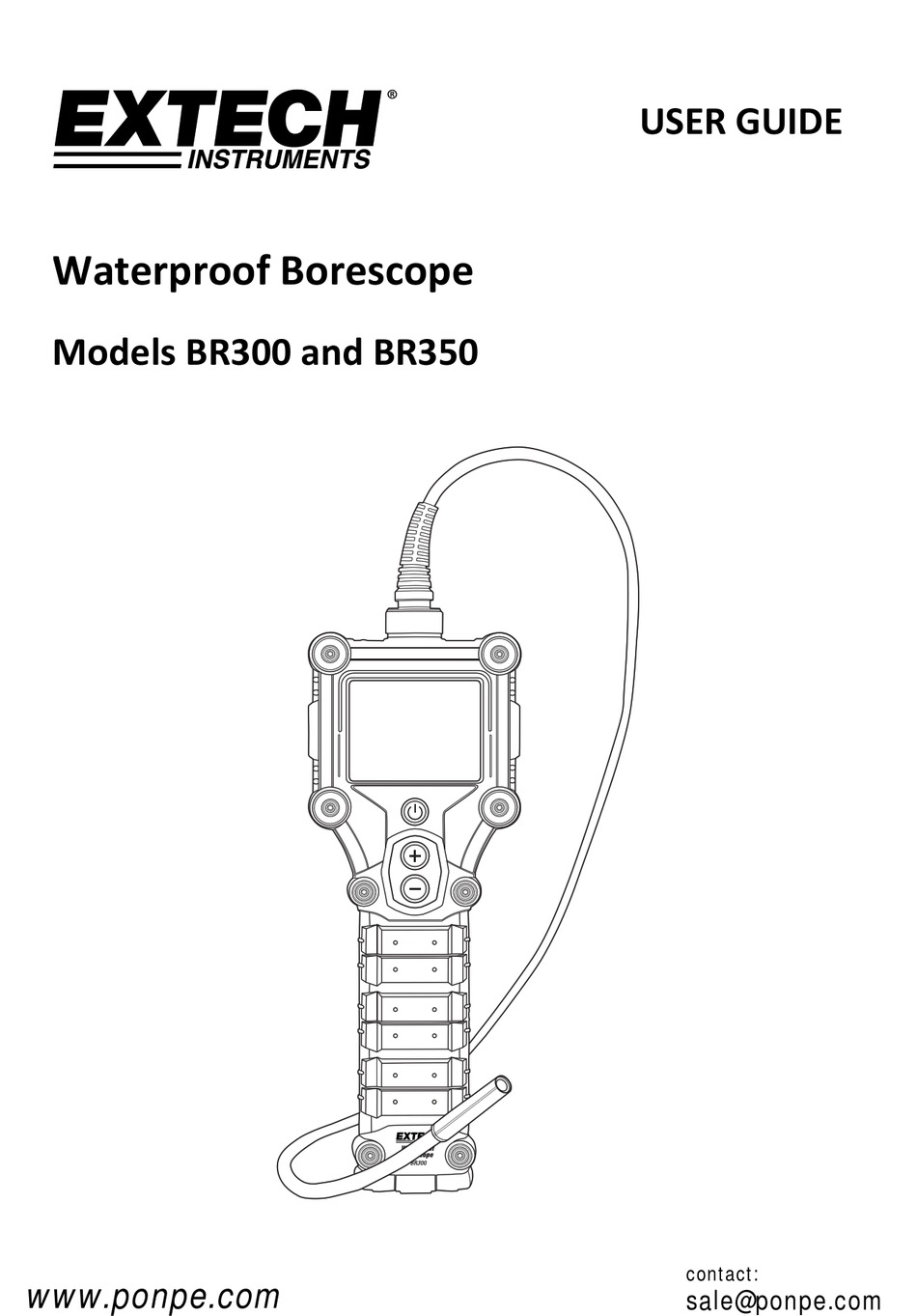

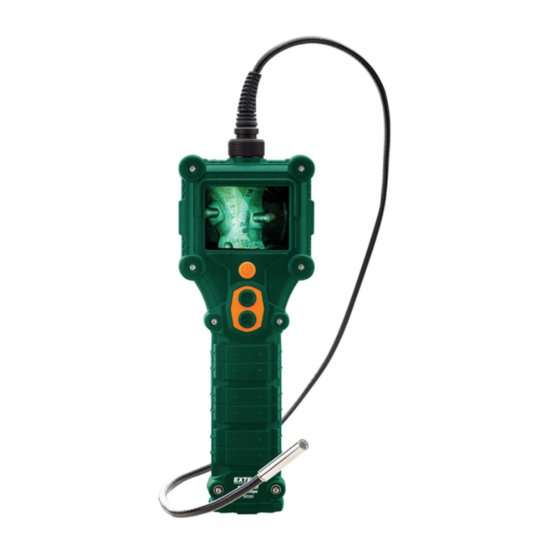

- Page 1 USER GUIDE Waterproof Borescope Models BR300 and BR350 contact: www.ponpe.com sale@ponpe.com...
- Page 2 Waterproof Borescope can be fully immersed in water (to 1m) for up to 30 minutes. The BR300/350 has a 6.8 cm (2.7”) color TFT LCD glare‐free, close‐up field of view, monitor. The camera lens includes LED search‐lights affixed on a flexible gooseneck cable (that retains the ...
-
Page 3: Meter Description
Keypad Description Keypad POWER button: Press and hold for at least 2 seconds to power ON the instrument. Press momentarily to switch the instrument OFF. Increase LED lighting/Zoom button: Press this button momentarily to raise the intensity of the search light LEDs located at the tip of the flexible camera probe. Press and hold this button for at least 2 seconds to ZOOM by a factor of 2 (2x). Decrease LED lighting/180 degree rotation button: Press this button momentarily to lower the intensity of the search light LEDs located at the tip of the flexible camera probe. Press and hold this button for at least 2 seconds to rotate the display by 180 (mirror image). 3 BR300‐BR350‐EU‐EN v1.2 12/13 contact: www.ponpe.com sale@ponpe.com... -
Page 4: Battery Replacement
Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end‐of‐life devices to a designated collection point for the disposal of electrical and electronic equipment. 4 BR300‐BR350‐EU‐EN v1.2 12/13 contact: www.ponpe.com sale@ponpe.com... -
Page 5: Specifications
1m (39.4”) depth for 30 minutes Operating Temperature 0 to 40 C (32 to 104 F) Operating Humidity 10 to 80% RH Dimensions 25 x 9.3 x 4.2cm (9.8 x 3.7 x 1.6”) instrument without flexible cable 1m (39.4”) flexible gooseneck flexible cable Weight 380g (13.4 oz.) without batteries installed BR350 BR300 Camera shaft diameter 5.5 mm (0.23”) 8 mm (0.31”) Camera viewing angle 1/18” VGA CMOS 1/9” VGA CMOS Image sensor 320 x 240 640 x 480 Pixel array Resolution 0.1M pixels 0.3M pixels Image transfer rate 60 FPS (max.) 30 FPS for VGA ...
