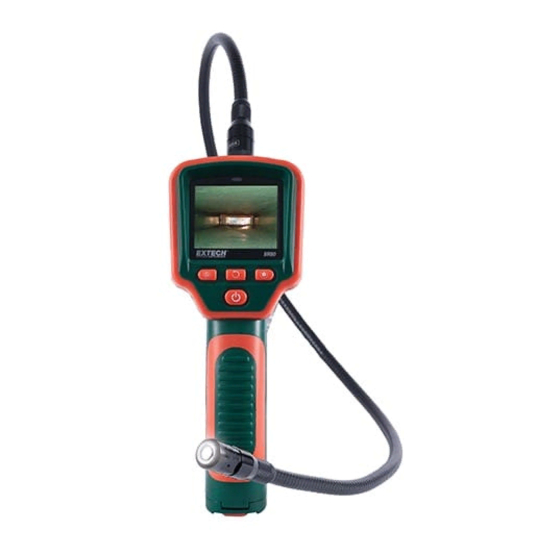

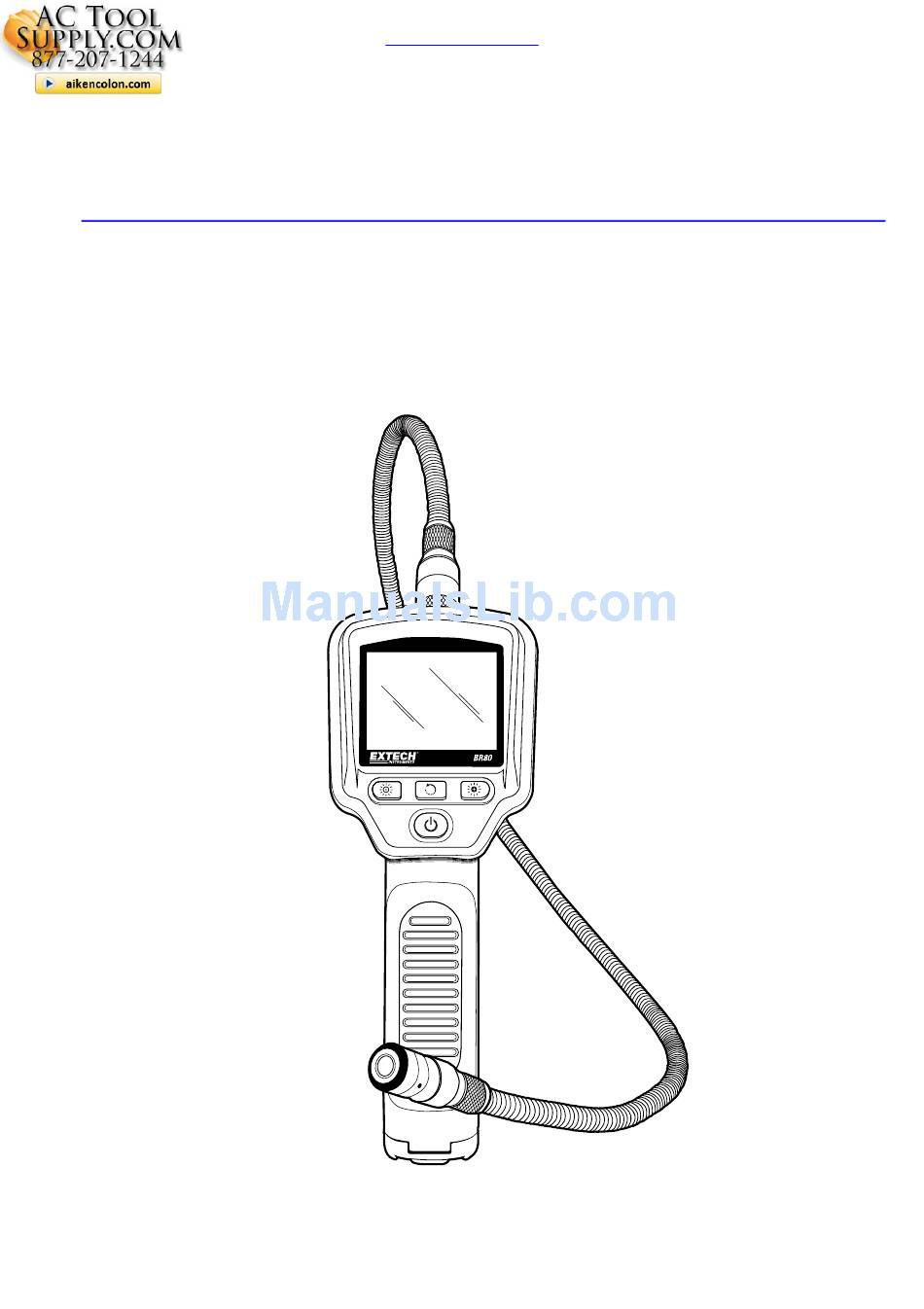

- Page 1 User's Guide Extech BR80 Video Borescope Inspection Camera 17mm Video Borescope Inspection Camera Model BR80 actoolsupply.com...
- Page 2 Introduction Congratulations on your purchase of the Extech BR80 Video Borescope. This instrument was designed for use as a remote inspection device. Typical applications include HVAC inspection, automotive inspection, cable routing, and boat/aircraft inspection. This meter is shipped fully tested and, with proper use, will provide years of reliable service.
-
Page 3: Safety And Care
(Nickel Cadmium) batteries. All EU users are legally bound by the battery ordinance to return all used batteries to collection points in your community or wherever batteries / accumulators are sold! Disposal in the household garbage is prohibited! BR80-EU-EN-V1.0 10/11 actoolsupply.com... -
Page 4: Operation
Permanent damage to the flex tube and loss of operation will occur if the flex tube is subjected to narrow radius or sharp angle bends. Accessory tools The included accessories (mirror, hook and magnet) all attach to the camera head. Snap the tool clip into the recessed area on the camera assembly. BR80-EU-EN-V1.0 10/11 actoolsupply.com... -
Page 5: Specifications
4 x ‘AA’ 1.5V batteries Consumption Current (Max.) 150mA Dimensions 211 x 83 x 76mm (8.3 x 3.3 x 3”) meter body only Weight 0.61 kg (1.35 lbs) (meter & tube) Operating Temperature -10°C~+50°C (+14°F~+122°F) Operating Humidity (Display) 15~85%RH BR80-EU-EN-V1.0 10/11 actoolsupply.com...
