Extech Instruments BR200 User Manual page 3
Video borescope
Hide thumbs
Also See for BR200:
- User manual (15 pages) ,
- User manual (11 pages) ,
- User manual (11 pages)
Table of Contents
Advertisement

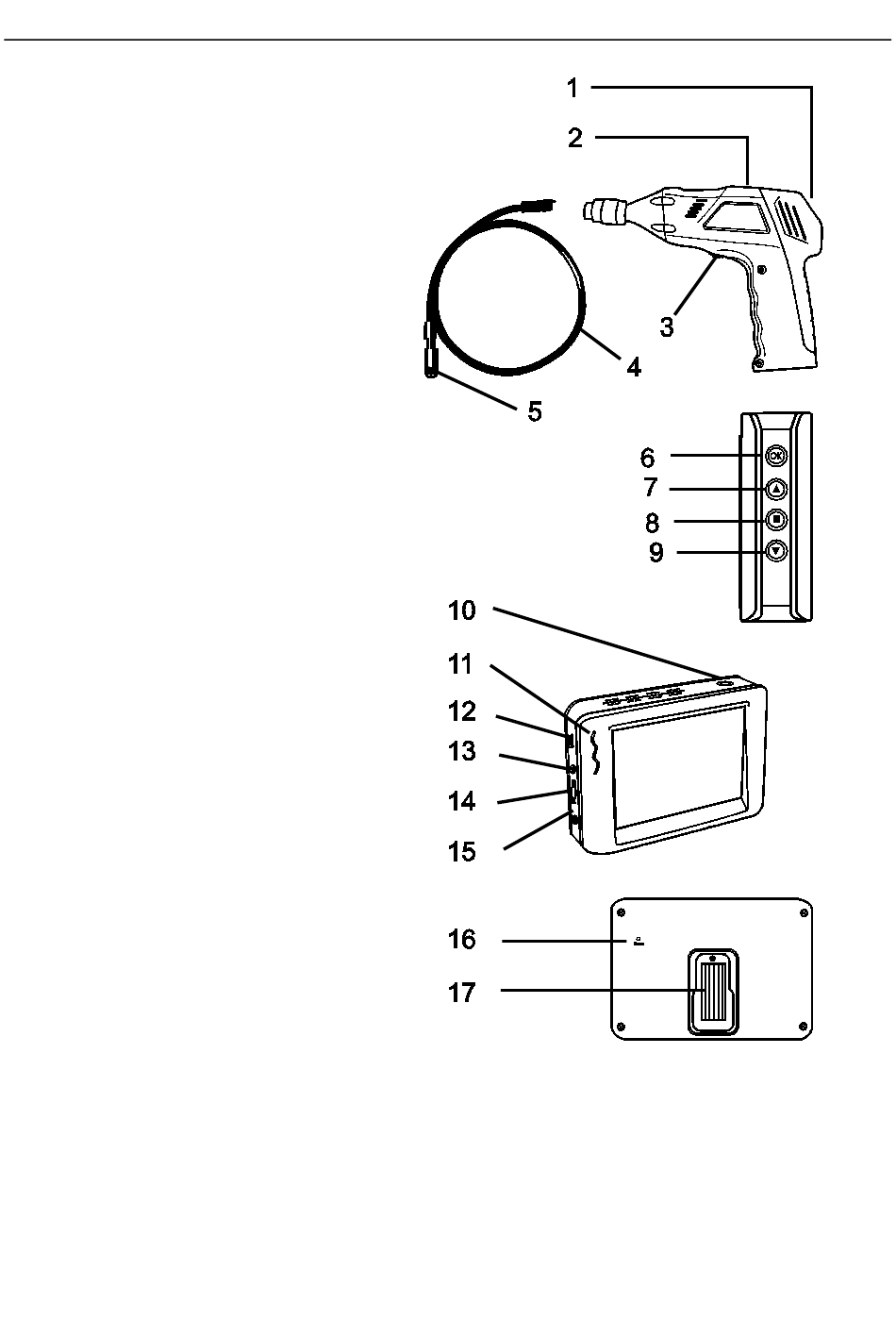

Description
1
Signal output
2
Power Indicator
3
Power On/Off, Dimmer
4
Flexible tube
5
Camera head and LED's
6
OK
7
Up arrow, video or jpg
8
Menu
9
Down arrow
10 Power On/Off
11 Power Indicator
12 USB Socket
13 Video output
14 SD card socket
15 Power supply socket
16 Reset
17 Signal input
