- Page 1 User Manual Wireless Articulating Borescope MODEL BR450W-A2...

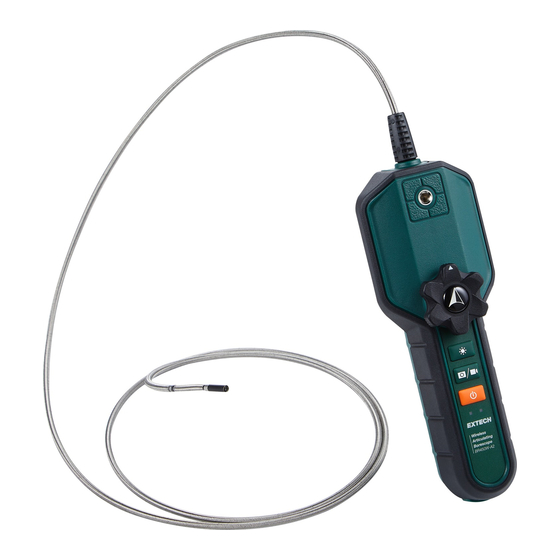

- Page 2 Introduction Thank you for selecting the Extech Wireless Articulating Borescope. This de- vice offers a forward viewing camera mounted on a flexible cable for easy in- sertion in pipes, ducts, etc. The camera lens includes adjustable LED lights for viewing in dark and dimly lit areas. The flexible cable has an articulating neck that you control from the dial on the main unit in a radius of 180°.
- Page 3 CE NOTICE This system is in conformance with the 2014/53/EU Electromagnetic Compatibility Di- rective standard. RoHS NOTICE This system is in conformance with the requirements of the European law on the Re- striction of Hazardous Substances (RoHS) directive. This means that our product is both lead-free and without the hazardous substances either in the manufacturing proc- ess or in the final product.
-
Page 4: Product Description

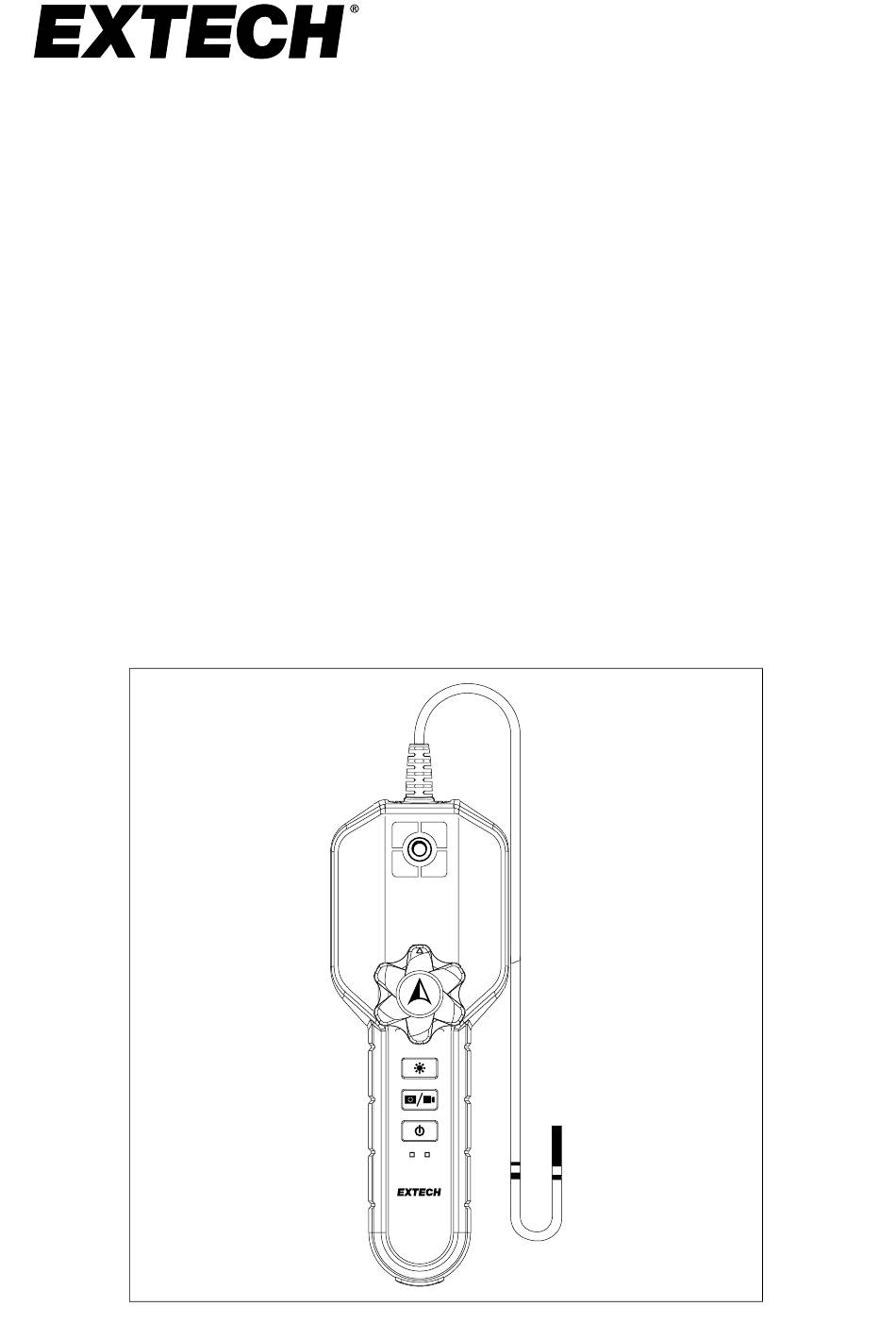

Product Description Overview Camera lens Articulating neck Flexible cable Mount for mobile device (supplied accessory) Articulation control dial Camera light brightness button Image and Video capture button Power button (short press ON, long press OFF) Battery (left) and Wi-Fi (right) status indicators 10. - Page 5 Articulation Dial The articulation dial allows you to remotely bend the probe’s articulation neck in a 180° radius. Turn the dial to the left or right to move the camera head ac- cordingly. The arrows printed on the dial indicate the direction the camera is facing.
-
Page 6: Operation
Operation Quick Steps 1. Download the ExView app to your mobile device from Google Play (An- droid ) or the App Store® (iOS®). 2. Long press the power button to switch the Borescope ON, the LED indica- tors will switch ON. 3. - Page 7 ExView Application The app screen shot, below, provides a basic overview of the app icons and features. Refer to the ExView user manual for complete instructions. A link to the manual is provided in the app Settings menu, or navigate to the FLIR sup- port site, directly from your web browser, to obtain a copy of the manual.
-
Page 8: Rechargeable Battery
Rechargeable Battery Battery Overview The Borescope is shipped with a partially charged 3.7 V lithium ion battery. Fully charge the battery before use. WARNING • Remove the battery from the device before storing for extended periods. • If the battery needs replacing, use only a battery of the same type. •... -
Page 9: Specifications
Specifications Borescope Dimensions (control unit) 7.4 x 2.7 x 2.4 in. (187 x 67.8 x 60.5 mm) Weight 12.9 oz. (365 g) Image resolution/format 1280 x 720 pixels (JPG) Video resolution/format 1280 x 720 pixels (AVI) Battery 3.7 V (4900 mAh) lithium ion Battery life: 6 hours, maximum Charge time: 2 hours Power source... -
Page 10: Customer Support
Cleaning Use clean water or mild liquid detergent and a swab (supplied) to clean the camera head after use. A lens cloth is also supplied. Do not use corrosive liquids, such as alcohol to clean the lens. The control unit can be wiped with a damp cloth when necessary; never use solvents or abrasives. - Page 12 User Manual last page Website http://www.flir.com Customer support http://support.flir.com Copyright © 2024, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations.
