Summary of Contents for Extech Instruments HDV600

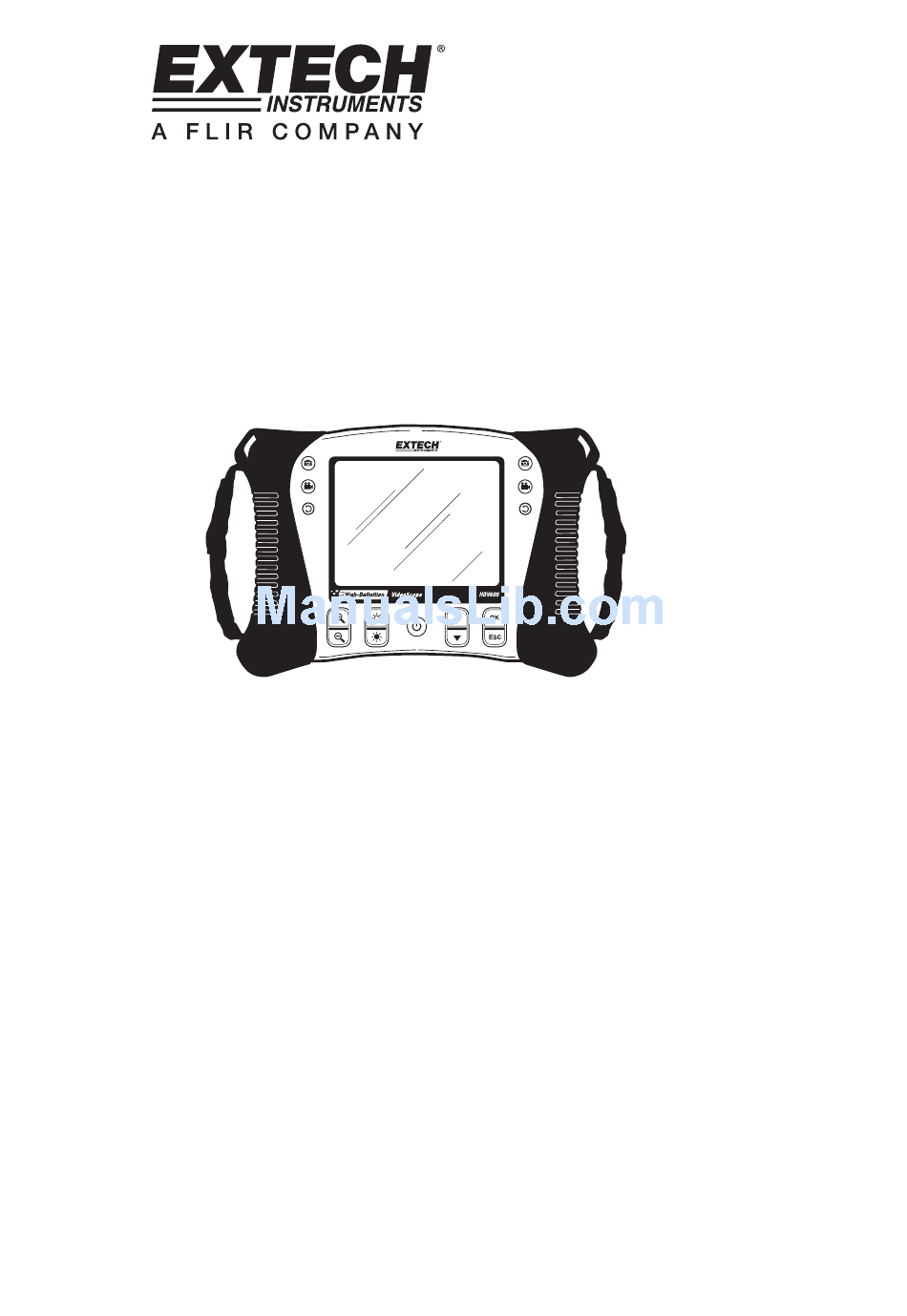

- Page 1 User Guide High Definition VideoScope Model HDV600...
- Page 2 Introduction Congratulations on your purchase of this Extech HDV600 series Video Borescope. This instrument is designed for use as a remote inspection device. It can be used to peer into tight spots, record and playback real-time video and images. Typical applications include HVAC inspection, automotive inspection, cable routing, and automotive/boat/aircraft inspection.
- Page 3 15. Reset button 16. AC adaptor connector Articulating Probe 1. Articulation knob 2. Articulation tension knob 3. Articulating camera 4. Light intensity buttons 5. Power button 6. AC Adaptor and extension cable sockets 7. Carrying strap Wireless Transmitter Probe Connector HDV600-EU-EN-V1.2 4/11...
- Page 4 Light Intensity buttons Power button AC Adaptor and extension cable sockets Carrying strap Probe accessories Anti-snag tip Magnet 45° Mirror Probe Camera Shaft Monitor connector HDV600-EU-EN-V1.2 4/11...
- Page 5 Set the menu display to any one of 21 languages. LANGUAGE: Set the video output to NTSC or PAL format. VIDEO FORMAT: Set the APO to 5, 10, 15, 30 minutes or DISABLE. AUTO POWER OFF: Set Direct or Wireless. INPUT SOURCE: HDV600-EU-EN-V1.2 4/11...
-
Page 6: Operation
Display Rotation Press the button to rotate the display 90 degrees. Installing probe accessories Three accessories (mirror, anti-snag tip and magnet) are supplied with each probe. HDV600-EU-EN-V1.2 4/11... - Page 7 Attach the accessory by unscrewing the probe ring and screwing on the attachment. HDV600-EU-EN-V1.2 4/11...
- Page 8 Direct version Connect the probe to the monitor using the supplied patch cable. Press and hold the Power buttons for 4 seconds to turn the probe and the monitor Insert the probe into the area to be inspected. HDV600-EU-EN-V1.2 4/11...
- Page 9 Turn the probe outer knob to adjust the camera tip to the viewing angle needed. Turn the upper knob to increase or decrease the outer knob tension In this mode, light intensity is controlled by the buttons on the monitor, not by the buttons on the transmitter. HDV600-EU-EN-V1.2 4/11...
- Page 10 “DIRECT” under the INPUT SOURCE selection in the MENU screen. In the direct mode, light intensity is controled by the buttons on the monitor, not by the buttons on the transmitter. HDV600-EU-EN-V1.2 4/11...
- Page 11 Videos will appear with the film icon on the display. To play a video, select a video file and press the button. The play icon will appear during playback. Press the button again to pause playback. The pause icon will appear. HDV600-EU-EN-V1.2 4/11...
- Page 12 The unit will output a high quality video image. Reset button If the monitor becomes unresponsive due to an EMI field or other magnetic event, use a paper clip or other pointed object to press the RESET button located on the bottom panel Rear stand HDV600-EU-EN-V1.2 4/11...
- Page 13 -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. HDV600-EU-EN-V1.2 4/11...
-
Page 14: Specifications
Dimensions (W x D x H) 24.1 x 17.8 x 7.0cm (9.5’x7”x2.75”) Weight 1474g (3.25lb) Transmitter Frequency 2.4GHz Data Video / Audio Video System NTSC / PAL Battery 3.7V rechargeable Li-Polymer Power adaptor 100 to 240V input / 9VDC output HDV600-EU-EN-V1.2 4/11... - Page 15 Unobstructed Effective Range Operating/Storage Temperature -10 to 60°C(14 to 140°F) / -40 to 80°C(-40 to 176°F) Dimensions (W D H) 7.5’ x 2.75 x 2.5” (19 x 7 x 6.35cm) Weight (approx) 0.95lb (431g) HDV600-EU-EN-V1.2 4/11...
- Page 16 640x480 HDV-5CAM-3R Long depth of field Rigid 5.5mm 6 cm to ∞ 640x480 HDV-5CAM-3RM Macro lens Rigid 5.5mm 6 cm to ∞ 640x480 HDV-25CAM-10G Fiberglass 25mm 6 cm to ∞ 640x480 HDV-25CAM-30G Fiberglass 25mm 6 cm to ∞ HDV600-EU-EN-V1.2 4/11...
- Page 17 Copyright © 2010 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com HDV600-EU-EN-V1.2 4/11...
