Filament Loading; Filament Unloading - Flashforge Creator Pro Start Up And Instruction Manual

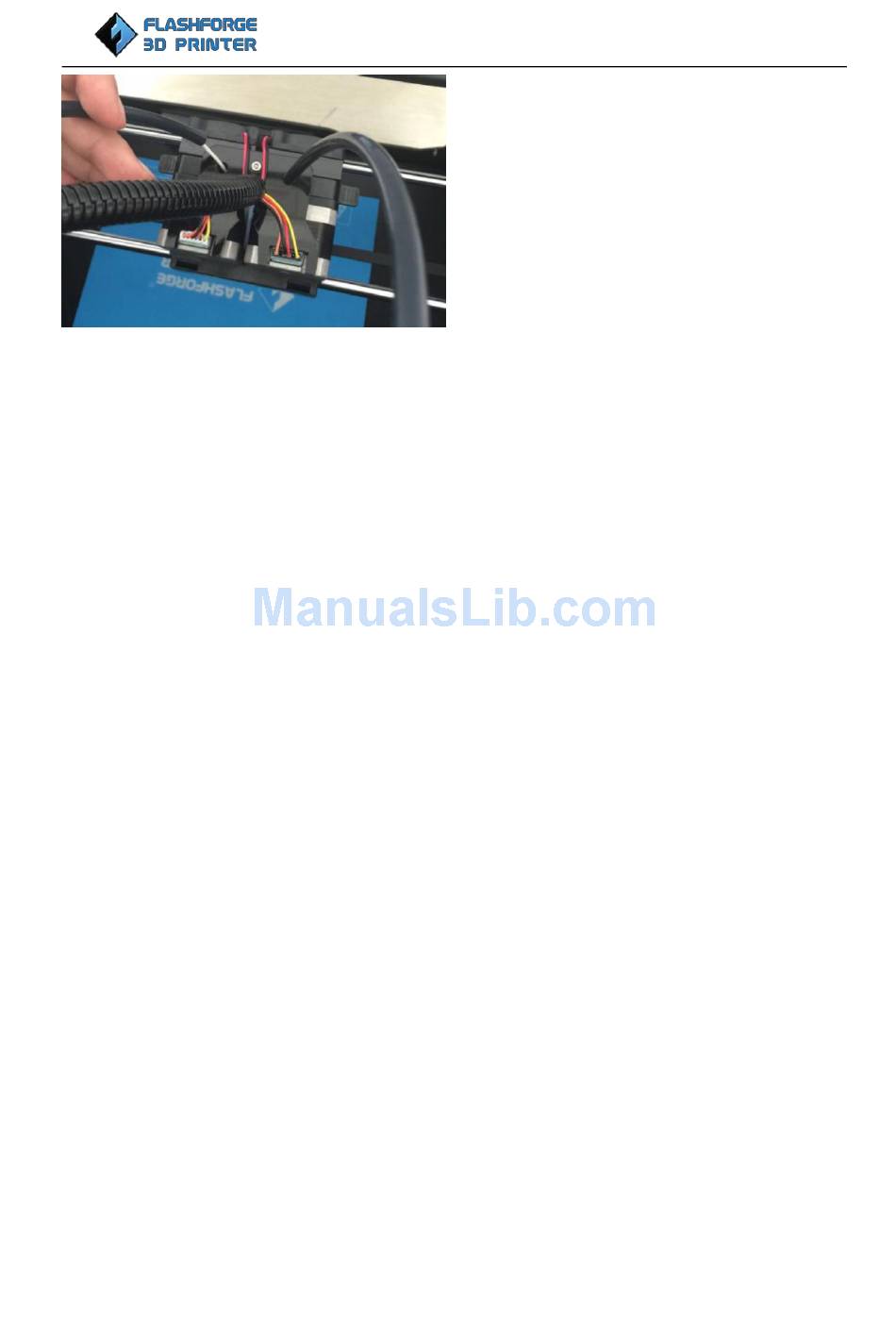

When you have removed the guide tube you can remove the filament that is inside the guide tube. To avoid
any blockages during printing, please ensure that the two threads are loaded from the middle, which has
stated in previous section 'Initial Hardware Installation'

Filament Loading

1. Start the machine, the display indicates:
▶Print from SD
Preheat
Utilities
2. Select Utilities; click the ok key in the middle of the keypad. The display will show:
Monitor Mode
▶Filament Loading
Preheat Settings
Level Build Plate
3. Select Filament Loading; click the ok key in the middle of the button board. The display will show:
▶Unload right
Load right
Unload left
Load left
4. Select Load right. Click the ok key on the button board. The display will indicate: Heating: At this time,
the temperature of the right nozzle is being heated up. When the temperature of the nozzle reaches target,
display will ask you to feed the filament in, just finish the next step following the script instruction.

Filament Unloading

1) Turn on the power switch, you will see the LCD panel shows:
Print from SD
▶Preheat
Utilities
2) Select Preheat，Click ok key in the middle，then you will see：
