Wavetek ANT-20 Operating Manual page 61

ANT-20SE
Fig. O-32
The single line descriptions of all available error causes are listed in the "Possible Causes" field
in the "Manage Causes - [Application name]" window.
3. Click on the item in the "Possible Causes" field that you want to customize.
4. To remove the item, click on the "Cut" button.
– or –
To edit the item, click on the "Edit" button.
– or –
To add a new item, click on the "Add" button.
If you click on "Edit" or "Add", the "Edit Causes - [Application name]" window opens.
Fig. O-33
5. In the "Diagnosis" field, select the diagnosis to which the possible error cause is to be linked.
6. Enter a suitable single line of text that describes the error cause in the "Cause" text box.
7. Click on the "Browse" button.
The "Select File" window opens.
Operating

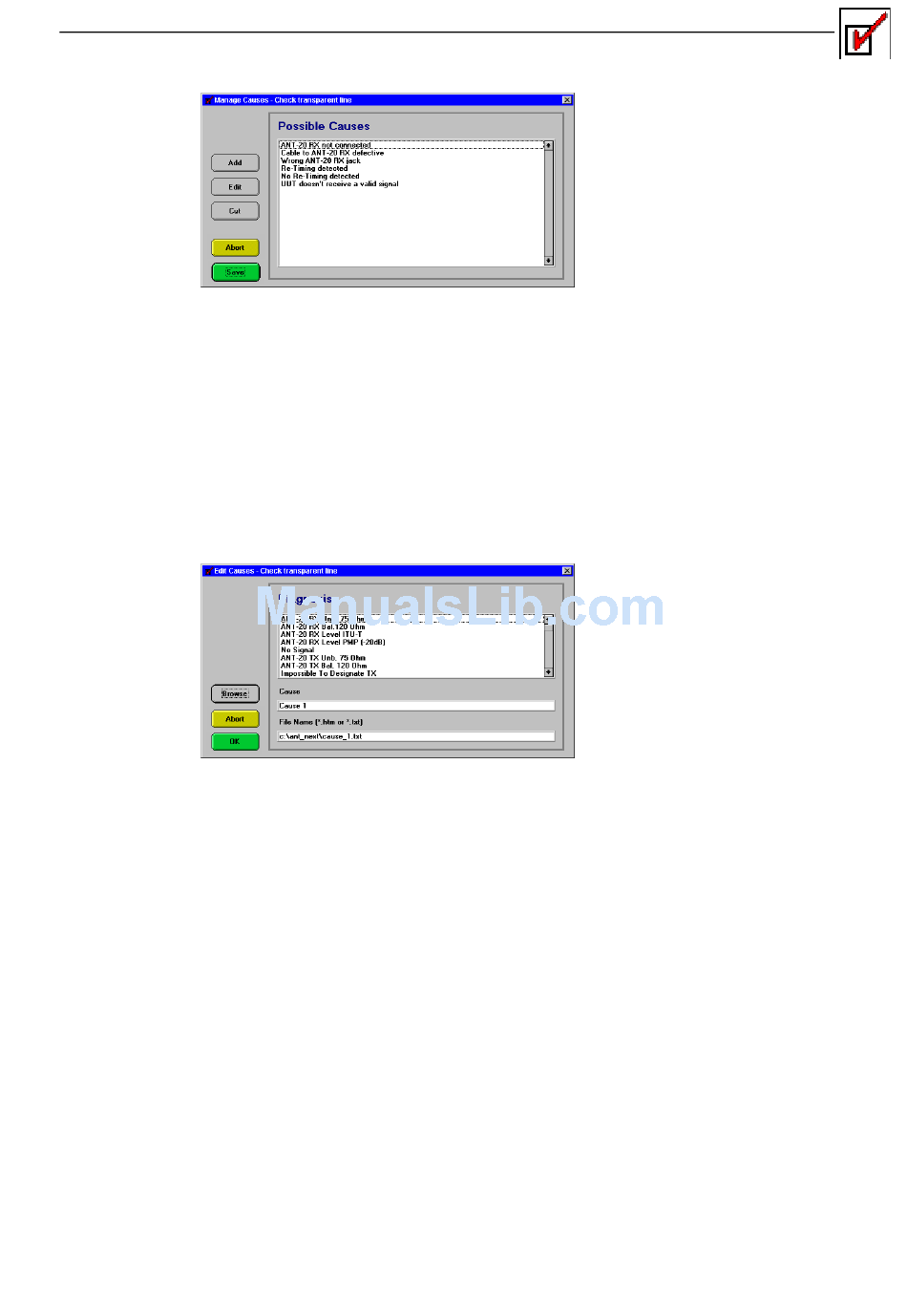

"Manage Causes - [Application name]" window
"Edit Causes - [Application name]" window
ANT-20 NEXT
O-25
