ANT-20 NEXT
2.5.1.1

Report structure

Fig. O-22
Every report is made up from the following sections:
• Header
• Line Parameters
• Assessment
• Measurements
• Test Status
• Settings (details page)
• Detailed Results (details page)
• Possible Causes (details page)
• Links
Header
The report header contains the name of the application used and the text that you entered in the
"Define User Parameters" window (see Section 2.3, Page O-13).
Line Parameters
"Line Parameters" lists the main characteristics of the path. e.g.:
• structure-transparent / not structure-transparent
• clock-transparent / not clock-transparent
• etc.
Assessment
The "Assessment" section contains the diagnoses that are displayed if they are "true"
(applicable). For example, the diagnosis "AIS-2M" might appear here. However, if no AIS is
detected, then the diagnosis "AIS-2M" will not be shown.
O-16

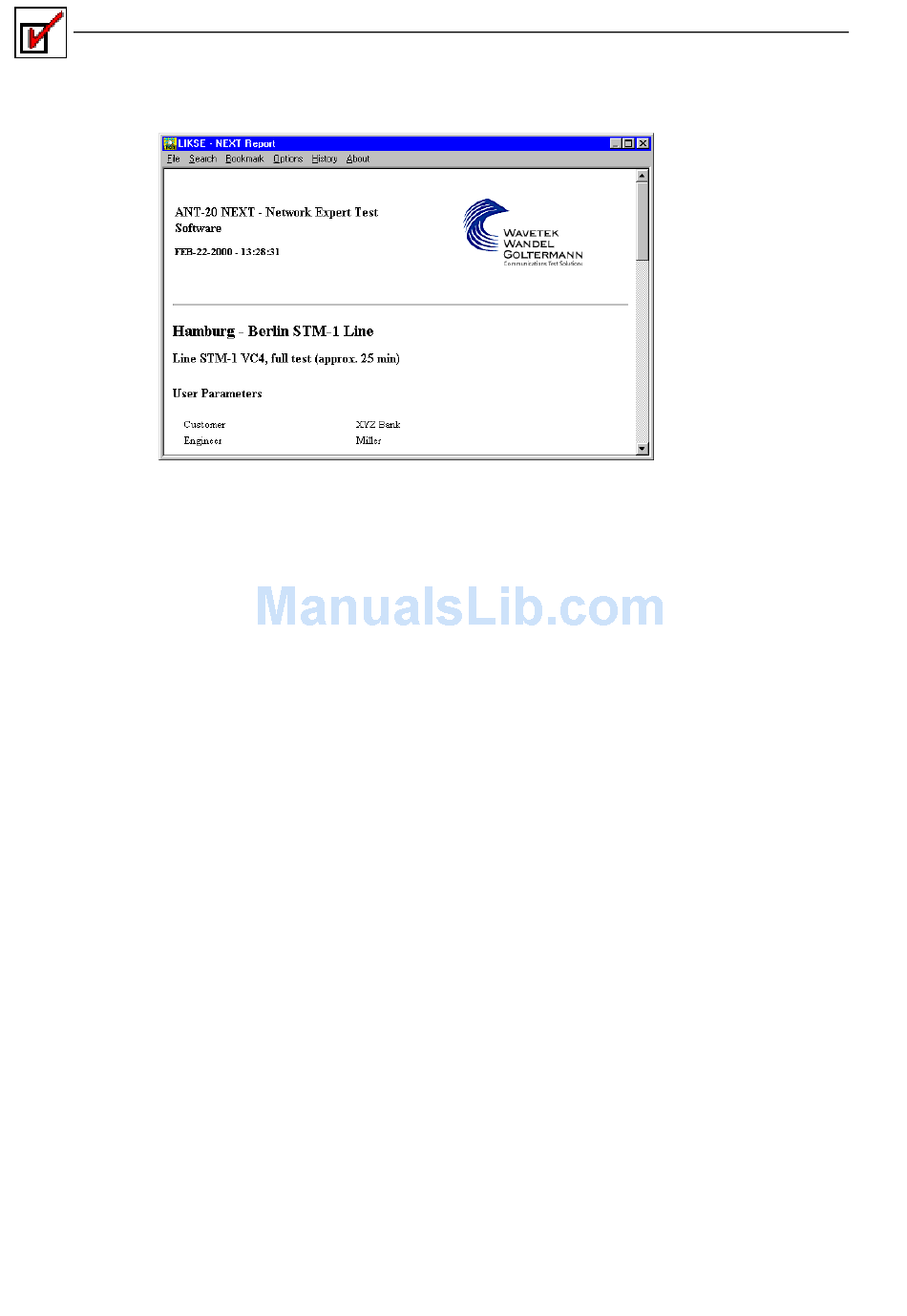

Report display in HTML viewer (report header)
