ANT-20SE
2.5.2

Saving the report

A report is generated every time a diagnosis is started. The last report that was created will be
overwritten by the new report.
To save a report so that you can evaluate it later, proceed as follows:
1. Click on the "Save" menu item in the "Report" menu in the "ANT-20 NEXT - [Application]"
window.
– or –
Click on the "Save" button.

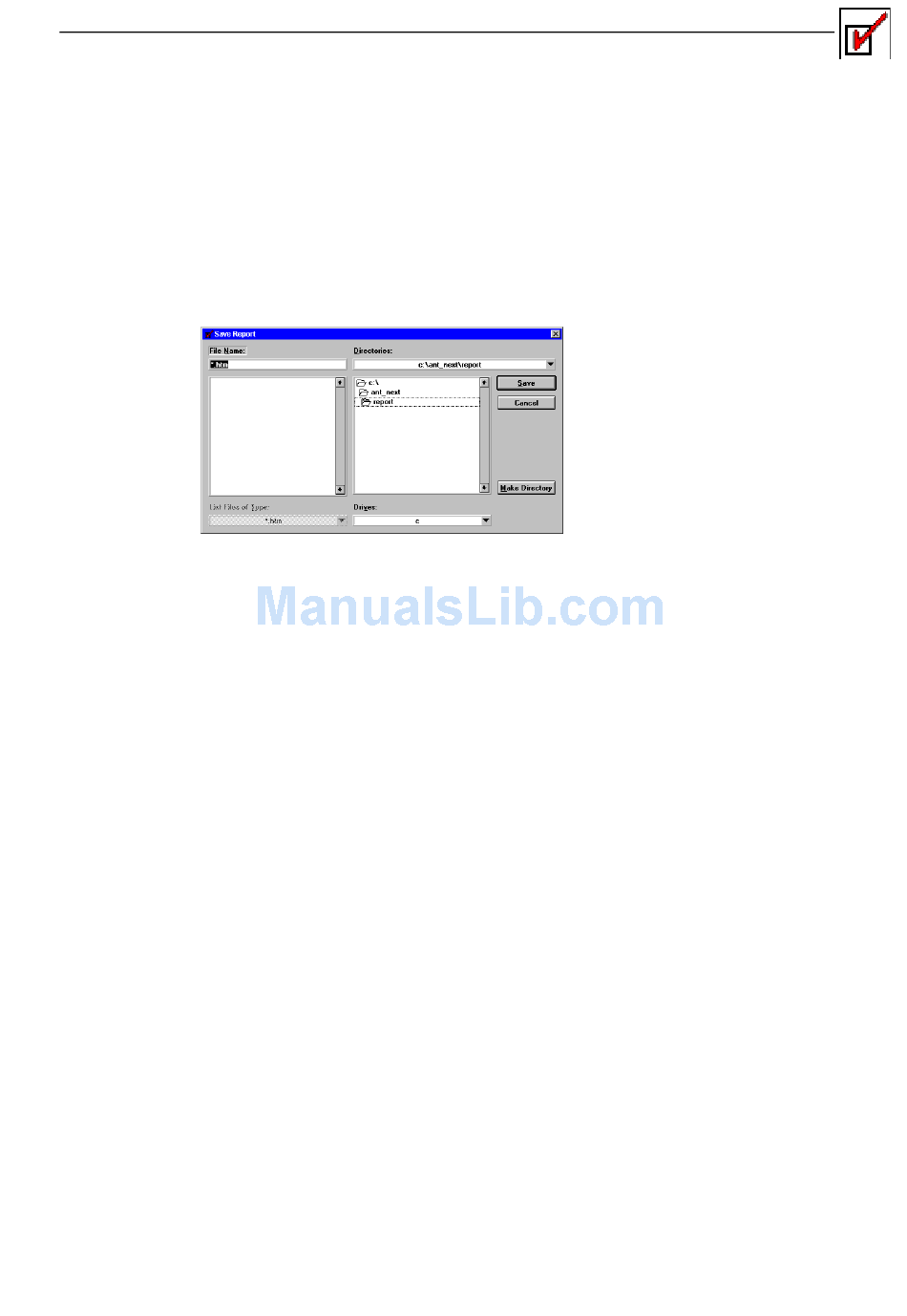

The "Save Report" window opens.
Fig. O-24
2. Select the destination where the report is to be saved under "Directories:" (normally the
"C:\ANT_NEXT\REPORT" directory).
3. Enter a name for the report in the "File Name:" text box (file name extension *.htm).
4. Click on the "Save" button.
The report will be saved under the specified name.
Each time you save a report, four files are generated with the following file name extensions:
• name.htc
• name.htm
• name.htr
• name.hts
The "logo.gif" file for the company logo must also be saved in the same directory.
Note: If you want to copy a report from the ANT-20 to another PC, you must copy all four files
Operating
"Save Report" window
and the "logo.gif" file. If you do not copy all the files, the error message "Broken Links"
will be displayed when you try to view the report.
ANT-20 NEXT
O-19
